Atosa USA SWS1224/304 Wall Mount Shelf, 24"W x 12"D, 304 Stainless Steel, 18 Gauge, NSF

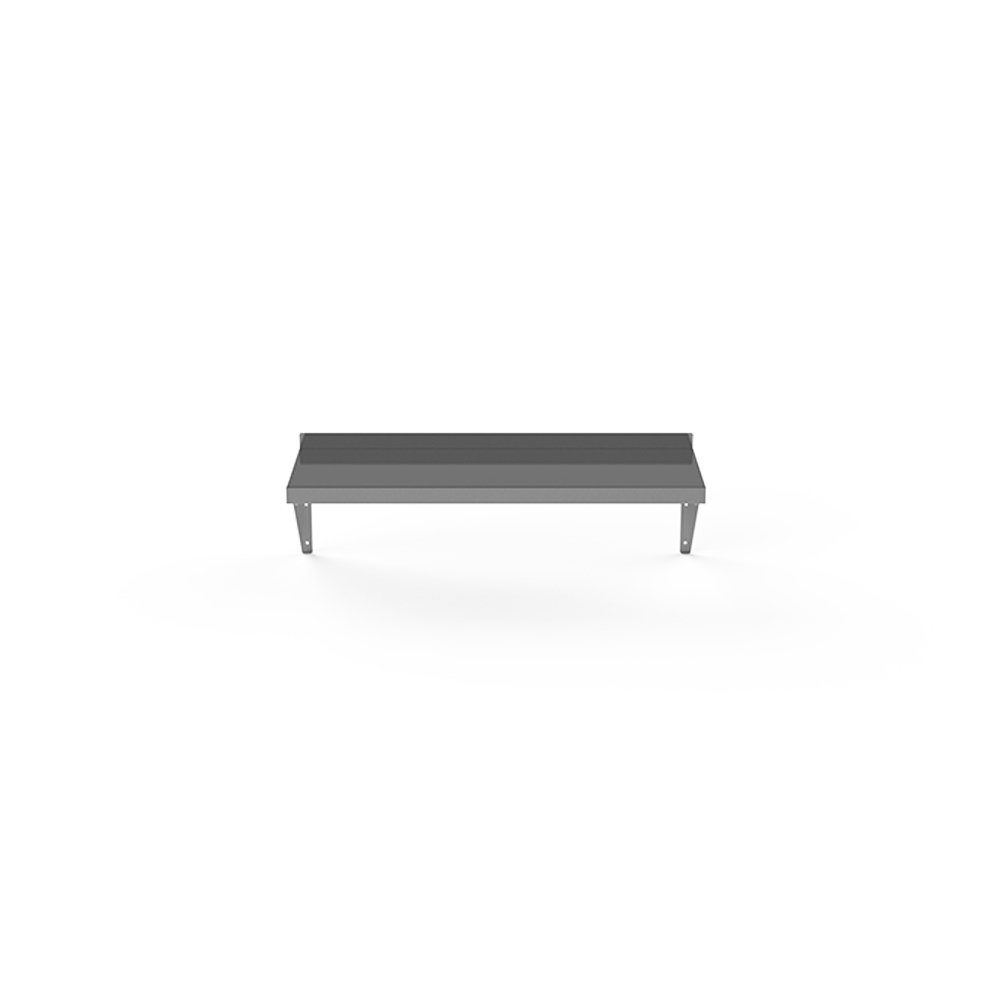

Atosa USA SWS1224/304 — 24" x 12" Wall Mount Shelf in 304 Stainless Steel
The smallest shelf in Atosa's SWS line, sized for the two feet of wall nobody else can use. It is 18-gauge 304 stainless steel on two welded brackets, rated for 180 lb evenly distributed, and only 12 inches deep — enough to hold working stock above a station without crowding the person underneath it.
Key Features of the SWS1224/304
A short shelf is the easiest place to cut corners on material. These are the specifications that make this one worth mounting.
304 Stainless, Not 430
The /304 suffix identifies the alloy. Nickel-bearing 304 resists pitting from salt, acidic food residue and chlorinated sanitizers far better than the 430 used on economy-grade shelving.
18-Gauge Deck
An 18-gauge surface is meaningfully stiffer than the 20- and 22-gauge decks common at this price, and on a short 24-inch span that translates to a shelf that stays dead flat under load.
180 lb Rated Capacity
Rated for 180 lb evenly distributed on its two brackets — a serious working load for a two-foot shelf, and far beyond what spice bins and squeeze bottles will ever put on it.
NSF Listed
Built to NSF sanitation standards with smooth surfaces and no open seams to trap debris — the baseline health inspectors expect on shelving over prep and warewashing areas.
10" Vertical Clearance
The bracket geometry sets the deck 10 inches off the mounting line, leaving usable wall space underneath for sixth pans, bottle racks and small containers.
Light Enough for Any Wall
At 6.39 lb bare, this shelf can go almost anywhere a stud or a properly rated anchor is available — including the awkward corners a longer shelf will never fit.
Mounting note: wall anchors are not supplied, since the correct fastener depends entirely on the wall. Land the brackets in studs or use hardware rated for the substrate and the full 180 lb load — the shelf is only as strong as what it is bolted to.
Ideal Applications
Twenty-four inches is the size that fits the leftovers — the short wall between two pieces of equipment, the corner above a hand sink.
SWS1224/304 Specifications
| Model | SWS1224/304 |
|---|---|
| Brand | Atosa USA |
| Type | Wall mounted shelf |
| Overall Dimensions (W x D x H) | 24" x 12" x 10" |
| Material | 304 stainless steel |
| Gauge | 18 gauge |
| Support Brackets | 2 included |
| Load Capacity | 180 lb, evenly distributed |
| Net Weight | 6.39 lb |
| Gross Weight | 9.47 lb |
| Sanitation | NSF listed |
| Warranty | 90 day workmanship warranty |
Frequently Asked Questions
What does the /304 in the model number mean?
It identifies the stainless alloy. The SWS1224/304 is 304 stainless steel rather than the 430 used on Atosa's standard-grade wall shelves. 304 contains nickel, which makes it noticeably more resistant to pitting and staining from salt, acidic foods and chlorine sanitizers.
How much weight will a 24-inch shelf hold?
Atosa rates the 24" x 12" shelf at 180 pounds evenly distributed across the deck on its two brackets. Concentrating that load at one point, or mounting into a wall that cannot carry it, reduces the safe working limit.
Are mounting screws or wall anchors included?
No. The two brackets are supplied but fasteners are left to the installer, because the right anchor depends on whether you are mounting into wood studs, metal studs, concrete block or a reinforced panel.
How much clearance is there under the shelf?
The bracket sets the deck 10 inches above the mounting line, which leaves room underneath for sixth-size pans, squeeze bottle racks and similar small-format storage.
Is the SWS1224/304 NSF listed?
Yes. It is NSF listed for commercial foodservice use, which is what most health departments require for shelving above prep and warewashing areas.
What other sizes are available in this series?
The SWS wall shelf line runs 24", 30", 36", 48", 60", 72", 84", 96", 108" and 120" wide, in 12", 15" and 18" depths. Models 72" and wider ship with three brackets rather than two.
