Atosa USA YRM0450A-161 Modular Ice Machine, 450 lb/24 hr, Half Dice Cube, 30"W, Air Cooled, R290, ENERGY STAR
Atosa YRM0450A-161 Modular Ice Machine — 450 lb/24 hr, Half Dice Cube
The YRM0450A-161 is the entry point in Atosa's 30" modular ice machine line and the only one that runs on standard 115V power — up to 450 lb of half-dice cube ice per 24 hours from a machine that plugs into a NEMA 5-15 outlet. At 22" tall it is also the shortest head in the family, leaving the most room above a storage bin. Stainless exterior, screwless front panel, removable air filter and a 3M water filter system included standard.
How It Runs
115V on a Standard Outlet
11.9 A at 1150 W on 115V with a NEMA 5-15P plug — no dedicated 208-230V circuit to run, which makes this the simplest install in the series.
450 lb of Half Dice Ice a Day
Half dice cubes at 3/8" x 7/8" x 7/8" pack tightly in a glass and chill fast — the all-purpose size for beverage service and food display.
Digital Control
Digital control of the harvest cycle keeps production consistent and makes diagnostics straightforward for a service tech.
Air Cooled, Removable Filter
The air-cooled condenser uses no water for cooling, and its air filter pulls out for cleaning — the maintenance step that most affects daily ice output.
Screwless Front Panel

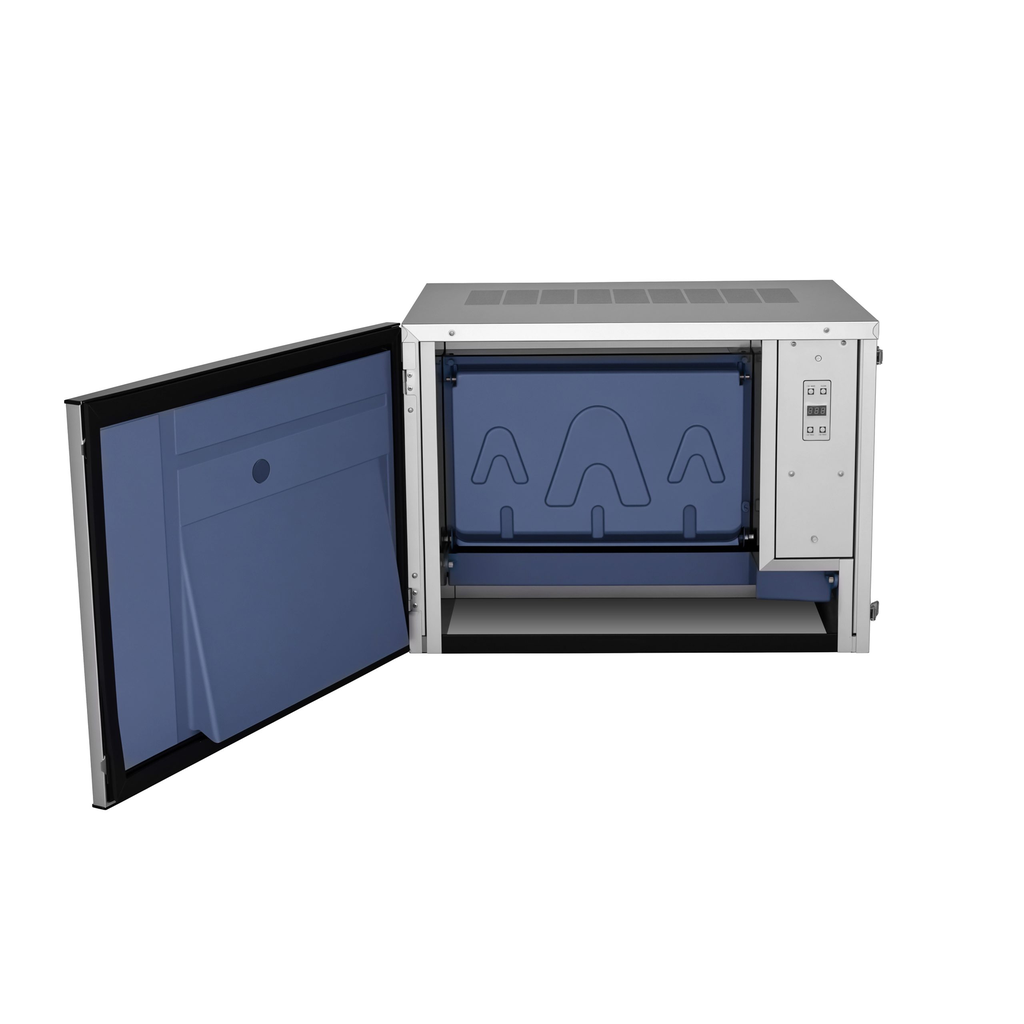

The stainless front panel comes off without tools, so the evaporator area and air filter are accessible in minutes rather than requiring a service call.
3M Water Filter Included
The 3M water filter system and cartridge ship with the machine and should be installed at start-up. Atosa recommends replacing the cartridge every 6 months, depending on water quality.
Where It Works
Specifications
| Model | YRM0450A-161 |
|---|---|
| Type | Modular cube-style ice machine head, air cooled, self-contained |
| Ice Production | 450 lb per 24 hours |
| Ice Type | 1/2 (half dice) cube, 3/8" x 7/8" x 7/8" |
| Condenser | Air cooled, removable air filter |
| Refrigerant | R290 |
| Electrical | 115 V / 60 Hz / 1 phase |
| Rated Current | 11.9 A |
| Power | 1150 W |
| Plug | NEMA 5-15P |
| Exterior Dimensions (W x D x H) | 30-3/4" x 24-1/4" x 22" |
| Net Weight | 146 lb |
| Control | Digital |
| Exterior | Stainless steel, screwless front panel |
| Included | 3M water filter system, inlet hose, drain hose, ice scoop |
| Optional Accessory | Bin thermostat kit, part #BYR0400217031 |
| Plumbing | Requires use of a drain |
| Certifications | NSF, ETL, ETL-Sanitation, cETLus, ENERGY STAR |
| Related Models | YRM0600A-261 (600 lb), YRM0800A-261 (800 lb), YRM1000A-261 (1000 lb) |
| Warranty | 2 years parts and labor; 5 years compressor and evaporator |
2-Year Parts & Labor / 5-Year Compressor & Evaporator
Atosa USA covers the YRM0450A-161 with a 2 year parts and labor warranty plus 5 years on the compressor and evaporator. Maintenance and cleaning are not covered under warranty.
Frequently Asked Questions
How much ice does the Atosa YRM0450A-161 make?
Up to 450 lb of half dice cube ice per 24 hours.
Does the YRM0450A-161 need a special electrical circuit?
No. It runs on standard 115V, 60 Hz single phase power at 11.9 amps with a NEMA 5-15P plug — the only head in the 30" series that does.
Is a storage bin included?
No. It is a modular ice-making head and needs a separate storage bin sized to your usage, plus a drain connection.
What size ice does it produce?
1/2 (half dice) cubes measuring 3/8" x 7/8" x 7/8".
What comes in the box?
The 3M water filter system, an inlet hose, a drain hose and an ice scoop. A bin thermostat kit (BYR0400217031) is available separately.
What warranty covers the YRM0450A-161?
2 years parts and labor plus 5 years on the compressor and evaporator. Maintenance and cleaning are not covered.
| Warranty Option | 2-Year Parts & Labor with 5-year parts warranty on Compressor or 3-Year Parts & Labor with 5-year parts warranty on Compressor or 4-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | YRM0450A-161 |
| Brand | Atosa USA |
| Weight | 185.00 lbs |
| Dimensions (HxWxD) | 29.00 x 28.00 x 34.00 inches |
| Height | 29.00 |
| Width | 28.00 |
| Depth | 34.00 |
| Refrigeration | self-contained refrigeration |
| Condenser Type | air-cooled |
| Ice Type | half size / half dice cubes |
| Production per 24 hr | 401 - 500 lb = 183 - 227 kg |
| Width (side - side) | 30 - 39" wide |
| Energy Efficiency | ENERGY STAR® |
|
