Atosa USA AUR24SD Undercounter Refrigerator, 1 Solid Door, 23-7/8"W, 3.7 cu. ft., Stainless Steel, R290

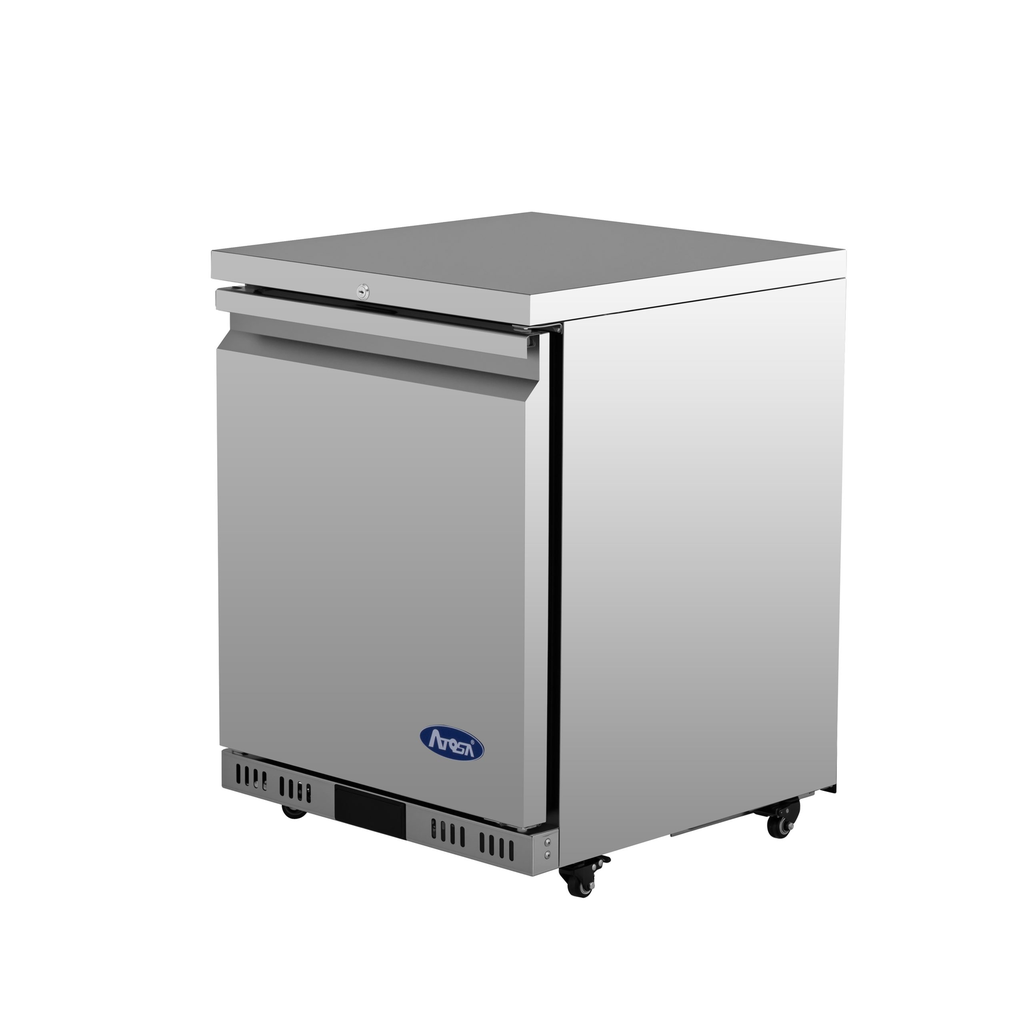

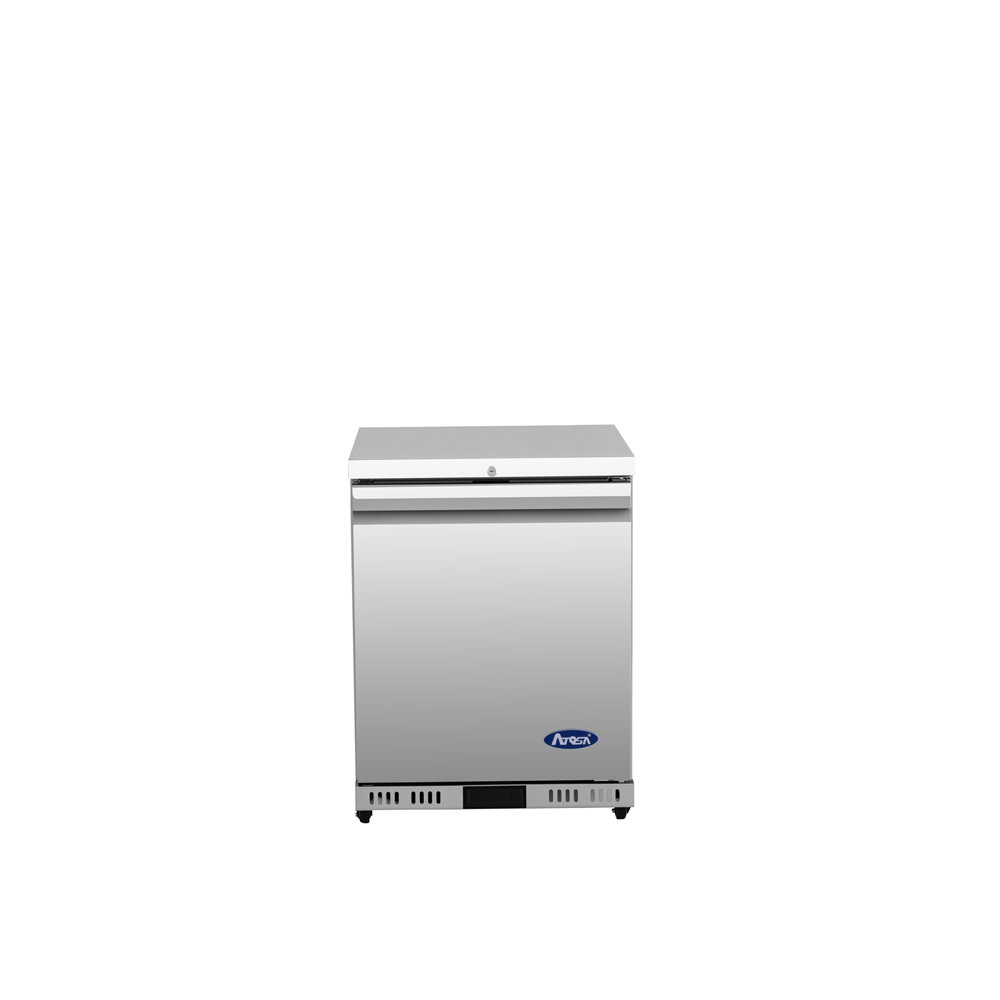

Atosa USA AUR24SD — 24" Undercounter Refrigerator, 1 Door
The AUR24SD is the smallest undercounter refrigerator in Atosa's AUR line: 3.7 cu. ft. behind a single field reversible door in a cabinet just 23-7/8" wide and 26" deep, holding 35°F to 38°F. A 1/7 HP R290 system runs under an electronic controller, two shelves come pre-installed, and the door is self-closing with a magnetic gasket.
Key Features of the AUR24SD
At 23-7/8" wide and 26" deep this is a cabinet bought for a gap in the line, so what matters is that nothing about it is cut down except the footprint.
35°F to 38°F on R290
An environmentally friendly R290 system on a 1/7 HP compressor holds the cabinet in the 35°F to 38°F band Atosa recommends for food preservation.
Field Reversible, Self-Closing Door
The single door reverses on site so the swing suits the aisle, and it self-closes with a stay open feature for loading with both hands.
Magnetic Door Gaskets
Magnetic gaskets are standard for a positive seal and lift out for cleaning, which matters on a cabinet that is opened all through service.
Electronic Temperature Controller
The set point is read and adjusted directly on an electronic controller instead of being estimated from a dial, so drift is caught early.

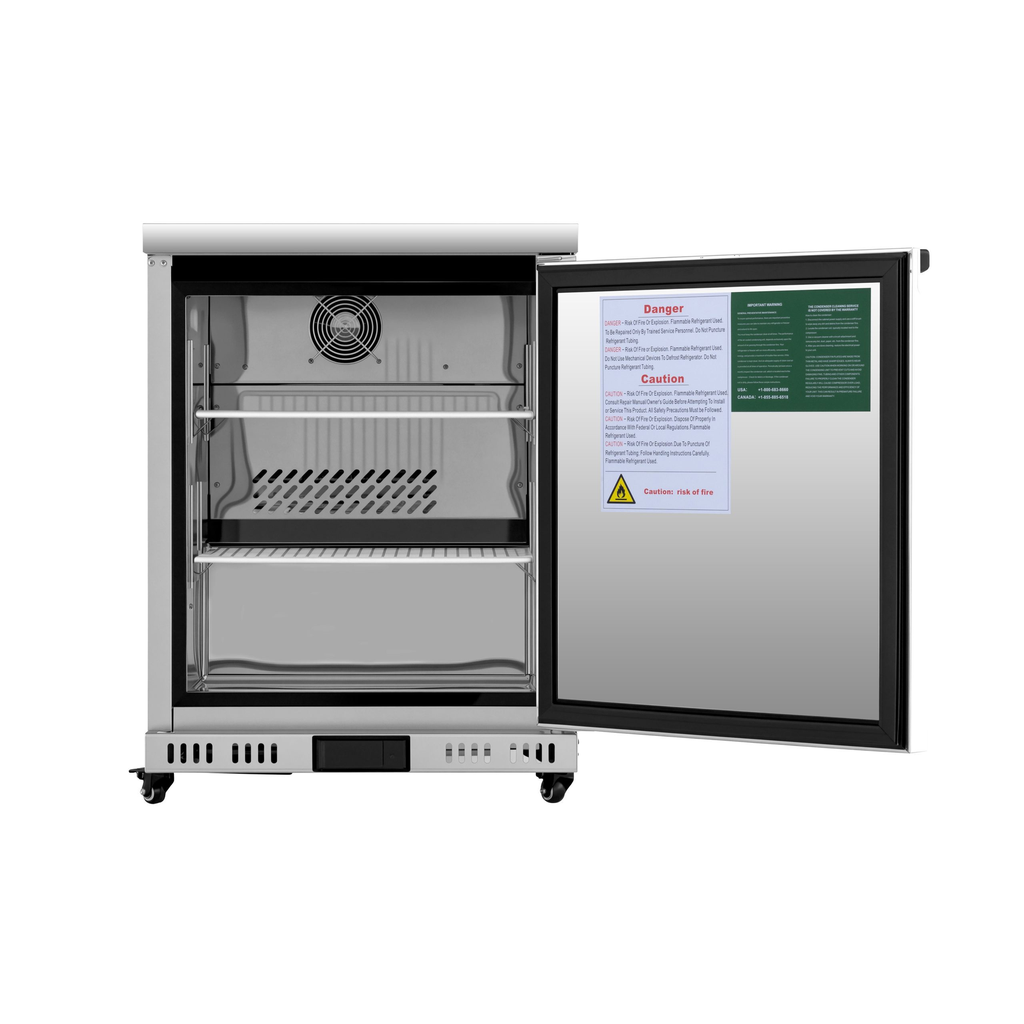

Two Epoxy Coated Shelves
Two shelves come pre-installed, so the cabinet is set up for organised storage rather than one deep well to dig through.
Drawer Cartridges Available
Field installable drawer cartridges are an Atosa option, so the same cabinet can be converted to drawer storage for a pan-based station.
Placement note: leave the unit room to breathe and clean the condenser frequently so it keeps drawing fresh air. Atosa recommends a set point between 35°F and 38°F. The refrigerator plugs into a standard NEMA 5-15P outlet at 115V, 15A and draws 2.4 A.
Ideal Applications
A 24" cabinet is what fits when the space left in the line is measured in inches rather than feet.
AUR24SD Specifications
| Model | AUR24SD |
|---|---|
| Brand | Atosa USA |
| Type | Undercounter refrigerator |
| Doors | 1, field reversible, self-closing with stay open feature |
| Capacity | 3.7 cu. ft. |
| Shelves | 2, pre-installed |
| Temperature Range | 35°F - 38°F |
| Refrigerant | R290 |
| Horsepower | 1/7 HP |
| Voltage | 115V / 60 Hz / 1 phase |
| Current | 2.4 A |
| Plug Type | NEMA 5-15P (15A / 125V) |
| Controller | Electronic temperature controller |
| Gaskets | Magnetic, standard |
| Construction | Stainless steel exterior and interior |
| Casters | 2" heavy duty swivel plate, pre-installed |
| Exterior Dimensions (W x D x H) | 23-7/8" x 26" x 32-1/2" |
| Net Weight | 108 lb |
| Gross Weight | 138 lb |
| Related Models | AUR27SD (1 door, 6.4 cu ft), AUR36SD (2 doors, 8.6 cu ft), AUR48SD (2 doors, 11.8 cu ft), AUR60SD (2 doors, 15 cu ft), AUR72SD (3 doors, 18.2 cu ft) |
| Warranty | 3 year parts and labor; 5 year compressor part |
Optional Accessories
Drawer cartridges convert the cabinet to pan drawers in the field, and caster height changes the overall height of the unit.
| Drawer Cartridges | Field installable, in place of shelves |
|---|---|
| R06001000228 / R06001000229 | 1.2" swivel plate casters (with / without brake) — 31-1/4" overall height |
| R06001000063 | 1.5" swivel plate caster (with brake) — 31-7/8" overall height |
| B0604434 / B0604433 | 2" heavy duty swivel plate casters (with / without brake) — 32-3/8" overall height, standard |
| B0604421 / B0604413 | 4" swivel stem casters (with / without brake) — 34-3/8" overall height |
| B0604007 / B0604006 | 5" swivel stem casters (with / without brake) — 35-1/4" overall height |
| Extended Warranty | Available up to 5 years |
Frequently Asked Questions
How much does the AUR24SD hold?
3.7 cu. ft. behind a single door, with two shelves pre-installed.
What temperature does the AUR24SD hold?
Between 35°F and 38°F, the range Atosa recommends for food preservation, managed by an electronic temperature controller.
Can the door be reversed?
Yes. The door is field reversible, and it is self-closing with a stay open feature and a magnetic gasket.
What are the electrical requirements?
115V, 60 Hz, single phase, drawing 2.4 A through a NEMA 5-15P plug rated 15A / 125V. The compressor is 1/7 HP on R290 refrigerant.
Can the caster height be changed?
Yes. It ships on 2" heavy duty swivel plate casters at 32-3/8" overall height. Low profile 1.2" and 1.5" plate casters drop it to 31-1/4" or 31-7/8", and 4" or 5" swivel stem casters raise it to 34-3/8" or 35-1/4".
How does the AUR24SD compare to the other AUR undercounter refrigerators?
The AUR24SD is the compact model at 23-7/8" wide by 26" deep with 1 door and 3.7 cu ft. The rest are 30" deep: AUR27SD 27-1/2" with 1 door and 6.4 cu ft, AUR36SD 36-3/8" with 2 doors and 8.6 cu ft, AUR48SD 48-1/4" with 2 doors and 11.8 cu ft, AUR60SD 60-1/4" with 2 doors and 15 cu ft, and AUR72SD 72-5/8" with 3 doors and 18.2 cu ft.
| Warranty Option | 3-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor or 7-Year Extended Warranty (Atosa Spec Series) or 8-Year Extended Warranty (Atosa Spec Series) |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | AUR24SD |
| Brand | Atosa USA |
| Weight | 168.00 lbs |
| Dimensions (HxWxD) | 32.50 x 24.00 x 26.00 inches |
| Height | 32.50 |
| Width | 24.00 |
| Depth | 26.00 |
| Size | 1 section |
| Door Type | solid |
| Exterior Finish | stainless steel & galvanized steel |
| Width | 24" - 35" |
| Refrigeration | self-contained, rear mounted |
| Access Type | doors |
| Compressor HP | 1/6 HP |
|
