Atosa USA YRM0800A-261 Modular Ice Machine, 800 lb/24 hr, Half Dice Cube, 30"W, Air Cooled, ENERGY STAR

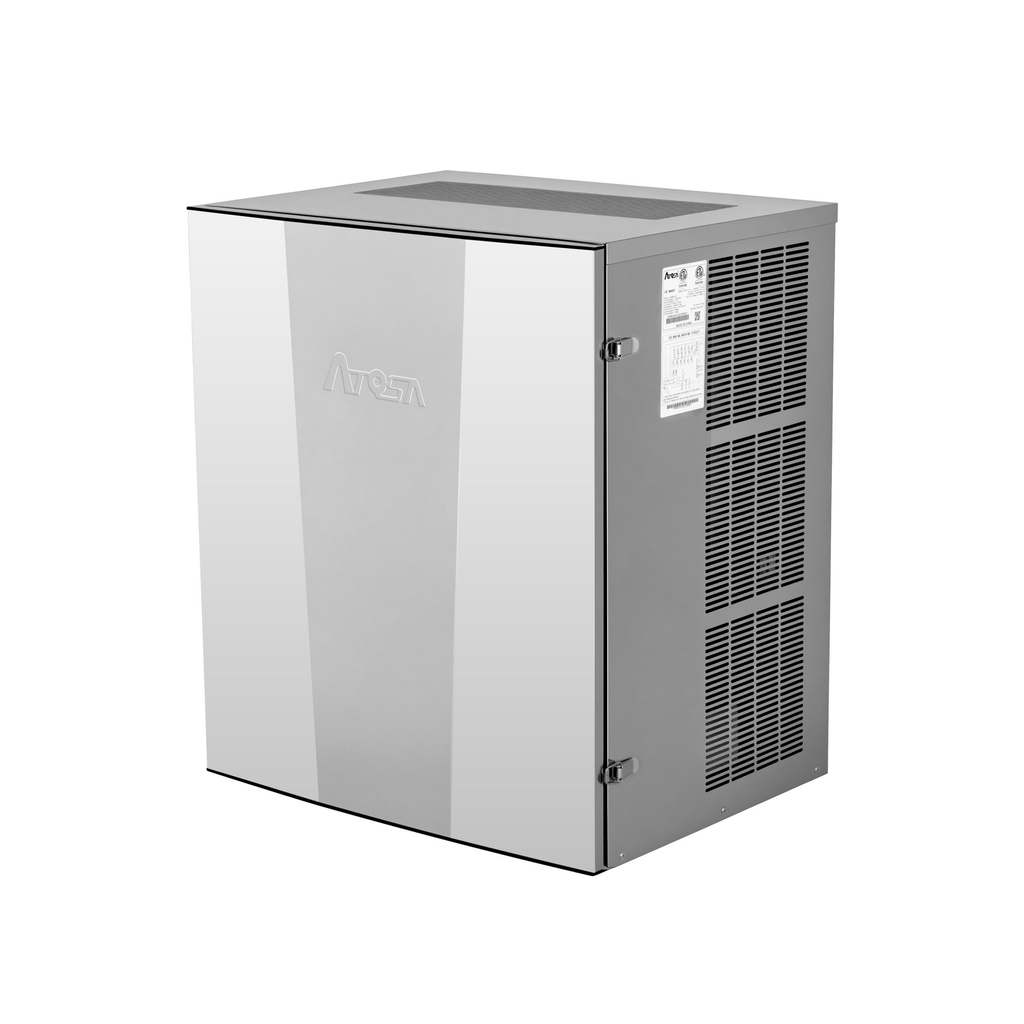

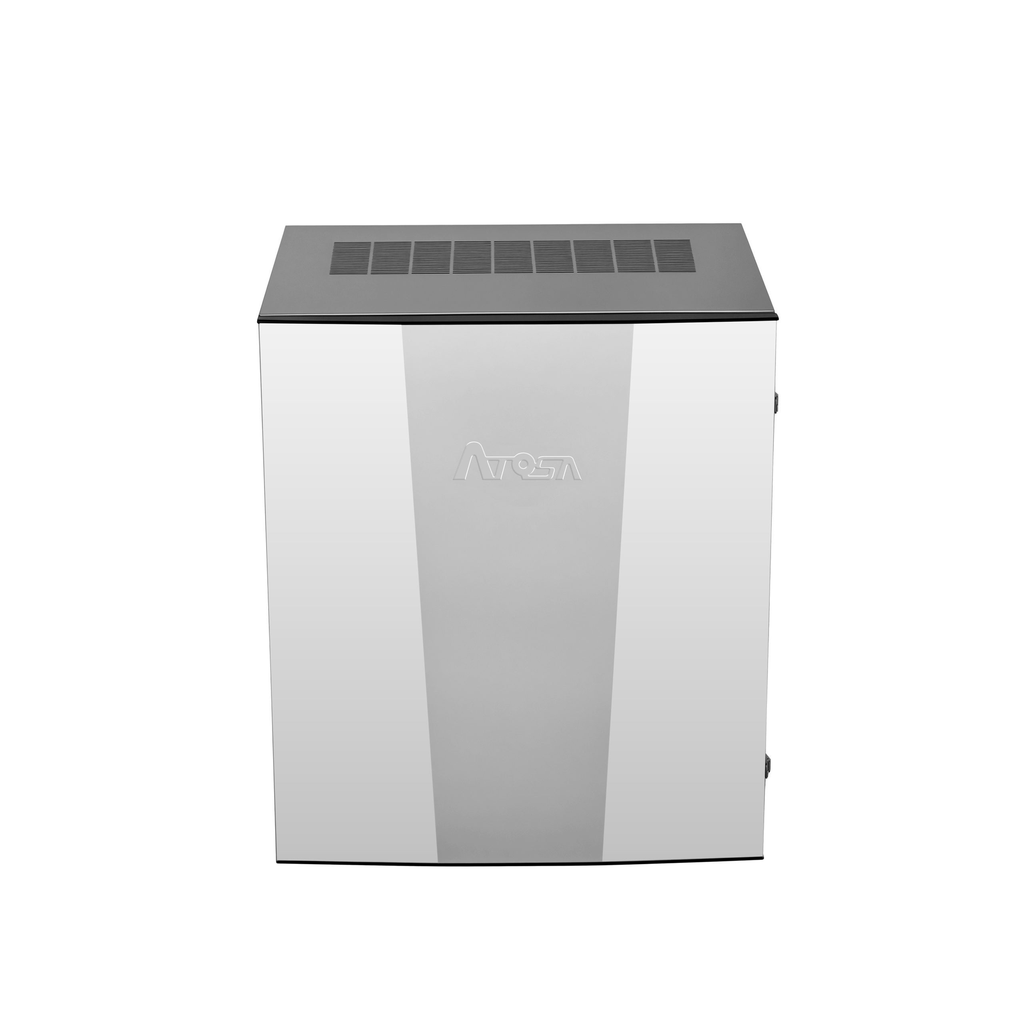

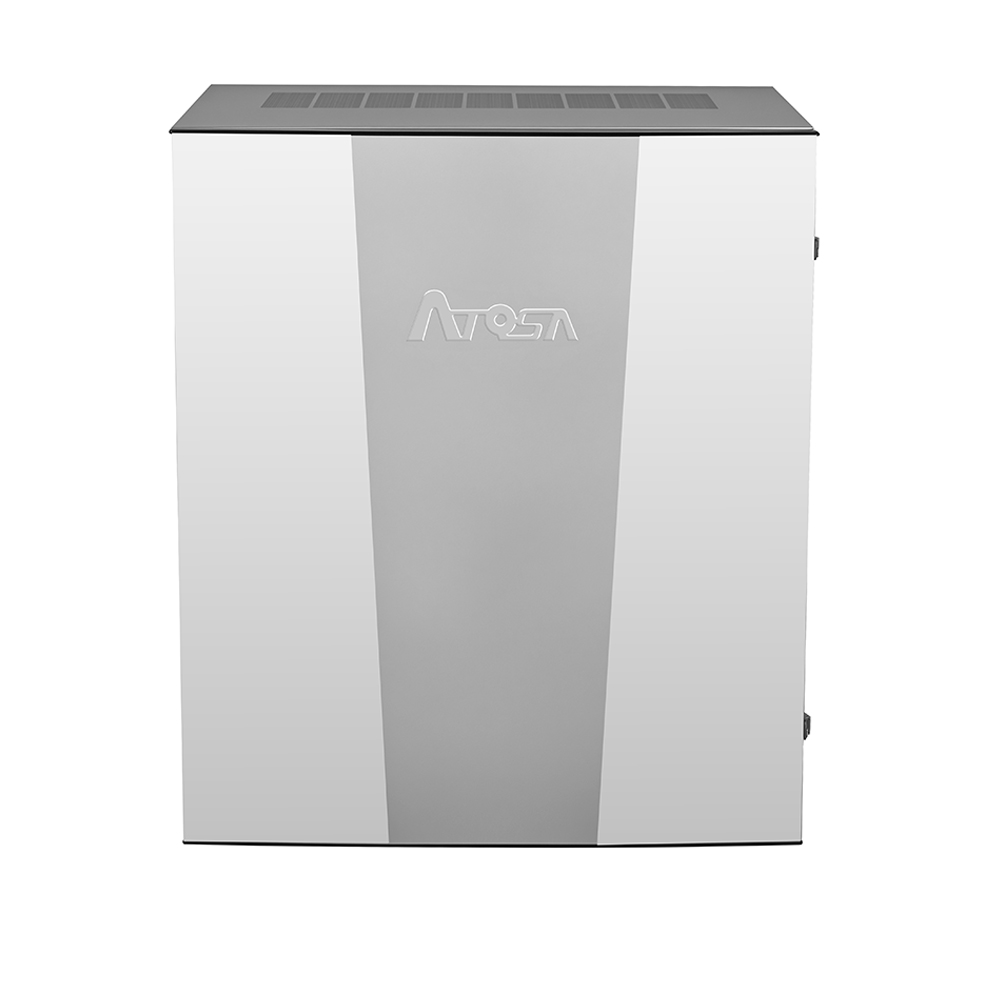

Atosa YRM0800A-261 Modular Ice Machine — 800 lb/24 hr, Half Dice Cube
The YRM0800A-261 is the 800 lb model in Atosa's 30" modular ice machine line — an air-cooled, self-contained head that produces up to 800 lb of half-dice cube ice per 24 hours and sits on a storage bin of your choosing. The cabinet is stainless steel with a screwless front panel and a removable air filter, and a 3M water filter system is included standard so the machine starts on treated water from day one.
How It Runs
800 lb of Half Dice Ice a Day
Half dice cubes measure 3/8" x 7/8" x 7/8" — the size that packs well in a glass, chills fast and works in both beverage service and food display.
Digital Control
A digital control board manages the harvest cycle and makes diagnostics straightforward for a service tech instead of guesswork on a mechanical timer.
Air Cooled, Removable Filter
The air-cooled condenser needs no water for cooling, and its air filter pulls out for cleaning — the single maintenance step that most affects ice output.
Screwless Front Panel
The stainless front panel comes off without tools, so cleaning the evaporator area and air filter takes minutes rather than a service call.
3M Water Filter Included
The 3M water filter system and cartridge ship with the machine and should be installed at start-up. Atosa recommends replacing the cartridge every 6 months, depending on water quality.
NSF and ETL Listed
NSF and ETL listed, ETL-Sanitation and cETLus certified, and ENERGY STAR qualified — so it clears both health inspection and energy-rebate requirements.
Where It Works
Specifications
| Model | YRM0800A-261 |
|---|---|
| Type | Modular cube-style ice machine head, air cooled, self-contained |
| Ice Production | 800 lb per 24 hours |
| Ice Type | 1/2 (half dice) cube, 3/8" x 7/8" x 7/8" |
| Condenser | Air cooled, removable air filter |
| Refrigerant | R404A |
| Electrical | 208-230 V / 60 Hz / 1 phase |
| Rated Current | 9.1 A |
| Power | 2000 W |
| Plug | NEMA 6-20P |
| Exterior Dimensions (W x D x H) | 30-3/4" x 24-1/4" x 31-3/4" |
| Net Weight | 194 lb |
| Control | Digital |
| Exterior | Stainless steel, screwless front panel |
| Included | 3M water filter system, inlet hose, drain hose, ice scoop |
| Optional Accessory | Bin thermostat kit, part #BYR0400217031 |
| Plumbing | Requires use of a drain |
| Certifications | NSF, ETL, ETL-Sanitation, cETLus, ENERGY STAR |
| Related Models | YRM0450A-161 (450 lb), YRM0600A-261 (600 lb), YRM1000A-261 (1000 lb) |
| Warranty | 2 years parts and labor; 5 years compressor and evaporator |
2-Year Parts & Labor / 5-Year Compressor & Evaporator
Atosa USA covers the YRM0800A-261 with a 2 year parts and labor warranty plus 5 years on the compressor and evaporator. Maintenance and cleaning are not covered under warranty.
Frequently Asked Questions
How much ice does the Atosa YRM0800A-261 make?
Up to 800 lb of half dice cube ice per 24 hours.
Does the YRM0800A-261 come with a storage bin?
No. It is a modular ice-making head and needs a separate storage bin sized to your usage.
What size ice does this machine produce?
1/2 (half dice) cubes measuring 3/8" x 7/8" x 7/8".
What electrical connection does the YRM0800A-261 need?
208-230V, 60 Hz, single phase, 9.1 amps, 2000 W, on a NEMA 6-20P plug.
What comes in the box?
The 3M water filter system, an inlet hose, a drain hose and an ice scoop. A bin thermostat kit (BYR0400217031) is available separately.
What warranty covers the YRM0800A-261?
2 years parts and labor plus 5 years on the compressor and evaporator. Maintenance and cleaning are not covered.
| Warranty Option | 2-Year Parts & Labor with 5-year parts warranty on Compressor or 3-Year Parts & Labor with 5-year parts warranty on Compressor or 4-Year Parts & Labor with 5-year parts warranty on Compressor or 5-Year Parts & Labor with 5-year parts warranty on Compressor |
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | YRM0800A-261 |
| Brand | Atosa USA |
| Weight | 231.00 lbs |
| Dimensions (HxWxD) | 31.75 x 30.75 x 24.25 inches |
| Height | 31.75 |
| Width | 30.75 |
| Depth | 24.25 |
| Ice Type | half size / half dice cubes |
| Energy Efficiency | ENERGY STAR® |
| Width (side - side) | 30 - 39" wide |
| Condenser Type | air-cooled |
| Refrigeration | self-contained refrigeration |
| Production per 24 hr | 801 - 900 lb = 364 - 408 kg |
|
