Blue Air BAPP67-D2R-HC 67" Pizza Prep Table with Right-Side Drawers, Two-Section
Blue Air BAPP67-D2R-HC — 67" Two-Section Pizza Prep Table, Drawers to the Right

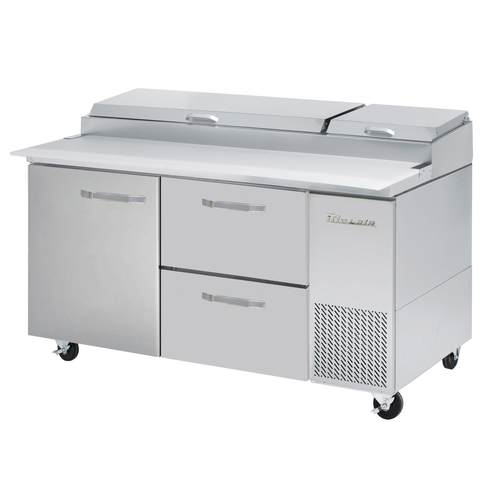

Blue Air Commercial Refrigeration builds the BAPP67-D2R-HC as the right-hand version of its 67" two-section pizza prep table: the drawer bank sits on the right and the shelved swing door on the left. Under the nine-pan drop-in rail there is 20.2 cu. ft. of 33 °F to 39 °F storage, cooled by a 3/8 HP self-contained system charged with R-290 hydrocarbon refrigerant. Handedness is the whole point of this SKU — order it when your make line finishes on the right and the operator's dominant hand should land on a drawer, not a door.
Key Features of the BAPP67-D2R-HC
Same 67" shell, mirrored layout — here is what the right-hand drawer arrangement buys you day to day.
Right-Hand Drawer Bank
Two drawers occupy the right-hand section and take 4" or 6" deep pans, so a cook finishing a build on the right reaches down rather than across. Drawers also open in half the swing arc of a door, which matters when a wall or a second cabinet sits close to that end of the run.
Left Section Behind a Full-Height Door
The left compartment is a single self-closing door section fitted with two epoxy-coated wire shelves whose height you can move as case sizes change. Metal Ni-Cr plated handles and an easily replaced magnetic gasket are standard on that door.
Nine 1/3 Pans Under an Insulated Cover
The refrigerated rail holds nine 1/3 size pans, sized for either 4" or 6" inserts, and pans are supplied separately. The insulated cover carries a stainless steel divider so drips from the rail never reach the food stored below it.
Even Cold Across the Drop-In Well
Fans force cold air into the enclosed drop-in area and an air guard on the rear wall directs circulation, which is what keeps the ninth pan as cold as the first through a dinner rush. The cabinet itself holds 33 °F to 39 °F.
R-290 System, Epoxy-Coated Evaporator
The self-contained 3/8 HP circuit uses R-290, a hydrocarbon refrigerant that does not deplete the ozone layer, and the evaporator is epoxy coated to resist corrosion. High-density polyurethane foamed in place gives the cabinet its insulation without HFC blowing agents.
Choosing between D2R and D2L: the BAPP67-D2R-HC and the BAPP67-D2L-HC are mechanically identical 67" cabinets — capacity, pan count, horsepower and weight all match. Only the side the drawers land on differs, so specify by where your operator stands and which way the plated pizza travels off the line.
Ideal Applications
Right-hand drawer placement suits stations where the finished product exits to the right toward the oven or the pass.
BAPP67-D2R-HC Specifications
| Model | BAPP67-D2R-HC |
|---|---|
| Configuration | Two-section pizza prep table, (2) drawers right, (1) door left |
| Refrigerated Capacity | 20.2 cu. ft. |
| Top Rail | (9) 1/3 size pans, 4" or 6" deep; pans sold separately |
| Pan Cover | Insulated, with stainless steel divider |
| Shelves | (2) epoxy-coated wire, adjustable height |
| Temperature Range | 33 °F – 39 °F |
| Exterior L × D × H | 67" × 32-3/4" × 37" (1702 × 831 × 939 mm) |
| Depth Note | Add 3-3/4" for the cutting board |
| Height Note | Add 5" (127 mm) for the casters |
| Cutting Board | 19" deep × 1/2" thick, on a side rail bracket |
| Compressor Location | Side mounted, front breathing |
| Maintenance | Easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 3/8 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 3.5 amps |
| Cord & Plug | 9.8 ft (3 m) three-wire flexible cord, NEMA 5-15P |
| Insulation | High-density foamed-in-place polyurethane |
| Evaporator | Epoxy coated |
| Cabinet | Stainless steel interior and exterior; galvanized steel back and bottom |
| Casters | (4) 4" swivel, front two with brakes |
| Net Weight | 390 lbs (176 kg) |
| Shipping Weight | 419 lbs (190 kg) |
| Accessories | 2.5" casters, 6" adjustable legs, extra shelves |
| Listings | cUL, UL, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What is the difference between the BAPP67-D2R-HC and the D2L model?
Only the layout. The D2R places its two drawers in the right section and the hinged door in the left; the D2L reverses that. Dimensions, the 20.2 cu. ft. capacity, the nine-pan rail, the 3/8 HP compressor and the 390 lb net weight are the same on both.
Does the compressor need clearance behind the cabinet?
No. The BAPP67-D2R-HC uses a front-breathing, side-mounted compressor, so it draws and discharges air at the front of the unit and can be installed in a narrow space or flush to a rear wall. The condensing unit slides out for cleaning without moving the cabinet.
How deep are the pans this rail will accept?
The drop-in well is built for standard 4" or 6" deep 1/3 size pans, nine across. Blue Air does not include pans with the unit, so budget for a set of inserts and choose the depth by how fast each topping turns over.
Can the shelves in the door section be moved?
Yes. Both wire shelves are epoxy coated and sit on adjustable supports, so you can raise or drop them to clear a tall sauce can or a stack of dough boxes. Additional shelves are available as an accessory if you want a third level.
How is the BAPP67-D2R-HC powered and moved?
It plugs into a standard 115 V / 60 Hz single-phase outlet and pulls 3.5 amps through a NEMA 5-15P plug on a 9.8 ft (3 m) cord. Four 4" swivel casters, the front pair braked, come standard, and 6" adjustable legs or 2.5" casters can be substituted.
