Blue Air BAPP67-D4-HC 67" Refrigerated Pizza Prep Table with 4 Drawers

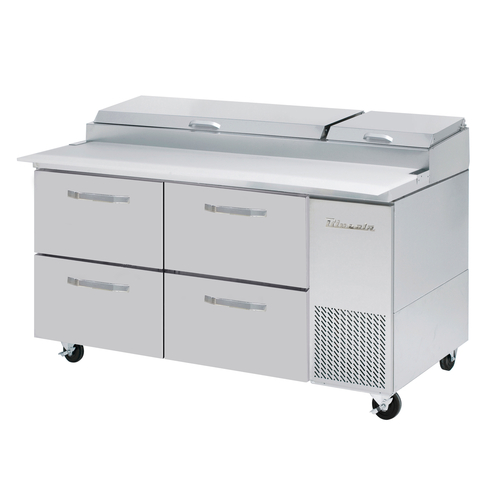

Blue Air BAPP67-D4-HC — 67" Pizza Prep Table with a Four-Drawer Base
The BAPP67-D4-HC is the all-drawer build of Blue Air Commercial Refrigeration's 67" pizza prep table: four drawers fill both sections and there is no swing door anywhere on the cabinet. Storage still totals 20.2 cu. ft. under a nine-pan rail, but every item now lives in a tray a cook can pull straight out — dough on one level, cheese and proteins on the next. It is the configuration to buy when your prep is portioned rather than cased, and the extra drawer hardware is why this model weighs 412 lbs against 390 for the drawer-and-door versions.
Key Features of the BAPP67-D4-HC
Dropping the doors changes how the whole cabinet is loaded, so most of what follows is about access rather than airflow.
Four Drawers, Zero Doors
Both sections of the BAPP67-D4-HC are drawered — two per section, four in total, each taking standard 4" or 6" deep pans. Because nothing hinges, no part of the cabinet reaches into the aisle when it is opened, and the crew never holds a door while lifting a pan out with the other hand.
Nine-Pan Topping Rail
The refrigerated well across the top carries nine 1/3 size pans, the same rail width as the drawer-and-door versions of this 67" chassis. Pans are ordered separately so you can mix 4" inserts for fast movers with 6" inserts for cheese and sauce.
33 °F to 39 °F, End to End
Fans drive cold air into the enclosed drop-in section and an air guard on the rear wall spreads it evenly, holding the whole cabinet between 33 °F and 39 °F. The drawers sit inside that same insulated envelope rather than in a separate compartment.
Insulated Cover and 19" Board
An insulated pan cover with a stainless steel divider closes over the rail and stops spillage from working down into the drawers. A side rail bracket carries the included 19" deep, 1/2" thick cutting board, deep enough to dress a large pie without moving it.
412 lbs on Four Swivel Casters
Four 4" diameter swivel casters, the front pair braked, are standard on the 412 lb cabinet, and Blue Air offers 2.5" casters or 6" adjustable legs if the counter has to sit lower or stay fixed. Shipping weight is 441 lbs.
R-290 and Polyurethane Insulation
The 3/8 HP self-contained circuit is charged with R-290 hydrocarbon refrigerant, which causes no ozone depletion, and the epoxy-coated evaporator resists corrosion. High-density polyurethane is foamed in place around the cabinet for insulation.
Service access: the compressor is side mounted and front breathing, so the BAPP67-D4-HC works in narrow spaces and does not have to be pulled forward for routine work. The easy-sliding condensing unit comes out from the front for coil cleaning while the table stays in the line.
Ideal Applications
An all-drawer base pays off wherever product arrives portioned rather than in cases.

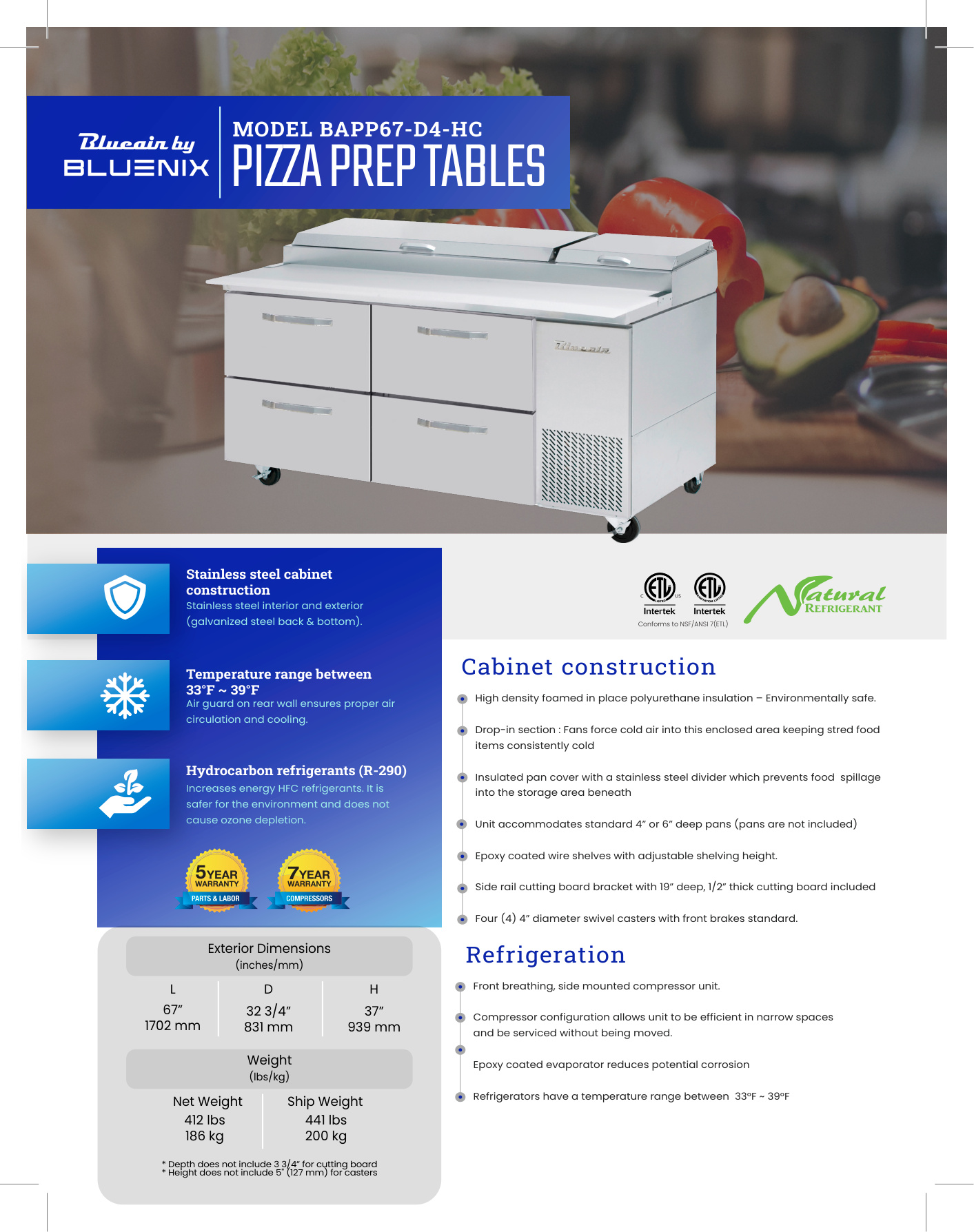

BAPP67-D4-HC Specifications
| Model | BAPP67-D4-HC |
|---|---|
| Type | Pizza prep table, two-section, four-drawer base |
| Refrigerated Capacity | 20.2 cu. ft. |
| Drawers | (4), for 4" or 6" deep pans |
| Shelves | None — all-drawer configuration |
| Top Rail | (9) 1/3 size pans; pans not included |
| Pan Cover | Insulated, with stainless steel divider |
| Temperature Range | 33 °F – 39 °F |
| Exterior Length | 67" (1702 mm) |
| Exterior Depth | 32-3/4" (831 mm); add 3-3/4" for the cutting board |
| Exterior Height | 37" (939 mm); add 5" (127 mm) for the casters |
| Cutting Board | 19" deep × 1/2" thick, included with side rail bracket |
| Refrigeration | Self-contained, side-mounted, front-breathing compressor |
| Serviceability | Easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 3/8 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 3.5 amps |
| Cord & Plug | 9.8 ft (3 m) three-wire flexible cord, NEMA 5-15P |
| Insulation | High-density foamed-in-place polyurethane |
| Evaporator | Epoxy coated |
| Cabinet | Stainless steel interior and exterior, galvanized steel back and bottom |
| Casters | (4) 4" swivel, front two braked |
| Net Weight | 412 lbs (186 kg) |
| Shipping Weight | 441 lbs (200 kg) |
| Options | 2.5" casters, 6" adjustable legs |
| Certifications | cUL, UL, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
Does the BAPP67-D4-HC have any shelves?
No. This model is published with no shelving because all four drawers replace the shelved door compartments found on the D2L and D2R versions. If you need shelf storage in a 67" cabinet, choose one of those drawer-and-door layouts instead.
Why is this model heavier than the two-drawer versions?
Four sets of drawer slides, frames and fronts weigh more than a single hinged door and a pair of wire shelves. The BAPP67-D4-HC lists at 412 lbs net and 441 lbs shipping, compared with 390 lbs net on the 67" drawer-and-door models.
How many pans fit in each drawer?
Each of the four drawers is built around standard food pans in 4" or 6" depths, and pans are not supplied with the unit. Choosing a single depth across all four keeps par counts simple; mixing depths lets you fit taller dough boxes in the lower positions.
Can this pizza prep table go against a wall?
Yes. Because the condensing unit is side mounted and breathes from the front, the BAPP67-D4-HC does not need a rear air gap and fits efficiently into a narrow run. Service is done from the front as well, so the table does not have to be pulled out.
What power does the BAPP67-D4-HC need?
A standard 115 V / 60 Hz single-phase outlet. The 3/8 HP system draws 3.5 amps and arrives with a 9.8 ft (3 m) three-wire flexible cord and a NEMA 5-15P plug, so no dedicated high-voltage circuit is required.
Is the unit certified for commercial kitchen use?
It carries cUL and UL listings along with ETL-Sanitation, and the cabinet conforms to NSF/ANSI 7 for refrigerated food-service equipment. Stainless steel inside and out with a galvanized back and bottom keeps it wipe-down friendly for health inspections.
