Blue Air BLPT72-D4RL-HC 72" Sandwich & Salad Prep Table, 4 Drawers + Center Door

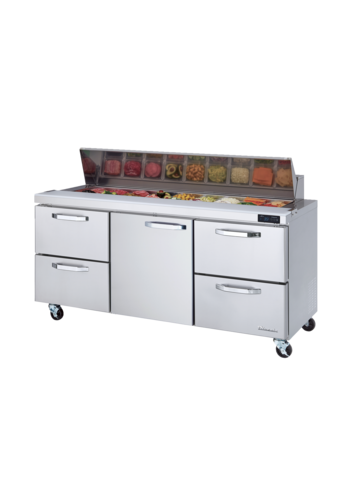

Blue Air BLPT72-D4RL-HC — 72" Prep Table with Drawers Left and Right
The BLPT72-D4RL-HC is Blue Air's split-configuration 72-3/8" sandwich and salad prep table: two drawers in the left section and two in the right, with a self-closing swing door and an adjustable wire shelf holding the middle. That layout gives a full 20.2 cu. ft. cabinet under an 18-pan cold rail — drawer speed where the cook stands, bulk shelf space where the case boxes go. Blue Air Commercial Refrigeration builds it on the same 1/4 HP R-290 system used across the BLPT line.
Key Features of the BLPT72-D4RL-HC
The point of this model is the mix: you do not have to choose between drawer access and shelf storage on a six-foot line.
Two Drawers Left, Two Drawers Right
The outer sections carry two drawers each, sized for 6" deep pans, so the two positions a cook actually works from get pull-out access. Portioned proteins and prepped components come up to hand without opening a door across the aisle.
Self-Closing Center Door with Shelf
The middle section keeps a full-height swing door on a durable, easily replaced gasket, with one epoxy-coated wire shelf that adjusts for height. It swings shut on its own and rides on a Ni-Cr plated all-metal handle guaranteed for the life of the cabinet.
Bulk Storage a Drawer Cannot Take
An adjustable shelf behind the door swallows case packs, 1/1 pans and containers that will never fit a 6" drawer, which is why this layout suits kitchens that receive product in bulk and portion it through the day.
18-Pan Forced-Air Rail
Eighteen 1/6 size, 4" deep pans ship with the unit and sit in an enclosed drop-in area where fans circulate cold air, with an air guard on the rear wall evening out the full 72-3/8". An insulated cover with a stainless divider keeps spillage out of the storage below.
Digital Monitoring, Open Alarm
A self-diagnostic digital control displays cabinet temperature and runs automatic evaporator fan motor delay. A visual and audible alarm sounds if the center door or any drawer is left ajar, well before the 33 °F to 39 °F band is lost.
Layout check: drawers occupy the left and right sections and the door is fixed in the middle — the configuration is factory-set and not reversible in the field. If you need six drawers across the same 72-3/8" cabinet, that is the BLPT72-D6-HC instead.
Ideal Applications
The split base fits operations that portion to order but still store in bulk.
BLPT72-D4RL-HC Specifications
| Model | BLPT72-D4RL-HC |
|---|---|
| Type | Sandwich / salad prep table, three-section, drawers left & right + center door |
| Refrigerated Capacity | 20.2 cu. ft. |
| Pan Capacity (Top) | (18) 1/6 size × 4" deep pans, included |
| Drawers | (4), accommodate 6" deep pans |
| Doors | (1) self-closing swing door, center section |
| Shelves | (1) adjustable epoxy-coated wire shelf |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 72-3/8" |
| Exterior Depth | 30-3/64" (763 mm), excl. 3" handle & rear spacers |
| Exterior Height | 37-19/32" (955 mm), excl. 5" casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.3 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire cord |
| Insulation | Cyclopentane, HFC-free |
| Casters | (4) 4" swivel, front two braked |
| Net / Ship Weight | 348 lbs (158 kg) / 379 lbs (172 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does the RL in BLPT72-D4RL-HC mean?
It identifies the drawer positions: two drawers in the Right section and two in the Left, with a swing door in the center. The arrangement is factory-set and cannot be reversed in the field.
How does this compare with the six-drawer BLPT72-D6-HC?
Both are 72-3/8" wide, 20.2 cu. ft. and carry an 18-pan rail. The D6 gives you six drawers and no shelf; the D4RL trades the middle two drawers for a doored compartment with an adjustable wire shelf, which holds case packs and full-size pans that a 6" drawer cannot.
Are the top pans included, and what depth do the drawers take?
Eighteen 1/6 size, 4" deep pans come with the unit, along with the insulated cover and stainless divider. The four drawers are built around 6" deep pans, ordered separately.
What power and cord does it ship with?
115 V / 60 Hz single phase at 5.3 amps, on a 9.8 ft (3 m) flexible three-wire cord with a molded NEMA 5-15P plug. No dedicated or high-voltage circuit is needed.
How much clearance should I leave around it?
Add 3" behind the listed 30-3/64" depth for the handle and rear spacers and 5" under the 37-19/32" height for the casters. The condensing unit slides out of the back for service, so keep the rear reachable rather than pushing the cabinet tight to a wall.
