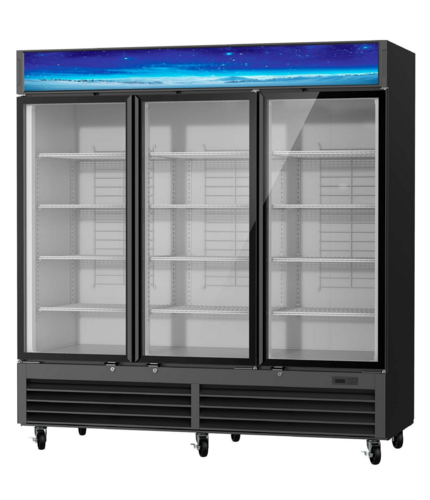

Blue Air BGF72B-HC 78" Three Glass Door Merchandiser Freezer, Black, 72 cu. ft.
Blue Air BGF72B-HC — Black 78" Three Door Glass Merchandiser Freezer
Blue Air builds the BGF72B-HC merchandiser freezer as the black-cabinet version of its 78" three-door platform, and the finish does real work: black painted steel exterior and trim frame the glass so the product behind it — not the box — is what a shopper's eye lands on. Inside, a white painted steel liner and LED lighting push brightness back out through triple-pane glass, across twelve adjustable epoxy-coated wire shelves carrying 72 cu. ft. of frozen inventory. Two bottom-mounted 3/4 HP R-290 systems hold the cabinet from -10°F to 5°F, and every door locks as standard.
Key Features of the BGF72B-HC
Below are the details that decide whether a three-door freezer merchandiser earns its floor space over a five-year run, and how the BGF72B-HC handles each one.
Black Cabinet, White Interior, Backlit Header
Black painted steel wraps the exterior and trim of the BGF72B-HC, which reads as a deliberate fixture in a dark-floor c-store or a modern market rather than as an appliance parked against the wall. The interior is finished in white painted steel so LED output bounces forward instead of being absorbed, and a backlit graphic panel runs across the header for lit category or brand signage above the three doors.
72 cu. ft. Held Between -10°F and 5°F
This is a merchandiser that actually freezes: the rated band is -10°F to 5°F across all three sections, which is where ice cream, novelties, frozen dough and packaged entrées belong rather than the 33°F–39°F a glass-door cooler runs. An air guard on the rear wall keeps circulation even from end to end of the 78-1/8" cabinet, so a carton on the far left shelf sees the same air as one in the middle section.
Triple-Pane Doors That Close and Hold Themselves
Each of the three aluminum-framed doors uses triple-pane glass technology, adding a third barrier against the large heat gradient a freezer door has to fight. The doors self-close from 90° or less and hold open automatically at 110° so a stocker can work two-handed, and built-in pressure relievers cancel the vacuum that otherwise makes a freezer door stick shut for a minute after every close.
Standard Locks and Door-Ajar Alarm
Locks are standard on all three doors of the BGF72B-HC, so the cabinet can sit on an open sales floor or stay in a store that runs past staffed hours. Backing that up, a visual and audible alarm sounds whenever a door is not completely closed — the failure mode that quietly costs a merchandiser freezer a full night of product — and the digital control adds automatic evaporator fan motor delays on its own.
Front Sliding Deck and Coated Evaporator
Both 3/4 HP compressors sit bottom-mounted on a front sliding refrigeration unit, so service and coil cleaning happen from the front without dragging a 678 lb cabinet away from the wall. The evaporator carries an electrodeposition coating that holds heat-transfer rates over its service life while resisting corrosion, and a bottom-mounted condensation pan is shaped to prevent overflow while improving ventilation under the box.
Rolls on Four 4" Casters, Cyclopentane Insulated
Four 4" swivel casters — two braked at the front — come standard, so a 678 lb freezer can be rolled out for floor cleaning instead of being levered on a dolly. Cabinet walls are foamed with cyclopentane insulation, which contains no hydro-fluorocarbons, and the refrigerant is CFC-free R-290 hydrocarbon; if the finished 84" height is tight, Blue Air offers 2.5" casters and 6" adjustable legs as alternatives.
Two numbers to confirm before delivery day: the BGF72B-HC stands 84" tall on its standard 4" casters, which clears no standard 80" door frame — measure the delivery route, and order the 2.5" caster option if the opening is the constraint. Second, the cabinet draws 18 amps on 115V/60Hz single-phase to run two 3/4 HP compressors, so plan a dedicated circuit and have your electrician confirm the receptacle before the truck arrives; it ships with a 9.8 ft (3 m) three-wire cord and molded plug. Crated weight is 738 lbs.
Ideal Applications
Three lockable sections and a black exterior put this Blue Air merchandiser freezer in front of the customer rather than behind the kitchen door.
BGF72B-HC Specifications
| Model | BGF72B-HC |
|---|---|
| Type | Glass door merchandiser freezer, three-section, bottom-mount self-contained |
| Capacity | 72 cu. ft. |
| Temperature Range | -10°F ~ 5°F |
| Doors | (3) self-closing aluminum frame hinged glass doors with standard locks; triple pane glass; automatic hold open at 110°; recessed handles; replaceable gasket |
| Shelves | (12) adjustable white epoxy coated wire shelves with trim (4 per compartment) |
| Exterior Dimensions (W x D x H) | 78-1/8" x 31-1/2" x 84" (1985 x 800 x 2135 mm) |
| Cabinet Construction | Black painted steel exterior and trim; white painted steel interior |
| Insulation | Cyclopentane, contains no hydro-fluorocarbons (HFCs) |
| Lighting | LED interior lighting; backlit graphic panel |
| Controls | Digital display and temperature control & monitor system; visual and audible door-open alarm; automatic evaporator fan motor delays |
| Air Circulation | Air guard on rear wall |
| Refrigeration | Self-contained, bottom-mounted compressors on a front sliding refrigeration unit; electrodeposition coated evaporator; bottom-mounted condensation pan |
| Refrigerant | R-290 hydrocarbon, CFC-free |
| Horsepower | (2) x 3/4 HP |
| Electrical | 115V / 60Hz / 1-ph, 18 amps |
| Cord | 9.8 ft (3 m) flexible three-wire cord with molded plug |
| Legs / Casters | (4) 4" swivel casters (2 braked); 2.5" casters and 6" adjustable legs optional |
| Net Weight | 678 lbs (308 kg) |
| Shipping Weight | 738 lbs (336 kg) |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR, conforms to NSF/ANSI 7 (ETL) |
Frequently Asked Questions
What is the difference between the BGF72B-HC and the BGF72W-HC?
They are the same three-section Blue Air merchandiser freezer in two finishes: the BGF72B-HC has a black painted steel exterior and trim, the BGF72W-HC is white. Capacity, the -10°F to 5°F range, twelve shelves, triple-pane locking doors, the two 3/4 HP R-290 systems and the 78-1/8" x 31-1/2" x 84" footprint are identical, so the choice is purely how the cabinet should read against your existing fixtures and flooring.
How much product will 72 cu. ft. actually hold?
The BGF72B-HC is rated at 72 cu. ft. divided across three compartments, each carrying four adjustable epoxy-coated wire shelves for twelve total. Because every shelf moves independently, one section can run tight spacing for pint cartons while another opens up for boxed entrées or bagged product. Blue Air also sells additional shelves if you want to add a level rather than re-space what ships with the cabinet.
Can the BGF72B-HC plug into a normal outlet?
It runs on ordinary 115V/60Hz single-phase power, but it draws 18 amps to operate two 3/4 HP compressors, which is more than a shared general-purpose branch circuit should be asked to carry. Give it a dedicated circuit sized for that load and have an electrician confirm the receptacle matches the supplied cord before delivery; the unit comes with a 9.8 ft (3 m) three-wire cord and molded plug.
Is R-290 refrigerant a problem for a retail sales floor?
No — R-290 is a hydrocarbon refrigerant used in small self-contained charges precisely because it is efficient and environmentally clean, with no CFCs and no ozone depletion potential. Blue Air pairs it here with cyclopentane insulation that contains no hydro-fluorocarbons, and the BGF72B-HC still carries cETLus and ETL-Sanitation listings plus ENERGY STAR qualification for retail use.
How do you clean under and behind a cabinet this heavy?
Two ways are built in. The refrigeration deck sits on a front sliding unit, so the compressors and condenser pull straight out the front for cleaning or service without the cabinet moving at all. For floor work, all four 4" swivel casters roll the 678 lb freezer clear of the wall, with brakes on the front pair to lock it back in position.
Will this three-door freezer fit through my doorway?
Height is the number that catches people out: on its standard 4" casters the BGF72B-HC measures 84" tall, which is above a typical 80" door opening. It is 78-1/8" wide and 31-1/2" deep, and it arrives crated at 738 lbs. If the entry height is fixed, specify the optional 2.5" casters to bring the cabinet down before it ships rather than after it is on your dock.
