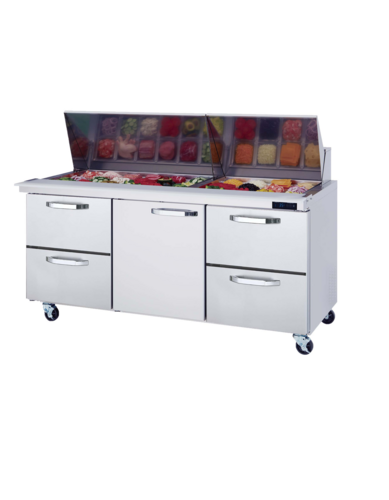

Blue Air BLMT72-D4RL-HC 72" Mega Top Refrigerated Prep Table, 4 Drawers & Center Door
Blue Air BLMT72-D4RL-HC — 72" Mega Top Prep Table, Drawers Right and Left
The Blue Air Commercial Refrigeration BLMT72-D4RL-HC is the six-foot, three-section member of the mega top prep table family, and it divides its base three ways: two drawers at each end flanking a self-closing swing door in the middle. Overhead runs the largest rail in the BLMT range — thirty 1/6 size pans, all included — above a 20.2 cu. ft. cabinet held at 33 °F to 39 °F by a rear-mounted R-290 system.
Key Features of the BLMT72-D4RL-HC
Six feet of counter only earns its floor space if both the rail above and the storage below keep pace with the line, and this layout is built around that idea.
30-Pan Rail — the Widest in the Range
Thirty 1/6 size pans ship with the unit, roughly a quarter more topping positions than the 60" mega top offers. An insulated cover with a stainless steel divider keeps spillage out of the cabinet below.
Two Drawers at Each End
The RL suffix means drawers on the right and the left, four in total, each sized for 6" deep pans. Two cooks can work opposite ends of the 72-3/8" counter without reaching across one another.
Self-Closing Center Door with a Wire Shelf
The middle section takes a full swing door that closes on its own from 90° or less, fitted with one height-adjustable epoxy-coated wire shelf for cases and containers too tall for a drawer. The all-metal Ni-Cr plated handle carries a lifetime guarantee.
1/4 HP R-290 System, 5.4 Amps
A single rear-mounted self-contained condensing unit cools all three sections on natural R-290 refrigerant, drawing 5.4 amps at 115 V. Cyclopentane foam insulation contains no hydrofluorocarbons and the evaporator is electrodeposition-coated against corrosion.
Measuring for your line: the 33-11/64" depth excludes 2-3/8" for the cutting board and 2-7/32" for the rear spacers, and the 39-11/64" height excludes 5" for the casters. At 441 lbs shipping weight, plan lift-gate delivery and a clear path to the line.
BLMT72-D4RL-HC Specifications
| Model | BLMT72-D4RL-HC |
|---|---|
| Type | Mega top sandwich / salad prep table, three-section |
| Base Configuration | (2) drawers left, (1) self-closing swing door center, (2) drawers right |
| Refrigerated Capacity | 20.2 cu. ft. |
| Pan Capacity (Top) | (30) 1/6 size pans, included |
| Drawers | (4), accommodate 6" deep pans |
| Shelf | (1) adjustable epoxy coated wire shelf |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 72-3/8" |
| Exterior Depth | 33-11/64" (843 mm), excl. cutting board & rear spacers |
| Exterior Height | 39-11/64" (995 mm), excl. casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.4 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire cord |
| Casters | (4) 4" swivel, front two braked |
| Net Weight | 326 lbs |
| Shipping Weight | 441 lbs (200 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does D4RL mean on the BLMT72-D4RL-HC?
It describes the base: four drawers split two on the right and two on the left, with the remaining center section fitted as a self-closing door compartment. It is the only 72" mega top layout in the BLMT line that mixes both storage types.
How many pans does the 72" mega top hold?
Thirty 1/6 size pans, and they are included with the unit. That is six more positions than the 60" mega top, which is the practical reason most buyers step up to this width.
Is 20.2 cu. ft. the capacity of the whole cabinet?
Yes — 20.2 cu. ft. covers all three sections combined, the four drawers plus the shelved center compartment. The published figure comes from Blue Air's own listing for this model.
What power supply does this prep table need?
Standard 115 V / 60 Hz single-phase service at 5.4 amps, delivered through a 9.8 ft three-wire cord with a NEMA 5-15P plug. No dedicated high-voltage circuit is required.
Can the center section hold items that will not fit a drawer?
That is exactly what it is for. The door section comes with one height-adjustable epoxy-coated wire shelf, so tall dressing jugs, cases and bulk containers sit there while portioned product stays in the 6" drawers.
