Blue Air BLMT60-D2L-HC 60" Mega Top Refrigerated Prep Table, 2 Left Drawers & Right Door
Blue Air BLMT60-D2L-HC — 60" Mega Top Prep Table, Drawers Left and Door Right

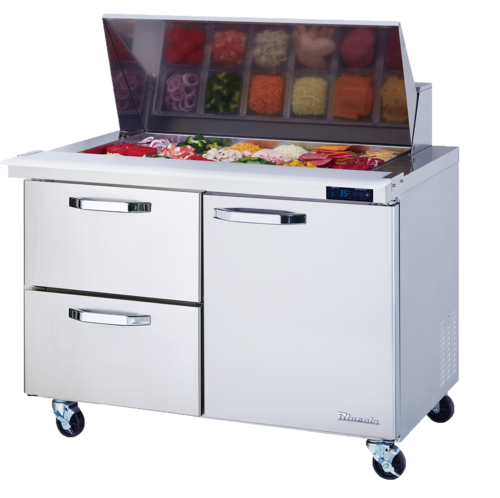

Where the all-drawer models commit the whole base to pan storage, the Blue Air Commercial Refrigeration BLMT60-D2L-HC splits it: two drawers on the left for line pans and a self-closing door on the right hiding two adjustable wire shelves for cases and bulk containers. Above both sits a 24-pan mega top rail on a 60-3/8" wide two-section cabinet rated at 16.7 cu. ft. Rear-mounted self-contained refrigeration charged with R-290 keeps the whole cabinet between 33 °F and 39 °F.
Key Features of the BLMT60-D2L-HC
The value of this particular layout is that one cabinet answers two different storage problems at once — fast pan access on one side, shelved case storage on the other.
Two Drawers on the Left Section
The left half of the base carries two drawers sized for 6" deep food pans, positioned where a right-handed cook working the rail reaches naturally. Backup proteins and dressed components come up vertically instead of out of a shelf.
Self-Closing Door on the Right
The right section uses a full door that swings shut on its own from 90° or less, so it never gets left hanging open mid-rush. Its all-metal Ni-Cr plated handle carries a lifetime guarantee and the gasket is a snap-in replacement.
Two Height-Adjustable Wire Shelves
Behind that door sit two epoxy-coated wire shelves whose height can be reset as your case sizes change — something a drawer base simply cannot do. This is where sheet pans, bagged produce and taller containers live.
24-Pan Mega Top Rail
The extended mega top accepts twenty-four 1/6 size pans, all included, giving a 60" station the ingredient spread that a standard rail of this width could not carry. An insulated cover with a stainless steel divider blocks spillage from reaching the storage below.
R-290 System, HFC-Free Cabinet
A 1/4 HP self-contained condensing unit sits at the rear and runs on R-290 hydrocarbon refrigerant, drawing just 4.9 amps at 115 V. The shell is foamed with cyclopentane insulation containing no hydrofluorocarbons.
Self-Diagnostic Controls with Open Alarm
A digital temperature control and monitor system shows cabinet temperature on the front panel and handles automatic evaporator fan motor delay. Because a swing door is easier to leave ajar than a drawer, the visual and audible open alarm earns its keep on this configuration.
Measuring for your line: the listed 33-11/64" depth excludes 2-3/8" for the cutting board and 2-7/32" for the rear spacers, and the 39-11/64" height excludes 5" for the casters. Also leave swing clearance on the right for the door, which the all-drawer BLMT models do not require.
Ideal Applications
A split drawer-and-door base fits operations that stock both portioned line product and full cases in the same station.
BLMT60-D2L-HC Specifications
| Model | BLMT60-D2L-HC |
|---|---|
| Type | Mega top sandwich / salad prep table, two-section |
| Base Configuration | (2) drawers left, (1) self-closing door right |
| Refrigerated Capacity | 16.7 cu. ft. |
| Pan Capacity (Top) | (24) 1/6 size pans, included |
| Drawers | (2), accommodate 6" deep pans |
| Shelves | (2) epoxy coated wire, adjustable height |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 60-3/8" |
| Exterior Depth | 33-11/64" (843 mm), excl. cutting board & rear spacers |
| Exterior Height | 39-11/64" (995 mm), excl. casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 4.9 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire molded-plug cord |
| Insulation | Cyclopentane, HFC-free |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked |
| Net Weight | 295 lbs (134 kg) |
| Shipping Weight | 359 lbs (163 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does the D2L in BLMT60-D2L-HC actually mean?
It identifies the base layout: two drawers occupying the left section, with the remaining right section fitted as a self-closing door compartment. Blue Air uses the same shorthand across the BLMT line, so a D2R model is the mirror image and a D4 model replaces both sections with drawers.
How much can I store behind the right-hand door?
That section comes with two epoxy-coated wire shelves that adjust in height, and additional shelves are available as an accessory. Total refrigerated volume for the cabinet is 16.7 cu. ft., shared between the shelved section and the two drawers.
Should I choose this over the all-drawer BLMT60-D4-HC?
Pick the BLMT60-D2L-HC when part of your stock arrives in cases, jugs or tall containers that will not fit a 6" pan, since only the door section gives you adjustable shelving. If everything you hold is panned product, the four-drawer version gives faster access across the full width.
How many pans fit on the mega top and are they included?
Twenty-four 1/6 size pans fit the rail and they ship with the unit, so the top is ready to load on arrival. An insulated pan cover with a stainless steel divider sits over the rail to hold temperature and keep spillage out of the cabinet.
What power does the BLMT60-D2L-HC require?
Standard 115 V / 60 Hz single-phase service at 4.9 amps, supplied through a 9.8 ft three-wire cord with a molded NEMA 5-15P plug. No dedicated high-voltage circuit or hard-wiring is needed.
Does the door section hold the same temperature as the drawers?
Yes. A single rear-mounted R-290 system feeds the whole cabinet, and an air guard on the rear wall distributes circulation so both the drawer side and the shelved side stay in the 33 °F to 39 °F band. Fans force cold air into the enclosed area rather than relying on convection.
