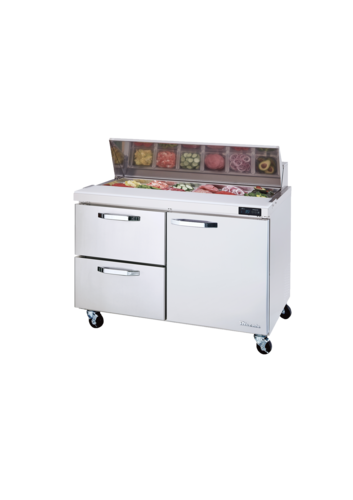

Blue Air BLPT60-D2L-HC 60" Refrigerated Sandwich & Salad Prep Table, 2 Left Drawers & Right Door
Blue Air BLPT60-D2L-HC — 60" Prep Table, Drawer Bank on the Left
Handing decides how a prep line flows, and the Blue Air Commercial Refrigeration BLPT60-D2L-HC is the version of the 60" BLPT sandwich and salad prep table built for stations that work right to left: the drawer bank sits in the left section and the self-closing swing door in the right. Behind that door is a shelved compartment for bulk stock; above both is an enclosed rail carrying sixteen 1/6 size pans in two rows of eight, chilled by a rear-mounted R-290 condensing unit rated for 16.7 cu. ft. at 33 °F to 39 °F.
Key Features of the BLPT60-D2L-HC
Everything below describes what this particular door-and-drawer layout does on a working line, not just what the family shares.
Five Feet, Two Sections, Nothing Wasted
At 60-3/8" of length the cabinet splits into two equal sections, with the top view showing a 60-1/2" overall footprint and 31-13/16" (808 mm) of depth once the handle and rear spacers are counted. That is roughly a foot shorter than a 72" three-section table for kitchens where the wall run is fixed.
Drawer Bank Positioned Left
Two drawers fill the left-hand section and take 6" deep food pans, so on a right-to-left assembly line the backup product lands where the cook starts rather than where the plate finishes. Each drawer runs on its own and can be dedicated to a single component.
Swing Door and Adjustable Shelf on the Right
The right section keeps a self-closing swing door with a replaceable gasket and a lifetime-guaranteed Ni-Cr plated metal handle. One epoxy-coated wire shelf inside adjusts for height, so the compartment can be set up for tall cambros or split into two working tiers.
Enclosed Drop-In Rail, Fan Cooled
Fans push cold air into the sealed drop-in section so the sixteen included 1/6 size, 4" deep pans stay cold across all 13-3/16" of rail depth. The insulated cover carries a stainless steel divider that keeps spillage out of the refrigerated storage below.
Self-Diagnostic Digital Control
A digital temperature control and monitor system with self-diagnostics reads out on the front display and manages automatic evaporator fan motor delay. A visual and audible alarm calls out a door or drawer left ajar before overnight product is lost.
Corrosion-Resistant Build Throughout
Stainless steel lines the interior and exterior over a galvanized back and bottom, with rounded corners to reduce injury risk. The evaporator is electrodeposition coated to hold its heat-transfer rate and resist corrosion, and the frame is warmed by a hot gas circuit that keeps condensation from forming.
Left or right — pick before you buy: the D2L designation means drawers left, door right when you stand in front of the cabinet; the BLPT60-D2R-HC is the exact mirror. Handing cannot be reversed in the field. Allow for the 5" (127 mm) that the 4" casters add under the 37-19/32" cabinet height, and keep the rear accessible so the easy-sliding condensing unit can be drawn out.
Ideal Applications
Left-hand drawer placement earns its keep wherever the build sequence travels toward the right.
BLPT60-D2L-HC Specifications
| Model | BLPT60-D2L-HC |
|---|---|
| Type | Sandwich / salad prep table, two-section, 2 drawers + 1 door |
| Refrigerated Capacity | 16.7 cu. ft. |
| Pan Capacity (Top) | (16) 1/6 size × 4" deep pans, two rows of eight, included |
| Drawers | (2), left-hand section, accommodate 6" deep pans |
| Doors | (1) self-closing swing door, right-hand section |
| Shelves | (1) adjustable epoxy-coated wire shelf |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 60-3/8" |
| Exterior Depth | 30-3/64" (763 mm); 31-13/16" (808 mm) including handle & rear spacers |
| Exterior Height | 37-19/32" (955 mm), excl. 5" (127 mm) casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted compressor, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Evaporator | Electrodeposition coated |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.0 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire molded-plug cord |
| Insulation | Cyclopentane, HFC-free |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom, rounded corners |
| Casters | (4) 4" (102 mm) swivel, front two braked; 2.5" casters optional |
| Net Weight | 291 lbs (132 kg) |
| Shipping Weight | 355 lbs (161 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
Is the BLPT60-D2L-HC different from the BLPT60-D2R-HC in any way besides handing?
No. The two share the same 60-3/8" two-section cabinet, 16.7 cu. ft. capacity, 16-pan rail, 1/4 HP R-290 system and control package. Only the layout flips: D2L puts the drawers on the left and the swing door on the right, while D2R reverses it. Order the one that matches the direction your line assembles.
How many pans fit the top and what size are they?
The drop-in rail takes sixteen 1/6 size pans, 4" deep, arranged in two rows of eight across roughly 13-3/16" of rail depth. All sixteen ship with the unit together with the insulated cover and stainless divider; deeper 6" pans for the drawers are ordered separately.
Can I add a second shelf behind the door?
Yes. The right-hand section comes with one epoxy-coated wire shelf on adjustable supports, and Blue Air lists additional shelves as an accessory. Adding one splits the compartment into two tiers, which suits case goods and squeeze bottles better than a single tall opening.
How much space does the unit need front to back?
The cabinet body measures 30-3/64" (763 mm) deep, and 31-13/16" (808 mm) once the door handle and rear spacers are included. Add clearance behind that so the rear-mounted condensing unit can slide out for cleaning and service instead of being trapped against the wall.
What is the electrical requirement and plug type?
115 V, 60 Hz, single phase at 5.0 amps through a NEMA 5-15P molded plug on a 9.8 ft (3 m) three-wire flexible cord. That is an ordinary wall receptacle, which is part of why this table drops into existing lines without an electrician.
Does the R-290 charge affect where I can install it?
R-290 is a natural hydrocarbon refrigerant with no ozone depletion potential, used in a small factory-sealed charge and covered by the unit's cETLus listing and ETL-Sanitation certification. Standard practice applies: keep the condenser area ventilated and clear of open ignition sources during service.
