Blue Air BLPT60-D2R-HC 60" Refrigerated Sandwich & Salad Prep Table, 2 Right Drawers & Left Door
Blue Air BLPT60-D2R-HC — 60" Prep Table, Drawers Right and Door Left

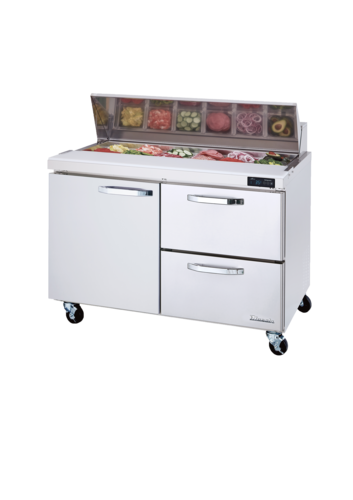

The Blue Air Commercial Refrigeration BLPT60-D2R-HC is the split-configuration member of the 60" BLPT sandwich and salad prep table range: two drawers occupy the right-hand section while a self-closing swing door on the left opens onto a full-height compartment with one adjustable wire shelf. That combination gives a line cook fast pan-level access on one side and 16.7 cu. ft. of case-and-tray storage on the other, all held between 33 °F and 39 °F by a rear-mounted R-290 system.
Key Features of the BLPT60-D2R-HC
Choosing the D2R over an all-drawer or all-door 60" table comes down to what sits under the build area, so here is exactly what this configuration gives you.
Two Drawers on the Right
The right-hand section is fitted with two drawers that accommodate 6" deep food pans, putting mise en place directly under the working end of the rail. Cooks lift product up and out at counter height instead of bending into a cabinet mid-service.
Self-Closing Left Door with One Shelf
The left section keeps a full-height swing door that closes itself if a cook lets go, and holds one height-adjustable epoxy-coated wire shelf. That leaves room for cambros, sheet trays and case-quantity backup that will not fit in a drawer.
16-Pan Enclosed Cold Rail
Sixteen 1/6 size, 4" deep pans ship with the BLPT60-D2R-HC and drop into an enclosed rail where fans force cold air around the wells. An insulated pan cover with a stainless steel divider stops spillage from reaching the storage compartment below.
Air Guard Balances Both Sections
An air guard on the rear wall routes circulation so the drawer bank and the shelved door section see the same airflow, keeping the whole 16.7 cu. ft. cabinet inside the 33 °F to 39 °F band rather than letting the far end drift.
R-290 Refrigerant and Hot Gas Frame Heating
The 1/4 HP self-contained system runs on R-290 hydrocarbon refrigerant with no ozone depletion potential, and cyclopentane foam insulation contains no HFCs. An innovative hot gas frame heating system reclaims compressor heat to keep condensation off the door and drawer frames.
Self-Diagnostic Controls and Open Alarm
A self-diagnostic digital temperature control and monitor system displays cabinet temperature and runs automatic evaporator fan motor delay. A visual and audible alarm sounds when the door or a drawer is not fully closed, which matters most on a unit that mixes both.
Check your handing before you order: on the BLPT60-D2R-HC the drawers sit on the right and the swing door on the left as you face the unit. If your line runs the other way, the mirror-image BLPT60-D2L-HC puts the drawers on the left. Also remember the listed 30-3/64" depth excludes 3" for the handle and rear spacers, and the 37-19/32" height excludes 5" for the casters.
Ideal Applications
The mixed drawer-and-door layout suits kitchens that carry both prepped pans and bulk backup on the same station.
BLPT60-D2R-HC Specifications
| Model | BLPT60-D2R-HC |
|---|---|
| Type | Sandwich / salad prep table, two-section, 2 drawers + 1 door |
| Refrigerated Capacity | 16.7 cu. ft. |
| Pan Capacity (Top) | (16) 1/6 size × 4" deep pans, included |
| Drawers | (2), right-hand section, accommodate 6" deep pans |
| Doors | (1) self-closing swing door, left-hand section |
| Shelves | (1) adjustable epoxy-coated wire shelf |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 60-3/8" |
| Exterior Depth | 30-3/64" (763 mm), excl. 3" handle & rear spacers |
| Exterior Height | 37-19/32" (955 mm), excl. 5" casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted compressor, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Evaporator | Electrodeposition coated |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.0 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) three-wire molded-plug cord |
| Insulation | Cyclopentane, HFC-free |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked |
| Net Weight | 291 lbs (132 kg) |
| Shipping Weight | 355 lbs (161 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does the "D2R" in BLPT60-D2R-HC actually mean?
D2R identifies the door and drawer handing: two drawers in the right-hand section and one self-closing swing door on the left. The mirrored BLPT60-D2L-HC reverses that, and the all-drawer BLPT60-D4-HC replaces both sections with four drawers. Capacity, refrigeration and controls are shared across the 60" BLPT line.
How much can the left door section hold?
It is a full-height compartment served by one height-adjustable epoxy-coated wire shelf, so it takes case-quantity product, cambros and sheet trays that will not fit a 6" drawer pan. Additional shelves are available from Blue Air if you would rather run the section as two tiers.
Are the top pans included with the BLPT60-D2R-HC?
Yes — sixteen 1/6 size, 4" deep pans come with the unit, along with the insulated pan cover and its stainless steel divider. The drawers below are sized for 6" deep pans, which Blue Air offers as a separate accessory.
What outlet does this prep table need?
A standard 115 V / 60 Hz single-phase receptacle drawing 5.0 amps. The 9.8 ft (3 m) flexible three-wire cord terminates in a molded NEMA 5-15P plug, so no dedicated circuit or special receptacle is required for a typical prep line.
Can the unit sit flush against a back wall?
Leave the rear face reachable. The condensing unit is rear-mounted on an easy-sliding assembly so a technician can pull it for service, and the published 30-3/64" depth already excludes 3" for the door handle and rear spacers. Plan the bay around that extra clearance.
Is the BLPT60-D2R-HC certified for commercial kitchens?
Yes. The cabinet is cETLus listed for electrical safety in the US and Canada, carries the ETL-Sanitation mark, and conforms to NSF/ANSI 7 for refrigerated food service equipment. Between those listings and the digital monitor readout, logging cabinet temperatures for HACCP records takes seconds per shift.
| Brand | Blue Air Commercial Refrigeration |
-
