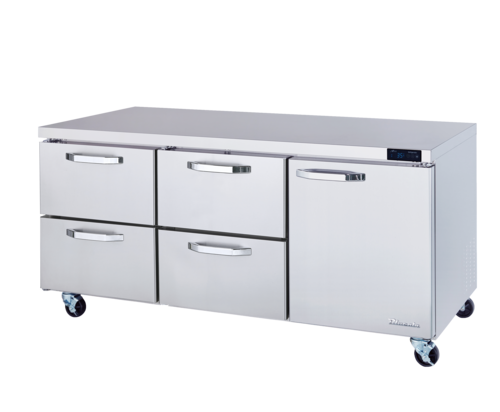

Blue Air BLUR72-D4LM-HC 72" Undercounter Refrigerator, 4 Drawers and 1 Swing Door
Blue Air BLUR72-D4LM-HC — 72" Undercounter Refrigerator, Four Drawers Plus a Door Section
The BLUR72-D4LM-HC settles the drawers-or-doors argument by giving you both in the right proportion: four 6" pan drawers filling the left and center sections, then a single self-closing swing door on the right hiding two adjustable wire shelves for the bulk you do not want on the line. All of it lives in one 72-3/8" three-section stainless cabinet rated at 20.2 cu. ft. between 33 °F and 39 °F, cooled by a rear-mounted 1/4 HP self-contained system on R-290 hydrocarbon refrigerant.
Key Features of the BLUR72-D4LM-HC
The value of the BLUR72-D4LM-HC is in where Blue Air put each opening — two-thirds of the cabinet dedicated to fast pan access, the last third kept as conventional shelved storage.
Four Drawers Across the Left and Center
Two stacked drawers in the left section and two more in the center give you four openings, each sized to carry a 6" deep food pan, with metal drawer handles fitted to all of them. That is enough pan capacity to run an entire station's mise en place without turning around, while still leaving a full section in reserve.
One Self-Closing Door on the Right
The right-hand section keeps a full-height self-closing swing door with a heavy-duty all-metal, Ni-Cr plated handle guaranteed for the life of the unit. Because it self-closes, a cook who lets go with both hands full does not leave the cabinet standing open, and the durable gasket is designed to be swapped without a service call.
Two Adjustable Wire Shelves Behind the Door
The door compartment carries two epoxy-coated wire shelves on adjustable supports, so tall containers, milk crates and case goods that will never fit a 6" pan still have a home in the same cabinet. Blue Air sells additional shelves if you want to break that section into tighter layers.
R-290 Charge, Cyclopentane Walls, Coated Coil
The self-contained rear-mounted 1/4 HP condensing unit runs on R-290 hydrocarbon refrigerant, which causes no ozone depletion, and the cabinet is foamed with cyclopentane insulation containing no hydrofluorocarbons. An electrodeposition coating on the evaporator holds the heat transfer rate steady and slows corrosion over the life of the coil.
Self-Diagnostic Digital Control and Ajar Alarm
A self-diagnostic digital temperature control and monitor system puts cabinet temperature on a front display and includes manual defrost for scheduled cleaning. Visual and audible alarms sound when any opening is left ajar — useful on a cabinet with five separate ways in, and an air guard on the rear wall keeps circulation even across all three sections.
Rolls Out on Four 4" Casters
Four 4" diameter swivel casters with brakes on the front pair are standard, and the condensing unit sits on an easy-sliding tray at the rear. One person can release the brakes, roll the 304 lb cabinet away from the wall and pull the unit forward for coil cleaning rather than working blind behind a fixed base.
Before you cut the opening: the published 30" depth leaves out 3" for the door handle and rear spacers, and the 30-29/32" body height leaves out 5" for the standard casters, so budget about 33" front to back and 35-29/32" tall on the wheels. Orient the run so the four-drawer end faces the cook and the shelved door section sits toward the back-of-house end; 2.5" casters are available from Blue Air if the counter height is tight.
Ideal Applications
A four-drawer, one-door split suits stations that work off pans all shift but still need somewhere to put a case.
BLUR72-D4LM-HC Specifications
| Model | BLUR72-D4LM-HC |
|---|---|
| Type | Undercounter reach-in refrigerator, three-section, drawers + door |
| Refrigerated Capacity | 20.2 cu. ft. |
| Drawers | (4), left and center sections, accommodate 6" deep pans |
| Doors | (1) self-closing swing door, right-hand section |
| Shelves | (2) adjustable epoxy-coated wire shelves in the door section |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 72-3/8" (1839 mm) |
| Exterior Depth | 30" (762 mm), excl. 3" handle & rear spacers |
| Exterior Height | 30-29/32" (785 mm), excl. 5" (127 mm) casters |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.2 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) flexible three-wire cord |
| Insulation | Cyclopentane, HFC-free |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked |
| Handles | All-metal drawer and door handles, Ni-Cr plated, lifetime guaranteed |
| Defrost | Manual, from the digital control |
| Net Weight | 304 lbs (138 kg) |
| Shipping Weight | 373 lbs (169 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does the D4LM suffix on the BLUR72-D4LM-HC mean?
It describes the access layout: four drawers placed in the Left and Middle sections, with the remaining right-hand section fitted as a door compartment. Blue Air uses the same 72-3/8" three-section shell across the BLUR72 range, so the suffix is the only thing separating this build from the all-door, all-drawer and two-drawer versions.
How much shelved storage do you still get with four drawers?
The single right-hand door compartment holds two adjustable epoxy-coated wire shelves. That is the trade for the extra drawer bank — you keep one section of conventional shelving for cases, tall containers and anything that will not lie flat in a 6" pan, while the other two-thirds of the 20.2 cu. ft. cabinet is pan-accessed.
Will the BLUR72-D4LM-HC fit under a 36" counter?
The cabinet body is 30-29/32" (785 mm) tall and the standard 4" swivel casters add roughly 5", putting the installed height near 35-29/32". That clears a typical 36" countertop by a small margin. Blue Air offers 2.5" diameter casters as an option if your opening or floor leaves less room.
What power does this 72" undercounter refrigerator require?
A single standard 115 V / 60 Hz single-phase outlet. The BLUR72-D4LM-HC draws 5.2 amps and ships with a 9.8 ft (3 m) flexible three-wire cord and a molded NEMA 5-15P plug, so the whole 72" run comes up on one ordinary receptacle with no hard-wiring and no dedicated high-amperage circuit.
Do the drawers and the door section hold the same temperature?
Yes. An air guard on the rear wall distributes circulation across all three sections so the drawer banks and the shelved compartment sit in the same 33 °F to 39 °F band. A hot gas frame heating system routes discharge gas through the cabinet frame to keep condensation off the five separate openings instead of relying on an electric heater wire.
What does it weigh and how is it serviced?
Net weight is 304 lbs (138 kg) with a shipping weight of 373 lbs (169 kg) — between the lighter door-only builds and the heavier six-drawer version. Plan on a lift gate and two people to set it. Once placed, the rear-mounted condensing unit slides out on its tray and the four casters let one person roll the cabinet clear for cleaning.
