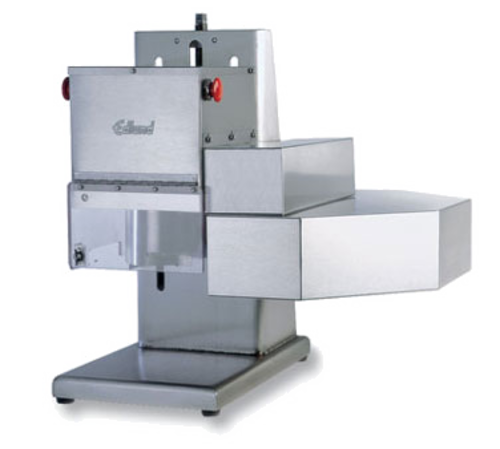

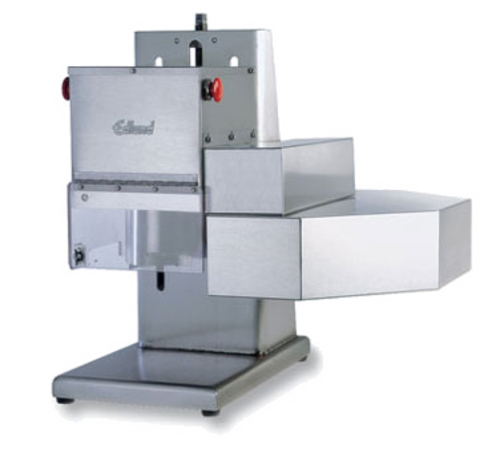

Edlund 625A Crown Punch Industrial Can Opener with Alligator Lid Removal
Edlund 625A Crown Punch — PLC Alligator Lid Removal, 3,000 Cans/Day
The Edlund 625A is the pinnacle of Edlund’s Crown Punch series — a fully industrial-grade, air-powered can opener rated for up to 3,000 cans per day. Its exclusive P.L.C.-driven alligator claw lid removal system automatically grabs each lid and drops it into a dedicated receptacle, delivering fully hands-free, NSF-certified operation. Dual two-hand safety controls, a microswitch-activated safety door, and all-stainless construction make the 625A the standard for high-throughput food processing and institutional kitchens. Made in the USA.
Key Features of the Edlund 625A
The 625A combines the highest throughput in the Crown Punch line with the most advanced safety and sanitation features Edlund offers — setting the standard for industrial food processing environments.
P.L.C.-Driven Alligator Lid Removal System
The 625A’s exclusive alligator claw mechanism automatically grabs each cut lid and drops it into a built-in receptacle — fully hands-free, zero contact with the lid. This P.L.C.-controlled system eliminates contamination risk and operator injury at high production speeds.
Dual Two-Hand Safety Controls
Operation requires simultaneous two-hand activation — an industrial-grade safety control that prevents accidental starts and protects operators at the highest throughput levels. Combined with a microswitch-activated door, the 625A meets the safety demands of OSHA-regulated processing facilities.
NSF Certified
The 625A carries NSF International certification — independently verifying that the unit meets public health and food safety standards. This certification is required by many food processing facilities, health departments, and institutional foodservice contracts.
3,000 Cans/Day — Maximum Crown Punch Throughput
At 3,000 cans per day, the 625A is the highest-capacity can opener in the Edlund Crown Punch lineup. A single operator can maintain full production rate thanks to the automated lid system eliminating manual steps between each can.
Air-Powered with PLC Electrical Assist
The main can-opening mechanism runs entirely on 85 PSI compressed air (1–2 CFM). The P.L.C. control system draws a minimal 0.5 amp at 115–230V AC — a standard outlet connection that powers the alligator lid automation without major electrical infrastructure.
Adjustable Height & Quick-Change Tooling
The 625A’s adjustable height feature accommodates almost any can size, and quick-change tooling lets operators switch between 12 standard can sizes without tools. Custom tooling is also available from Edlund for specialty and non-standard can formats.
Do Not Sharpen Crown Punch Blades: Blade edges are intentionally dull to prevent metal slivers from contaminating food. Do not attempt to sharpen. For blade reconditioning, contact the Edlund factory directly. Note: the 625A requires a standard 115–230V AC outlet (0.5A) for the P.L.C. lid control system in addition to a compressed air supply.
Ideal Applications
The 625A is the right tool when throughput, operator safety, and NSF compliance all have to be checked simultaneously — at the highest volume level in the Edlund lineup.
Edlund 625A Specifications
| Model | Edlund 625A (Product Code 62700) |
|---|---|
| Type | Crown Punch, Heavy-Duty Industrial, Air-Powered |
| Lid Removal System | P.L.C.-driven alligator claw (drops lid into receptacle) |
| Safety Controls | Dual two-hand operation required; microswitch-activated safety door |
| Recommended Daily Capacity | Up to 3,000 cans per day |
| Operating Air Pressure | 85 PSI |
| Air Consumption | 1–2 CFM |
| Electrical (P.L.C.) | 0.5 amp @ 115–230V AC |
| Max Can Height | 9⁄₅" (9.8" / 24.9 cm) |
| Height Adjustment | Adjustable — accommodates almost any can size |
| Tooling | Quick-change; custom tooling available from factory |
| Construction | Heavy-duty stainless steel — fully washable |
| Certifications | NSF Certified, CE |
| Origin | Made in USA |
| Unit Weight | 260 lbs (117 kg) |
| Shipping Volume | 24 ft³ (0.7 m³) |
| Warranty | 1 year from date of purchase |
Frequently Asked Questions
What makes the 625A different from the standard 625?
The 625A is the top model in Edlund’s 625 series. It adds a P.L.C.-driven alligator claw lid removal system that automatically captures and discards lids, dual two-hand safety controls, and NSF certification. The standard 625 has a microswitch safety door but no automatic lid removal and is rated for 2,000 cans/day versus the 625A’s 3,000.
How does the alligator lid removal system work?
After each can is opened, the P.L.C.-controlled alligator claw automatically grabs the cut lid and drops it into a dedicated receptacle. This eliminates any need for the operator to handle lids — reducing contamination risk and operator injury at high production speeds. The system is fully automated and triggered with each opening cycle.
Does the 625A require electricity?
The main can-opening mechanism is 100% air-powered at 85 PSI (1–2 CFM). However, the P.L.C. alligator lid control system requires a standard electrical connection: 0.5 amp at 115–230V AC. This is a minimal draw that any standard kitchen outlet can supply.
Is the Edlund 625A NSF certified?
Yes. The 625A is NSF International certified, meaning it has been independently tested and verified to meet public health and food safety standards. NSF certification is often required by food processing facilities, health departments, and institutional purchasing programs.
What can sizes does the 625A accept?
The 625A features an adjustable height mechanism that accommodates almost any can size, with a maximum can height of 9⁄₅". Standard tooling covers 12 common can sizes from #202 to #603 / #10. The Edlund factory can supply custom tooling for non-standard or specialty can formats.
Can I sharpen the Crown Punch blade on the 625A?
No. The blade edges are intentionally dull to prevent metal slivers from entering food. Sharpening the blade will compromise its function and safety. Contact the Edlund factory for authorized reconditioning when blade performance declines.
