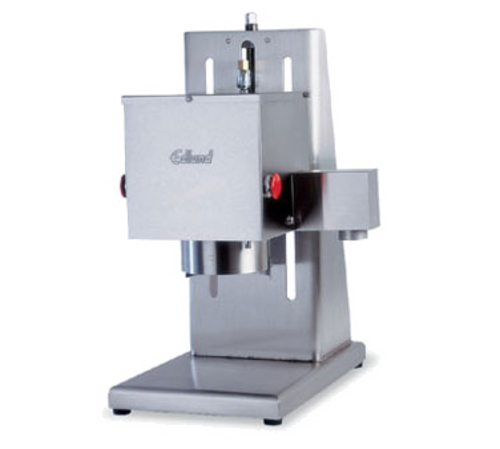

Edlund 625M Crown Punch Heavy-Duty Can Opener with Magnetic Lid Remover
Edlund 625M Crown Punch — Heavy-Duty Can Opener with Magnetic Lid Remover
The Edlund 625M Crown Punch brings the industrial throughput of the 625 platform — up to 2,000 cans per day — together with a built-in magnetic lid remover that eliminates the manual lid-handling step between cans. After opening, the operator passes the can past the integrated magnet; the lid stays held until the next can is opened, releasing it automatically. All-stainless, fully air-powered, and fully washable, the 625M is the practical mid-tier choice in Edlund’s 625 series — more lid safety than the base 625, without the PLC complexity of the 625A. Made in the USA.
Key Features of the Edlund 625M
The 625M keeps the proven 2,000-can-per-day capacity of the base 625 and adds a magnetic lid remover that removes one of the most injury-prone manual steps from the workflow.
Magnetic Lid Remover — Pass & Release System
After opening, the operator passes the open can past the integrated magnet — the lid attaches and holds. When the next can is opened, the magnet releases the previous lid automatically. No reaching into cans, no loose lids on the work surface, no contamination risk.
Food Processor Grade — Up to 2,000 Cans/Day
The same 2,000-can-per-day capacity as the base 625 — placing the 625M squarely in the industrial and food processing tier. A single operator can sustain full daily throughput without slowdown.
100% Air-Powered — No Electricity
Runs entirely on compressed air at 85 PSI with ½–2 CFM consumption. No electrical connection required — safe in wet industrial environments and unaffected by power disruptions. Unlike the 625A, the 625M has no PLC and needs no electrical hookup whatsoever.
Heavy-Duty Stainless Steel — Fully Washable
All-stainless construction throughout — body, blade, and mechanism — built for continuous industrial use. The entire unit washes down completely, maintaining the sanitation standards required by commercial and processing operations.
Where the 625M Sits in the Series
The 625M bridges the base 625 (no lid system) and the 625A (PLC alligator claw, 3,000/day). It offers practical lid safety at the same 2,000-can capacity and all-pneumatic simplicity — no additional electrical connections, no PLC maintenance, no added complexity.
Quick-Change Tooling for 12 Can Sizes
Switches between 12 standard can sizes from #202 (2⅛") to #603 / #10 (6³⁄₁₆"), accepting cans up to 11" tall — all without tools. Custom tooling is available from the Edlund factory for specialty formats.
Do Not Sharpen Crown Punch Blades: Blade edges are intentionally dull to prevent metal slivers from entering food. Do not sharpen. Contact the Edlund factory for authorized blade reconditioning when performance declines. The 625M requires only a compressed air supply — no electrical connection needed.
Ideal Applications
The 625M is the right call for high-volume operations that want industrial throughput plus lid safety without the complexity or cost of a PLC-driven system.
Edlund 625M Specifications
| Model | Edlund 625M (Product Code 62400) |
|---|---|
| Type | Crown Punch, Heavy-Duty Industrial, Air-Powered |
| Lid Removal System | Magnetic — pass can by magnet; lid releases on next opening cycle |
| Recommended Daily Capacity | Up to 2,000 cans per day |
| Operating Air Pressure | 85 PSI |
| Air Consumption | ½–2 CFM |
| Electricity Required | None |
| Max Can Height | 11" (27.9 cm) |
| Construction | Heavy-duty stainless steel — fully washable |
| Tooling | Quick-change; custom tooling available from factory |
| Exterior Dimensions | 11.75 × 26.75 × 20.44 inches |
| Origin | Made in USA |
| Unit Weight | 145 lbs (65.3 kg) |
| Shipping Volume | 12.6 ft³ (0.36 m³) |
| Standard Can Sizes Supported | #202 (2⅛"), #211 (2¹¹⁄₁₆"), #214 (2⁷⁄₈"), #300 (3"), #303 (3³⁄₁₆"), #307 (3⁷⁄₁₆"), #400 (4"), #401 (4¹⁄₁₆"), #404 (4¼"), #502 (5⅛"), #600 (6"), #603/#10 (6³⁄₁₆") |

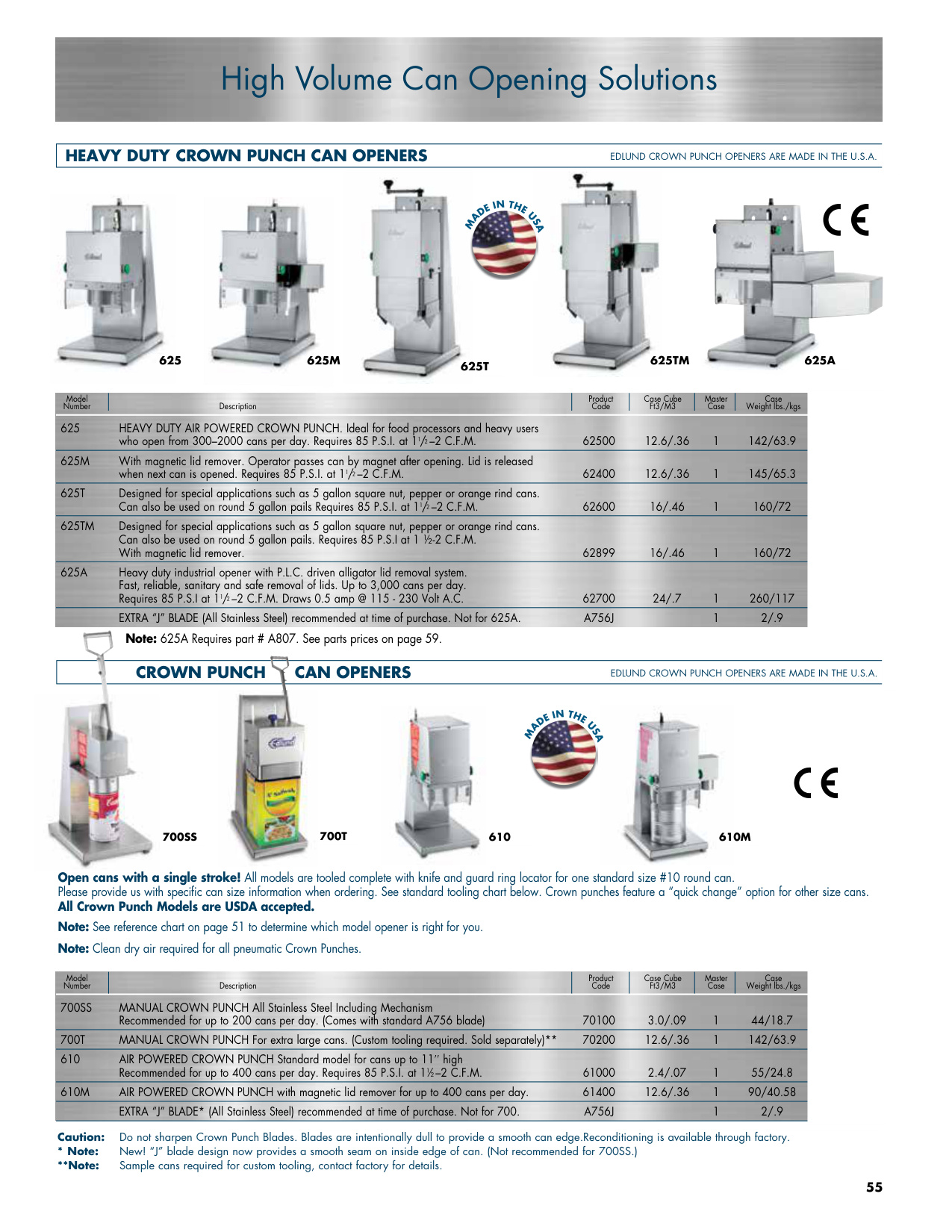

| Related Models | 625 (no lid system), 625L (linear auto lid), 625A (alligator claw, 3,000/day, NSF) |
| Certifications | CE |
| Warranty | 1 year from date of purchase |
Frequently Asked Questions
How does the 625M magnetic lid remover work?
After each can is opened, the operator passes the open can past the built-in magnet. The cut lid attaches to the magnet and is held in place. When the next can is placed and opened, the mechanism automatically releases the previous lid — keeping the work surface clear and hands away from sharp edges throughout the production run.
What is the difference between the 625M and the standard 625?
The 625M adds a magnetic lid remover to the base 625 design. Both models share the same 2,000-can-per-day capacity, 85 PSI air requirement, and all-stainless construction. The 625M weighs 145 lbs vs 142 lbs for the 625 — otherwise nearly identical except for the magnetic lid system.
How does the 625M compare to the 625A?
The 625A has a P.L.C.-driven alligator claw system that automatically discards each lid into a receptacle without any operator involvement, and is rated for 3,000 cans/day with NSF certification and dual two-hand controls. The 625M uses a simpler magnetic pass-by system (no PLC, no electrical connection) with a 2,000-can/day rating. The 625M is a lower-cost, lower-complexity option for operations that don’t need NSF certification or 3,000-unit throughput.
Does the 625M require electricity?
No. The 625M is 100% air-powered at 85 PSI with ½–2 CFM consumption. Unlike the 625A, it has no PLC and requires no electrical connection of any kind — making it ideal for wet or electrically constrained environments.
What can sizes does the 625M accept?
The 625M accepts 12 standard can sizes from #202 (2⅛") through #603 / #10 (6³⁄₁₆"), with cans up to 11" tall. Tooling changes require no tools. Custom tooling is available from the Edlund factory for specialty can formats.
Can I sharpen the Crown Punch blade on the 625M?
No. Crown Punch blades are intentionally dull to prevent metal slivers from entering food. Sharpening them degrades performance and safety. Contact the Edlund factory for authorized blade reconditioning when output quality declines.
