$ 15,599.00Giles Enterprises EOF-20/24/24 (70981 / 70982 / 70983) 72-3/8 Inch Electric Space-Saver Fryer Battery, (1) 20 Inch + (2) 24 Inch Vats, 84 kW, Built-In Filtration

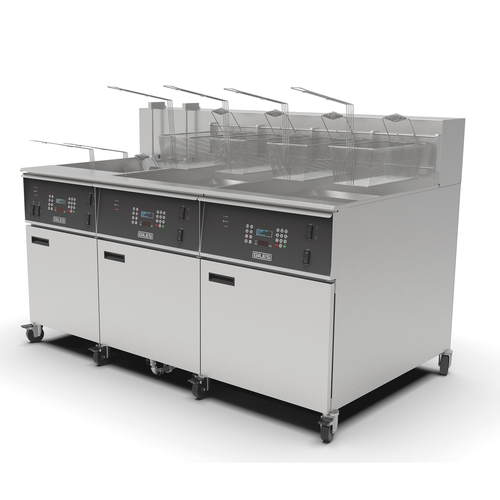

Giles EOF-20/24/24 (70981 / 70982 / 70983) — 72-3/8" Space-Saver Electric Fryer Battery
The Giles EOF-20/24/24 is the space-saver version of the EOF High-Volume Series: it fits one 20-inch vat and two 24-inch vats into a 72-3/8-inch battery by leaving out the dump station, giving high-volume operations three-vat capacity in the same footprint as a two-vat line with a dump station. The 20" x 20" EOF-20 vat holds 115 lbs of oil at 24 kW, cooks 27 to 30 lbs of 8-way cut chicken per load, and has an automatic basket lift as standard. Each 20" x 24" EOF-24 vat holds 170 lbs of oil at 30 kW and cooks 36 to 42 lbs per load, for roughly 99 to 114 lbs per round across 84 kW. One central on-board filtration system with a 1/2 hp pump serves all three fryers. Giles builds it in Montgomery, Alabama, as item 70981 (208V), 70982 (240V), or 70983 (480V).
Key Features of the EOF-20/24/24
Designed without a dump station to save footprint, the EOF-20/24/24 puts the maximum frying capacity of the high-volume series into a 72-3/8-inch line.
Space-Saver Layout
Without a dump station, three fry vats fit in 72-3/8 inches, the same width as Giles' two-vat EOF-20/FFLT/24 with a dump station.
Two 24" Vats, 170 lb Each
Each 20" x 24" vat holds 170 lbs of oil at 30 kW and cooks 36–42 lbs of 8-way cut chicken per load.
20" Vat with Auto Lift
The 20" x 20" vat holds 115 lbs of oil at 24 kW, cooks 27–30 lbs per load, and has a standard automatic basket lift.
Central On-Board Filtration
One filtration system with a 1/2 hp pump serves all three fryers, with an optional stainless steel filter screen.
Computer Controllers
50 programmable presets, per-basket timers, Auto-Cool, Force-Filter, Boil-Out, optional password security, and multi-language display.
Three Voltage Options
Available as 208V, 240V, or 480V 3-phase, with heavy-duty 5" swivel casters and front locking brakes.
Electrical note: Each of the three fryers needs its own 3-phase supply. The EOF-20 unit draws 76 A at 208V, 66 A at 240V, or 33 A at 480V; each EOF-24 unit draws 100 A, 87 A, or 43 A. Order item 70981 (208V), 70982 (240V), or 70983 (480V). Service cords are not included, and the battery ships crated at 1,250 lbs.
Ideal Applications
Three high-capacity vats in a 72-3/8" footprint suit kitchens that need maximum output but cannot give up the extra length of a dump station.
EOF-20/24/24 Specifications
| Model / Item No. | Giles EOF-20/24/24 / 70981 (208V), 70982 (240V), 70983 (480V) |
|---|---|
| Type | Electric open-vat banked fryer battery, space-saver (no dump station) |
| Vats | (1) 20" x 20" + (2) 20" x 24" |
| Oil Capacity | 115 lbs (20" vat); 170 lbs per 24" vat (455 lbs total) |
| Product Capacity | 27–30 lbs (20"); 36–42 lbs per 24" vat (8-way cut chicken) |
| Heating | 24 kW (20" vat); 30 kW per 24" vat; 84 kW total |
| Electrical (per unit) | EOF-20: 76 A @ 208V, 66 A @ 240V, 33 A @ 480V; EOF-24: 100 A, 87 A, 43 A; 3-phase; separate supply per unit; cords not included |
| Width | 72-3/8" (1838 mm) |
| Depth | 41-3/8" (1050 mm) |
| Height | 46-1/8" (1172 mm) |
| Temperature | Adjustable to 350°F max; high-limit shutdown at 450°F |
| Controls | Computer controllers, 50 presets, per-basket timers, Auto-Cool, Force-Filter, Boil-Out |
| Filtration | Central on-board system, 1/2 hp pump |
| Basket Lifts | Standard on 20" vat; optional on 24" vats |
| Standard Equipment | (2) cook baskets (20" vat), fry screen per well, scoop-style basket, filter pan insert with crumb catcher, brush set, drain clean-out tool, stirring utensil, discharge hose, crumb shovel and scoop |
| Mobility | 5" swivel casters, front casters with locking brakes |
| Crated Weight / Size | 1,250 lbs; 50" x 106" x 61" |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
Does the Giles EOF-20/24/24 have a dump station?
No. The EOF-20/24/24 is Giles' space-saver battery and is designed without a dump station, which lets three fry vats fit in 72-3/8 inches.
What vats does the EOF-20/24/24 have?
It has one 20" x 20" vat holding 115 lbs of oil and two 20" x 24" vats holding 170 lbs each, for 455 lbs of oil in total.
What are Giles item numbers 70981, 70982, and 70983?
They are the factory item numbers for the EOF-20/24/24 by voltage: 70981 for 208V, 70982 for 240V, and 70983 for 480V, all 3-phase.
How much chicken does it cook per round?
The 20" vat cooks 27 to 30 lbs and each 24" vat cooks 36 to 42 lbs of 8-way cut chicken, roughly 99 to 114 lbs across all three vats.
What electrical service does it need?
Each fryer needs its own 3-phase supply: the EOF-20 unit draws 76 A at 208V, 66 A at 240V, or 33 A at 480V, and each EOF-24 unit draws 100 A, 87 A, or 43 A. Cords are not included.
What are the dimensions of the EOF-20/24/24?
The battery is 72-3/8 inches wide, 41-3/8 inches deep, and 46-1/8 inches tall, and it ships crated at 1,250 lbs.
