Giles Enterprises GBF-50 (71558 / 71559) 16-1/4 Inch Electric Floor Fryer, 14 Inch Vat, 50 lb Oil Capacity, 18 kW, Deep Cool Zone, Built-In Filtration

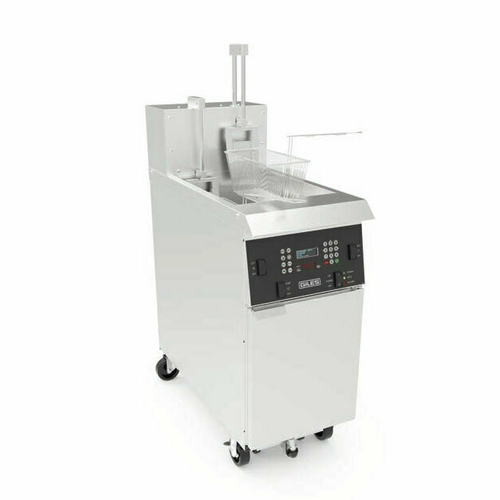

Giles GBF-50 (71558 / 71559) — 16-1/4" Electric Floor Fryer, 50 lb
The Giles GBF-50 is a compact, multi-purpose electric floor fryer only 16-1/4 inches wide, with a 14-inch square fry vat that holds 50 lbs of shortening. Its deep cool zone collects crumbs below the heating area to minimize carbonization, which Giles calls ideal for fresh breaded products and which helps extend oil life. Each load cooks 12 lbs of 8-way cut chicken or 5 lbs of fries, and rapid recovery from 18 kW (or a 10 kW single- or 3-phase option) lets this small unit keep up during unexpected rushes. A computer controller with 50 presets and dual timers adds Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and a multi-language display, and on-board filtration runs a 5-minute filter cycle. It is built in Montgomery, Alabama; the 18 kW version is item 71558 (208V) or 71559 (240V).
Key Features of the GBF-50
More oil and a deep cool zone in the same small frame as the GBF-35, built for breaded products and longer oil life.
Deep Cool Zone
Crumbs settle below the elements, minimizing carbonization so oil stays cleaner when frying fresh breaded foods.
50 lb Oil Capacity
The 14" square vat holds 50 lbs of shortening and cooks 12 lbs of 8-way cut chicken per load.
18 kW or 10 kW
Choose 18 kW 3-phase for maximum recovery, or 10 kW in single- or 3-phase where power is limited.
Computer Controller
50 programmable presets, dual timers, Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and multi-language display.
5-Minute Filtration
The on-board system drains, cleans, and filters in one step with paper media or an optional stainless steel screen.
Safety Features
Over-temperature shutdown, drain valve safety interlocks, and a low-oil detection system protect staff and equipment.
Electrical note: The 18 kW GBF-50 is 3-phase and draws 51 A at 208V (item 71558) or 44 A at 240V (item 71559). 10 kW versions are 71986 (208V 3-ph, 28 A), 71930 (208V 1-ph, 50 A), 71987 (240V 3-ph, 24 A), and 71931 (240V 1-ph, 43 A). Service cords are not included.
Ideal Applications
A 50 lb vat with a deep cool zone in a 16-1/4" frame suits kitchens that fry breaded items all day.
GBF-50 Specifications
| Model / Item No. | Giles GBF-50 / 71558 (208V 3-ph 18 kW), 71559 (240V 3-ph 18 kW) |
|---|---|
| 10 kW Item Nos. | 71986 (208V 3-ph), 71930 (208V 1-ph), 71987 (240V 3-ph), 71931 (240V 1-ph) |
| Type | Electric open-vat floor fryer with deep cool zone |
| Fry Vat | 14" square (229 sq in) |
| Oil Capacity | 50 lbs (22.6 kg) |
| Product Capacity | 12 lbs 8-way cut chicken (3-1/3 lb bird); 5 lbs fries |
| Heating | 18 kW (3-phase) or 10 kW (1- or 3-phase) |
| Amps (18 kW) | 51 A @ 208V; 44 A @ 240V; cord not included |
| Width | 16.2" (412 mm) |
| Depth | 35.4" (900 mm) |
| Height | 49.1" (1247 mm) |
| Controls | Computer controller, 50 presets, dual timers, Cool Mode, Force-Filter, Low Oil, Boil-Out |
| Filtration | On-board, 5-minute filter cycle, 1/2 hp pump |
| Options | Basket lifts, oil saddle top-off, bulk/waste oil connections, KitchenTrac WiFi |
| Mobility | 5" casters, front locking brakes |
| Included | (2) fry baskets, fryer screen, waste oil discharge hose, cleaning brush set, stirring utensil, crumb scoop |
| Crated Weight / Size | 385 lbs; 35" x 45" x 60" |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
How much oil does the Giles GBF-50 hold?
The GBF-50 holds 50 lbs (22.6 kg) of shortening in a 14" square fry vat.
What is the deep cool zone for?
The cool zone sits below the heating elements so crumbs settle where they will not burn, minimizing carbonization and helping oil last longer, which makes the GBF-50 well suited to fresh breaded products.
How much product does it cook per load?
It cooks 12 lbs of 8-way cut chicken or 5 lbs of fries per load.
Which electrical options are available?
18 kW 3-phase (71558 at 208V, 71559 at 240V) or 10 kW in 3-phase or single-phase (71986, 71930, 71987, 71931). Cords are not included.
How does the GBF-50 compare with the GBF-35?
Both share the 16-1/4" frame and 14" vat. The GBF-50 holds 50 lbs of oil and has a deep cool zone; the GBF-35 holds 35 lbs for lower operating cost on fries.
What are its dimensions?
The GBF-50 is 16.2" wide, 35.4" deep, and 49.1" tall, and it ships crated at 385 lbs.
