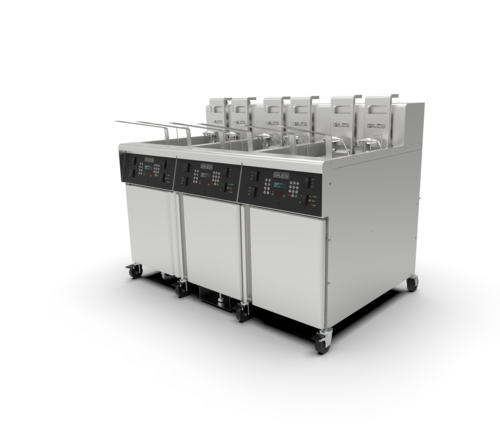

Giles GBF-80/80/80G (GBF-80GX3, 71988 / 71989) — 61-5/16" 3-Well Gas Fryer Battery
The Giles GBF-80/80/80G, shown on Giles' banked-fryer page as the GBF-80GX3, lines up three 18-inch square gas fry vats in one 61-5/16-inch battery. Each vat holds 80 lbs of shortening and is fired at 80,000 BTU through Giles' patented heat exchanger (U.S. Patent 10,928,140), which cooks evenly with rapid recovery and significantly lower flue stack temperatures. Each vat cooks 26 lbs of 8-way cut chicken without baskets, about 78 lbs per round across the battery, or 5 lbs of fries per vat. Every vat has Giles' computer controller with 50 presets, Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and a multi-language display, and an on-board filtration system with a 1/2 hp pump services all three vats. Banked units add optional oil top-off and bulk or waste oil connections. It is built in Montgomery, Alabama, as item 71988 (natural gas) or 71989 (LP gas).
Key Features of the GBF-80/80/80G
Three high-efficiency gas vats with shared filtration and oil-handling options for the busiest gas kitchens.
Patented Heat Exchanger
80,000 BTU per vat with rapid recovery, reduced fuel usage, and lower flue stack temperatures.
Three 80 lb Vats
Three 18" square vats each hold 80 lbs of oil and cook 26 lbs of 8-way cut chicken per load.
Computer Controllers
50 presets per vat with Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and multi-language display.
Shared Filtration
An on-board system with a 1/2 hp pump filters all three vats; proper use can extend oil life by 50%.
Oil Handling Options
Add an oil top-off reservoir, or connections to bulk fresh oil and waste oil handling systems.
Safety Interlocks
Enhanced interlocks, high-limit oil temperature, maximum heat exchanger temperature, and low-oil alerts.
Gas & electrical note: Order 71988 for natural gas (7" w.c.) or 71989 for LP gas (12" w.c.). Each vat uses a 1/2" gas supply line with regulator included, plus a 120V, 5.9 A cord set with a NEMA 5-15 plug (one per vat). Follow Giles' installation instructions. Basket lifts are specified left to right, for example 71988-101-T.
Ideal Applications
Three 80 lb gas vats in about five feet suit high-volume operations on natural or LP gas.
GBF-80/80/80G Specifications
| Model / Item No. | Giles GBF-80/80/80G (GBF-80GX3) / 71988 (natural gas), 71989 (LP gas) |
|---|---|
| Type | Gas open-vat banked fryer, 3-bank |
| Vats | (3) 18" square (342 sq in each) |
| Oil Capacity | 80 lbs (36 kg) per vat; 240 lbs total |
| Product Capacity | 26 lbs 8-way cut chicken per vat without baskets; 5 lbs fries per vat |
| Gas Input | 80,000 BTU/hr per vat; 240,000 BTU total |
| Inlet Pressure | Natural 7" w.c.; LP 12" w.c.; 1/2" supply line, regulator included |
| Electrical | 120V, 60 Hz, 1-phase, 5.9 A per vat; NEMA 5-15 cord set per vat included |
| Width | 61.3" (1558 mm) |
| Depth | 40.8" (1036 mm) |
| Height | 48.9" (1241 mm) |
| Controls | Computer controllers, 50 presets, Cool Mode, Force-Filter, Low Oil, Boil-Out |
| Filtration | On-board system, 1/2 hp pump |
| Options | Basket lifts, oil top-off reservoir, bulk fresh / waste oil connections, KitchenTrac WiFi |
| Included | (2) fry baskets and crumb screen per well, waste oil discharge hose, brush set, stirring utensil, steel crumb scoop |
| Weight | 1,140 lbs uncrated; 1,346 lbs crated (74" x 47" x 54") |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
Is the GBF-80/80/80G the same as the Giles GBF-80GX3?
Yes. Giles lists the 3-well GBF-80G battery as GBF-80GX3 on its banked fryer page; the factory item numbers are 71988 (natural gas) and 71989 (LP gas).
How much oil does it hold?
Each of the three 18" vats holds 80 lbs of shortening, for 240 lbs in total.
What is the total BTU rating?
Each vat is rated at 80,000 BTU/hr, for 240,000 BTU/hr across the battery.
Does it need electricity?
Yes. Each vat uses a 120V, 5.9 A cord set with a NEMA 5-15 plug for its controls; one cord set per vat is included.
Can I add oil top-off or bulk oil connections?
Yes. Oil top-off reservoirs and bulk fresh or waste oil connections are available on 2- and 3-bank GBF-80G units.
What are the dimensions?
The battery is 61.3" wide, 40.8" deep, and 48.9" tall, and it weighs 1,140 lbs uncrated.
| Brand | Giles Enterprises |
-
