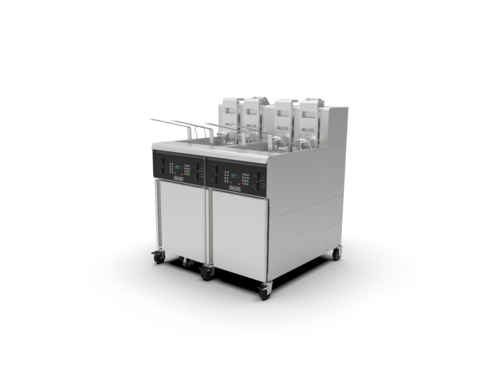

Giles GBF-80/80G (GBF-80GX2, 71910 / 71911) — 40-7/8" 2-Well Gas Fryer Battery
The Giles GBF-80/80G, shown on Giles' banked-fryer page as the GBF-80GX2, pairs two 18-inch square gas fry vats in one 40-7/8-inch battery. Each vat holds 80 lbs of shortening and is fired at 80,000 BTU through Giles' patented heat exchanger (U.S. Patent 10,928,140), which cooks evenly with rapid recovery while producing significantly lower flue stack temperatures. Each vat cooks 26 lbs of 8-way cut chicken without baskets, about 52 lbs per round, or 5 lbs of fries. Every vat has Giles' computer controller with 50 presets, Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and a multi-language display, and an on-board filtration system with a 1/2 hp pump services both vats. Banked units also offer oil top-off and bulk or waste oil connections. It is built in Montgomery, Alabama, as item 71910 (natural gas) or 71911 (LP gas).
Key Features of the GBF-80/80G
Two high-efficiency gas vats, shared filtration, and oil-handling options that are only available on banked GBF-80G units.
Patented Heat Exchanger
80,000 BTU per vat with rapid recovery, reduced fuel usage, and lower flue stack temperatures.
Two 80 lb Vats
Two 18" square vats each hold 80 lbs of oil and cook 26 lbs of 8-way cut chicken per load.
Computer Controllers
50 presets per vat with Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and multi-language display.
Shared Filtration
An on-board system with a 1/2 hp pump filters both vats; proper use can extend oil life by 50%.
Oil Handling Options
Banked units can add an oil top-off reservoir, or connections to bulk fresh oil and waste oil systems.
Safety Interlocks
Enhanced interlocks, high-limit oil temperature, maximum heat exchanger temperature, and low-oil alerts.
Gas & electrical note: Order 71910 for natural gas (7" w.c.) or 71911 for LP gas (12" w.c.). Each vat uses a 1/2" gas supply line with regulator included, plus a 120V, 5.9 A cord set with a NEMA 5-15 plug (one per vat). Follow Giles' installation instructions. Basket lifts are specified left to right, for example 71910W-10-TW.
Ideal Applications
Two 80 lb gas vats in about 41 inches suit high-volume kitchens running on natural or LP gas.
GBF-80/80G Specifications
| Model / Item No. | Giles GBF-80/80G (GBF-80GX2) / 71910 (natural gas), 71911 (LP gas) |
|---|---|
| Type | Gas open-vat banked fryer, 2-bank |
| Vats | (2) 18" square (342 sq in each) |
| Oil Capacity | 80 lbs (36 kg) per vat; 160 lbs total |
| Product Capacity | 26 lbs 8-way cut chicken per vat without baskets; 5 lbs fries per vat |
| Gas Input | 80,000 BTU/hr per vat; 160,000 BTU total |
| Inlet Pressure | Natural 7" w.c.; LP 12" w.c.; 1/2" supply line, regulator included |
| Electrical | 120V, 60 Hz, 1-phase, 5.9 A per vat; NEMA 5-15 cord set per vat included |
| Width | 40.9" (1039 mm) |
| Depth | 40.8" (1036 mm) |
| Height | 48.9" (1241 mm) |
| Controls | Computer controllers, 50 presets, Cool Mode, Force-Filter, Low Oil, Boil-Out |
| Filtration | On-board system, 1/2 hp pump |
| Options | Basket lifts, oil top-off reservoir, bulk fresh / waste oil connections, KitchenTrac WiFi |
| Included | (2) fry baskets and crumb screen per well, waste oil discharge hose, brush set, stirring utensil, steel crumb scoop |
| Weight | 780 lbs uncrated; 900 lbs crated (53" x 47" x 54") |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
Is the GBF-80/80G the same as the Giles GBF-80GX2?
Yes. Giles lists the 2-well GBF-80G battery as GBF-80GX2 on its banked fryer page; the factory item numbers are 71910 (natural gas) and 71911 (LP gas).
How much oil does it hold?
Each of the two 18" vats holds 80 lbs of shortening, for 160 lbs in total.
What is the total BTU rating?
Each vat is rated at 80,000 BTU/hr, for 160,000 BTU/hr across the battery.
Does it need electricity?
Yes. Each vat uses a 120V, 5.9 A cord set with a NEMA 5-15 plug for its controls; one cord set per vat is included.
Can I add oil top-off or bulk oil connections?
Yes. Oil top-off reservoirs and bulk fresh or waste oil connections are available on 2- and 3-bank GBF-80G units.
What are the dimensions?
The battery is 40.9" wide, 40.8" deep, and 48.9" tall, and it weighs 780 lbs uncrated.
