$ 39,599.00Giles Enterprises GBF-80G (71788 / 71872) 21-3/4 Inch Gas Floor Fryer, 18 Inch Vat, 80 lb Oil Capacity, 80,000 BTU, Built-In Filtration

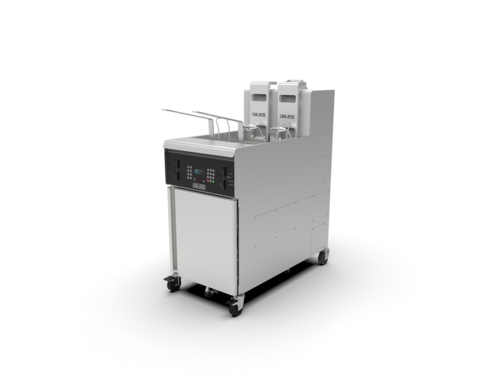

Giles GBF-80G (71788 / 71872) — 21-3/4" Gas Floor Fryer, 80 lb, 80,000 BTU
The Giles GBF-80G is a high-efficiency gas floor fryer with an 18-inch square vat that holds 80 lbs of shortening, in a frame only 21-3/4 inches wide. Its 80,000 BTU patented heat exchanger (U.S. Patent 10,928,140) cooks evenly with rapid recovery while producing significantly lower flue stack temperatures, and Giles reports efficiency in the top 95th percentile of gas fryers tested by California's Energy Wise program. Each load cooks 26 lbs of 8-way cut chicken without baskets or 5 lbs of fries, and a deep cool zone helps limit crumb carbonization. The computer controller stores 50 presets with Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and a multi-language display, and an on-board filtration system with a 1/2 hp pump can extend oil life by 50%. It is built in Montgomery, Alabama, as item 71788 (natural gas) or 71872 (LP gas).
Key Features of the GBF-80G
A patented heat exchanger, an 80 lb vat, and Giles' filtration and controls in a narrow gas fryer.
Patented Heat Exchanger
80,000 BTU with rapid recovery, even cooking, reduced fuel usage, and lower flue stack temperatures.
18" Vat, 80 lb Oil
A 342 sq in vat holds 80 lbs of shortening and cooks 26 lbs of 8-way cut chicken per load.
Computer Controller
50 programmable presets with Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection, and multi-language display.
On-Board Filtration
A 1/2 hp pump powers the built-in filter system; proper use can extend oil life by 50%.
Safety Interlocks
Enhanced interlocks, high-limit oil temperature, maximum heat exchanger temperature, and low-oil alerts.
120V Plug-In Controls
Electronics run on 120V at just 5.9 A, and the cord set with a NEMA 5-15 plug is included.
Gas & option note: Order item 71788 for natural gas (7" w.c. input pressure) or 71872 for LP gas (12" w.c.). The fryer uses a 1/2" gas supply line, and a regulator is included. Oil top-off and bulk oil plumbing are offered on 2- and 3-bank GBF-80G units only, not on the single fryer. Follow Giles' installation instructions.
Ideal Applications
An 80 lb gas vat in under two feet of width suits kitchens that want capacity and lower fuel use.
GBF-80G Specifications
| Model / Item No. | Giles GBF-80G / 71788 (natural gas), 71872 (LP gas) |
|---|---|
| Type | Gas open-vat floor fryer |
| Fry Vat | 18" square (342 sq in) |
| Oil Capacity | 80 lbs (36 kg) |
| Product Capacity | 26 lbs 8-way cut chicken without baskets; 5 lbs fries |
| Gas Input | 80,000 BTU/hr; 1/2" supply line; regulator included |
| Inlet Pressure | Natural 7" w.c.; LP 12" w.c. |
| Electrical | 120V, 60 Hz, 1-phase, 5.9 A; cord set with NEMA 5-15 plug included |
| Width | 20.4" (519 mm) per spec sheet; 21-3/4" overall |
| Depth | 40.8" (1036 mm) |
| Height | 48.9" (1241 mm) |
| Controls | Computer controller, 50 presets, Cool Mode, Force-Filter, Low Oil, Boil-Out, password protection |
| Filtration | On-board system, 1/2 hp pump |
| Options | Automatic basket lift; KitchenTrac WiFi; tool caddy/splash shield |
| Included | (2) fry baskets, crumb screen, waste oil discharge hose, scrub brush, straight and L-shape round brushes, stirring utensil, steel crumb scoop |
| Weight | 410 lbs uncrated; 485 lbs crated (35" x 47" x 54") |
| Warranty | 24 months parts and labor |
Frequently Asked Questions
How much oil does the Giles GBF-80G hold?
The GBF-80G holds 80 lbs (36 kg) of shortening in an 18" square vat.
What is the BTU rating?
It is rated at 80,000 BTU/hr and uses Giles' patented heat exchanger (U.S. Patent 10,928,140) for rapid recovery and lower flue temperatures.
Which item number do I need for natural or LP gas?
Item 71788 is the natural gas single fryer and item 71872 is the LP gas single fryer.
Does the GBF-80G need electricity?
Yes, for the controls and filter pump: 120V, 60 Hz, single-phase at 5.9 A. The cord set with a NEMA 5-15 plug is included.
How much chicken does it cook per load?
Giles rates it at 26 lbs of 8-way cut chicken without baskets, or 5 lbs of fries per load.
Is oil top-off available on the single GBF-80G?
No. Oil top-off and bulk oil plumbing are currently offered only on 2- and 3-bank GBF-80G units.
| Brand | Giles Enterprises |
-
