$ 11,699.00Giles Enterprises EOF-20/20/20 (71720 / 71722) 65-9/16 Inch Electric Banked 3-Well Fryer Battery, (3) 115 lb Vats, 72 kW Total, Built-In Filtration

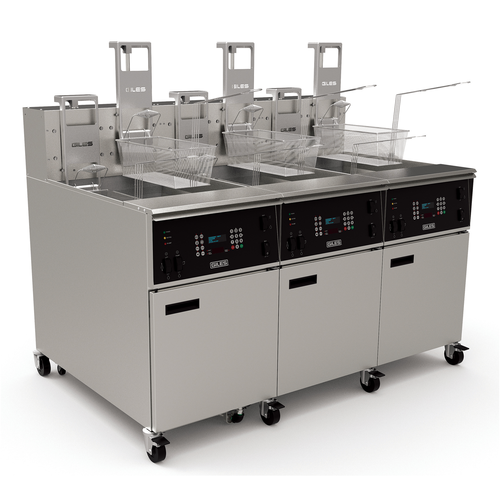

Giles EOF-20/20/20 (71720 / 71722) — 65-9/16" Electric 3-Well Fryer Battery, 3 x 115 lb
The Giles EOF-20/20/20 banks three EOF-20 open-vat electric fryers into a single 65-9/16-inch battery, the highest-capacity configuration in the EOF-20 series. Each well has its own 20" x 20" vat holding 115 lbs of shortening and its own 24 kW heating system, so the battery cooks 27 to 30 lbs of 8-way cut chicken per well per load — roughly 81 to 90 lbs across all three wells — while the crew runs different products, oils, or temperatures in each vat. One central on-board filtration system with a 1/2 hp pump serves all three vats, so oil is filtered at the battery without a separate filter cart. Each well's computer controller stores 50 menu presets with dual timers and adds Auto-Cool, Force-Filter, and Boil-Out programs. Giles builds the EOF-20/20/20 in Montgomery, Alabama, as item 71720 (208V) or 71722 (480V).
Key Features of the EOF-20/20/20
The EOF-20/20/20 combines three complete EOF-20 fryers under one central filter system for high-volume production with menu versatility.
Three 20" x 20" Open Vats
Each well holds 115 lbs of shortening and handles 27–30 lbs of 8-way cut chicken per load, for roughly 81–90 lbs across the battery.
24 kW Per Well
Each vat has its own 24,000 W heating system for rapid temperature recovery, reducing oil saturation and keeping breading crisp at full volume.
One Central Filter System
A single on-board filtration system with a 1/2 hp pump services all three vats, so each well's oil can be filtered without moving equipment.
Computer Controller Per Well
Dual timers and 50 menu presets per well, plus Auto-Cool, Force-Filter, Boil-Out, optional password security, and multi-language display.
Built-In Safety Interlocks
Dual drain valve interlocks, high-limit shutdown at 450°F, and a maximum element temperature interlock on each well.
Flexible Auto Basket Lifts
Automatic basket lifts can be added to all wells (-L), to one well (-L1), or to two wells (-L2) to lower and raise baskets at the start and end of each cook.
Electrical note: Each of the three wells needs its own power supply: 208V 3-phase at 76 A per well (item 71720) or 480V 3-phase at 33 A per well (item 71722), 3-wire plus ground. Service cords are not included — confirm your voltage before ordering, and plan for installation by a licensed electrician under a properly sized exhaust hood. The battery ships crated at 1,005 lbs.
Ideal Applications
Three 115 lb vats under one filter system suit the busiest frying operations, where capacity and separate oils both matter.
EOF-20/20/20 Specifications
| Model / Item No. | Giles EOF-20/20/20 / 71720 (208V), 71722 (480V) |
|---|---|
| Type | Electric open-vat banked fryer battery, 3 wells |
| Vat Size | (3) 20" x 20" |
| Shortening Capacity | 115 lbs (52 kg) per well |
| Product Capacity | 27–30 lbs of 8-way cut chicken per well per load |
| Heating | 24 kW per well; 72 kW total |
| Max Cooking Temperature | 375°F; high-limit shutdown at 450°F |
| Electrical | 208V 3-ph, 76 A per well or 480V 3-ph, 33 A per well; separate supply per well; cords not included |
| Width | 65-9/16" (1665 mm) |
| Depth | 41-13/16" (1062 mm) |
| Height | 46-1/8" (1172 mm) |
| Controls | Computer controller per well, dual timers, 50 presets, Auto-Cool, Force-Filter, Boil-Out |
| Filtration | Central on-board system, 1/2 hp pump, serves all vats |
| Standard Equipment | (2) cooking baskets per well, (1) 12x12 scoop basket, brush set, stirring utensil, discharge hose, filter pan insert, crumb scoop |
| Mobility | 5" casters, front casters with locking brakes |
| Options | Automatic basket lifts (-L all wells, -L1 one well, -L2 two wells); KitchenTrac® WiFi remote monitoring |
| Crated Weight / Size | 1,005 lbs; 72" x 45" x 60" |
| Warranty | 2 years parts and labor |
Frequently Asked Questions
How much oil does the Giles EOF-20/20/20 hold?
Each of the three 20" x 20" vats holds 115 lbs (52 kg) of shortening, and each cooks 27 to 30 lbs of 8-way cut chicken per load.
What are Giles item numbers 71720 and 71722?
They are the factory item numbers for the EOF-20/20/20: 71720 is the 208V 3-phase version and 71722 is the 480V 3-phase version. Suffixes -L, -L1, and -L2 add basket lifts to all, one, or two wells.
What electrical service does the EOF-20/20/20 need?
Each well draws 24 kW and needs its own supply: 76 amps at 208V 3-phase or 33 amps at 480V 3-phase, wired 3-wire plus ground. Service cords are not included.
Do all three wells share one filter?
Yes. One central on-board filtration system with a 1/2 hp pump serves all three vats in the battery.
What are the dimensions of the EOF-20/20/20?
The battery is 65-9/16 inches wide, 41-13/16 inches deep, and 46-1/8 inches tall, and it ships crated at 1,005 lbs.
Can each well run a different product?
Yes. Each well has its own vat, heating system, and computer controller with 50 presets and dual timers, so all three can cook different products at different settings.
