$ 2,938.00Giles Enterprises GHM-4C SELF (72057) 44-7/16 Inch Countertop Self-Service Heated Merchandiser, 3-Well, LED Lighting, 208/240V

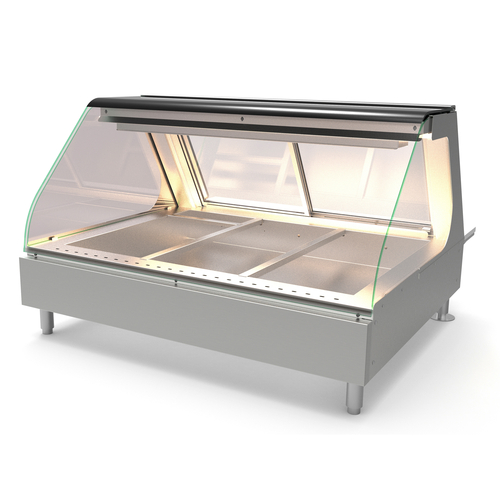

Giles GHM-4C SELF (72057) — 44-7/16" 3-Well Self-Service Heated Merchandiser
The Giles GHM-4C SELF (Giles base item 72057) is the 44-7/16-inch, three-well GHM-C LED heated merchandiser configured for full customer self-service. Shoppers reach in from the front to pick up wrapped chicken, sandwiches, or boxed sides, while staff restock from the rear sliding doors — and a glass sneeze guard is included to protect the food. Each of the three food wells holds a full-size pan plus a one-third-size pan and has its own upper ceramic and lower Calrod® heat controls, so crisp fried items and moist sides can each be held at the right temperature in the same case. A 2500K warm LED lighting system makes the display inviting without the hard-to-source bulbs of older merchandisers. Built of all stainless steel and manufactured and assembled in the USA, the GHM-4C SELF runs on 208/240V single-phase power and fits a counter or the matching Giles PUP-4 mobile base.
Key Features of the GHM-4C SELF
The self-service GHM-4C shares the GHM-C platform's per-well heat and LED package, set up so customers serve themselves and staff spend their time restocking rather than portioning.
Customer Self-Service
Configured for full customer self-service across all three wells, with a glass sneeze guard included to protect food at the customer opening.
Upper & Lower Heat Per Well
Independent upper ceramic and lower Calrod® controls in each well let wrapped and open items be held side by side at different settings.
2500K LED Lighting
A warm 2500K LED system replaces outdated, hard-to-source bulbs and keeps grab-and-go food looking fresh behind the glass.
Flexible Pan Layout
Each well takes one full-size plus one 1/3-size pan from 2-1/2" to 4" deep, or a custom layout of 1/4, 1/3, 1/2, and full-size pans.
Rear Restocking Doors
Mirror-tint side glass and rear sliding doors let staff refill pans from behind the case without interrupting customers at the front.
Built for Easy Cleaning
All stainless construction, removable side glass, pneumatic front glass struts, and lift-out rear doors on easy-clean tracks.
Installation note: The GHM-4C SELF is field wired at 208/240V, 60 Hz, single phase (13.0 A) through a strain relief fitting — there is no cord and plug, so plan for a licensed electrician. Food pans and pan grates are not included; a basic set of pan support dividers is supplied, and some layouts need additional dividers.
Ideal Applications
A three-well self-service case lets a small staff run a hot grab-and-go program on a 44-7/16-inch footprint.
GHM-4C SELF Specifications
| Model / Base Item No. | Giles GHM-4C SELF / 72057 |
|---|---|
| Type | Countertop heated food merchandiser, full customer self-service |
| Food Wells | 3; each holds (1) full-size + (1) 1/3-size pan |
| Pan Depth | 2-1/2" to 4" (pans not included) |
| Width | 44-7/16" (1124 mm) |
| Depth | 44-1/8" (1121 mm) |
| Height | 28-13/16" (732 mm) |
| Heating | Independent upper ceramic and lower Calrod® control per well |
| Lighting | LED, 2500K warm white |
| Electrical | 208/240V, 60 Hz, 1-phase, 2.7–3.2 kW, 13.0 A |
| Connection | Field wired through strain relief fitting |
| Glass | Curved tempered front (pneumatic opening); mirror-tint side glass and rear sliding doors; sneeze guard |
| Construction | All stainless steel |
| Included | Glass sneeze guard, folding HDPE cutting board, basic pan support divider set |
| Options | 4" adjustable legs; utensil holder cutting board; Giles PUP-4 mobile base |
| Crated Weight / Size | 372 lbs; 50" x 45" x 44" (57 cu ft) |
| Origin | Manufactured and assembled in the USA |
| Warranty | Giles 24-month limited warranty |
Frequently Asked Questions
Is the Giles GHM-4C SELF fully self-service?
Yes. The GHM-4C SELF is configured for full customer self-service across all three wells, and a glass sneeze guard is included. Staff restock from the rear sliding doors.
How many pans does the GHM-4C SELF hold?
It has three food wells, and each well holds one full-size pan plus one 1/3-size pan from 2-1/2 to 4 inches deep. Pans are not included.
What power does the GHM-4C SELF require?
It runs on 208/240V, 60 Hz, single-phase power at 2.7 to 3.2 kW and 13.0 amps, field wired through a strain relief fitting.
What are the dimensions of the GHM-4C SELF?
The case is 44-7/16 inches wide, 44-1/8 inches deep, and 28-13/16 inches tall. It ships crated at 372 lbs.
What is Giles item number 72057?
72057 is the Giles base item number for the GHM-4C heated merchandiser; the self-service version is ordered with the corresponding service style code.
Is there a mobile base for the GHM-4C SELF?
Yes. The Giles PUP-4 (part 71654) is a 44-5/8-inch stainless steel portable base with locking casters designed to hold the GHM-4C.
