Airrex HSC-60R 220/1 Portable Spot Cooler 60000 BTU 5 Ton R-454B Refrigerant 220V Single Phase Dual 8 Inch Nozzles Built-In Condensate Pump ETL Listed
$ 12,608.83
$ 12,608.83
Airrex HSC-60R 460/3 Portable Spot Cooler 60000 BTU 5 Ton R-454B Refrigerant 460V 3-Phase Dual 8 Inch Nozzles Built-In Condensate Pump ETL Listed
$ 13,322.32
$ 13,322.32Airrex HSC-60R 220/3 Portable Spot Cooler 60000 BTU 5 Ton R-454B Refrigerant 220V 3-Phase Dual 8 Inch Nozzles Built-In Condensate Pump ETL Listed

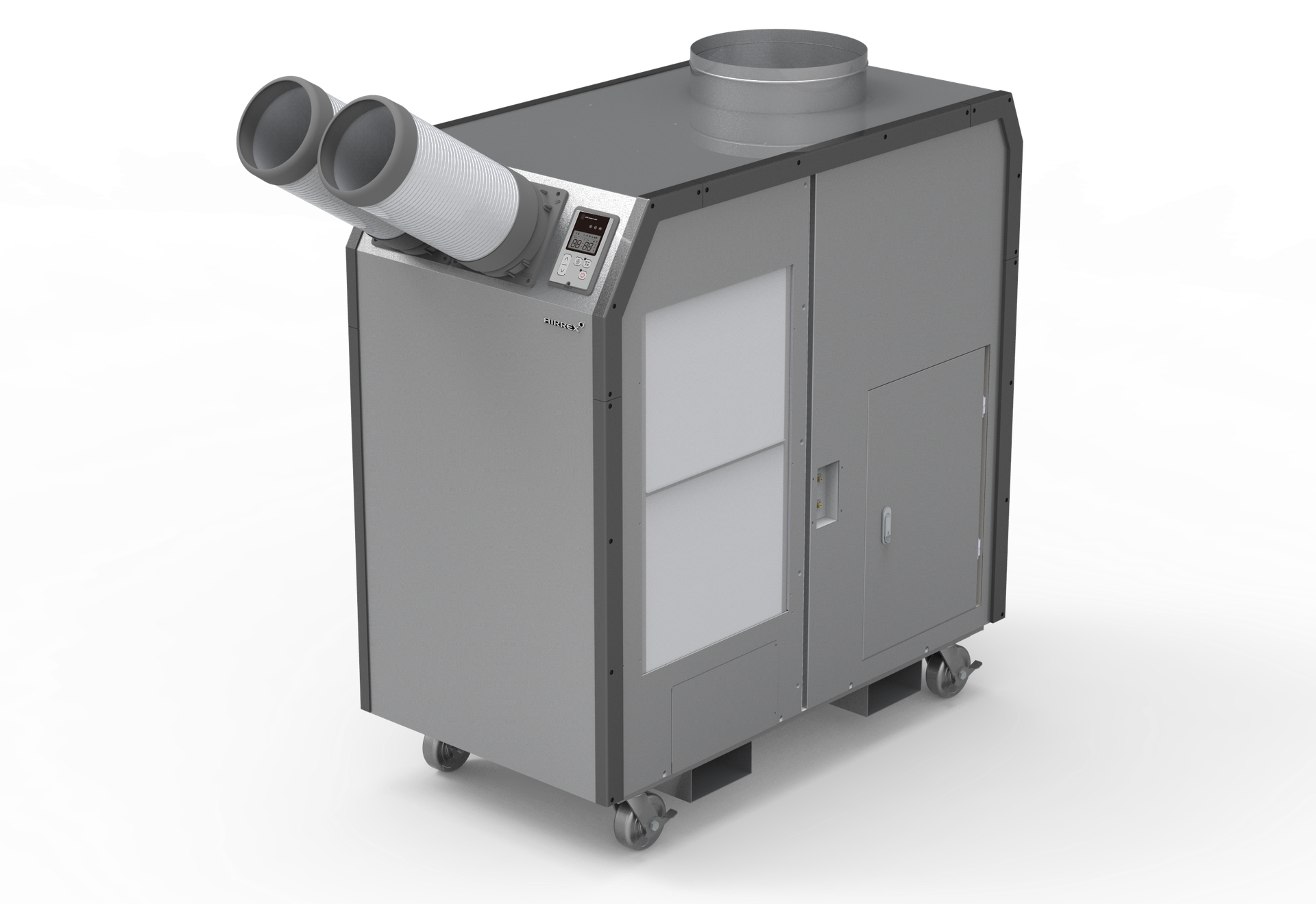

Airrex HSC-60R 220/3 Portable Spot Cooler — 60,000 BTU, 5-Ton, R-454B, 3-Phase
The Airrex HSC-60R 220/3 is a heavy-duty 5-ton portable spot cooler engineered for high-demand directed cooling in commercial and industrial spaces with 220V 3-phase electrical service. Same 5-ton cooling output and 8" dual-nozzle design as the 220/1 model — but with the lower current draw (18.5 A vs 27.3 A) and smaller fuse requirement (30 A vs 50 A) that 3-phase service makes possible. Uses modern R-454B refrigerant (8.38 lbs), includes a built-in condensate pump, and ships ETL listed.
Key Features
Engineered for dependable performance with the features that matter most.
60,000 BTU Directed Cooling
5-ton cooling capacity at 95°F/40% — high-volume spot cooling for industrial sites with 220V 3-phase service, operating up to 118°F ambient.
Dual 8" Cold Air Nozzles
Two front-mounted 8" diameter cold air nozzles deliver concentrated, high-volume directed airflow for serious spot-cooling jobs.
3-Phase Efficiency
220V 3-phase reduces current draw to just 18.5 A (vs 27.3 A on the 220/1 single-phase version), requiring only a 30-amp fuse and smaller wiring.
R-454B Refrigerant (8.38 lbs)
Modern low-GWP R-454B refrigerant — meets current environmental standards while delivering 5 tons of reliable spot cooling.
Built-In Condensate Pump
Auto condensate pump is included as standard — handles up to 88.8 gal/day max dehumidification load without manual tank emptying.
ETL Listed & Protected
ETL listed with high/low-pressure switches, 3-minute compressor delay, thermostat protector, fan motor protection, and tank shut-off.
Note: The HSC-60R 220/3 requires 220V 3-phase service — not a standard single-phase outlet. Operating from 65-118°F ambient. The 16" top warm air exhaust supports an optional warm air duct kit. An optional HEPA filter kit is available for the HSC-36R/60R/70R series.
Ideal Applications
5-ton directed spot cooling for industrial sites with 220V 3-phase power — manufacturing, plants, and major commercial operations.
Specifications
| Model | Airrex HSC-60R 220/3 |
|---|---|
| Cooling Capacity | 60,000 BTU/h |
| Refrigerant | R-454B (8.38 lbs, low-GWP) |
| Power Supply | 220V, 3 Phase, 60 Hz |
| Voltage Range | 187-242 V |
| Current (Cooling) | 18.5 A |
| Power Consumption | 5.98 kW |
| Fuse Size | 30 A |
| Cooling Operating Range | 65°F to 118°F |
| Dehumidification (Max / Nominal) | 88.8 / 62.6 gal/day |
| Indoor Airflow | 1,850 CFM |
| Outdoor Airflow | 3,020 CFM |
| Cold Air Discharge | Two 8" diameter front nozzles |
| Warm Air Discharge | 16" diameter top flange |
| Max Equivalent Duct Length (Outdoor) | 70 ft |
| Air Filters | Aluminum + Stainless Mesh (removable, washable, both sides) |
| Sound Level (With Exhaust Duct / Without) | 63 / 65 dB(A) |
| Condensate Pump | Included (built-in) |
| Safety | High/low pressure switches, 3-min compressor delay, thermostat protector, fan motor protection, auto tank shut-off |
| Dimensions (W × D × H) | 29" × 54" × 57" |
| Net Weight | 628 lbs |
| Mobility | Four 5" swivel casters (4 locking) |
| Certification | ETL Listed |
| Warranty | 1 year unit, 3 years compressor |
Frequently Asked Questions
What's the difference between 220/1 and 220/3?
Same 5-ton capacity and R-454B refrigerant. The 220/3 version uses 3-phase 220V service for lower current draw (18.5 A vs 27.3 A) and smaller fuse (30 A vs 50 A). Choose based on whether your facility has 3-phase hookups.
Will the HSC-60R 220/3 run on single-phase 220V?
No. The HSC-60R 220/3 requires 220V 3-phase service. For single-phase 220V hookups, choose the HSC-60R 220/1 model instead.
What's the cooling output?
60,000 BTU/h of directed cooling (5-ton) through two 8" front cold air nozzles. Operating range 65-118°F ambient.
Is the condensate pump built in?
Yes. The HSC-60R 220/3 includes a built-in auto condensate pump as standard, handling up to 88.8 gal/day max dehumidification load.
What refrigerant does the HSC-60R 220/3 use?
Modern, low-GWP R-454B refrigerant with an 8.38 lb charge. The "R" suffix indicates this updated refrigerant generation versus older R-410A versions.
Is HEPA filtration available?
Yes. An optional HEPA filter kit is available for the HSC-36R/60R/70R series — useful for jobsites or healthcare environments needing extra filtration.
