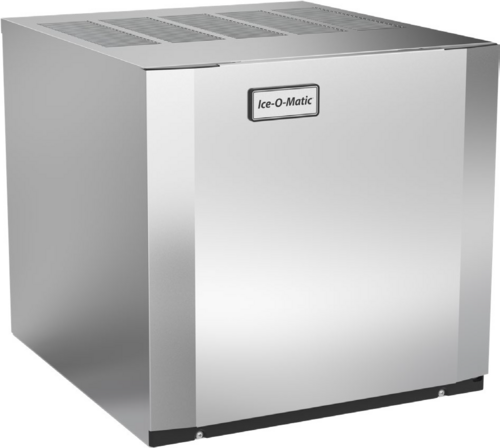

Elevation Series™ CIM0520FA90 Ice Maker 500 lb Daily Production Capacity

Ice-O-Matic CIM0520FA90 Ice Maker, Cube-Style

The Ice-O-Matic CIM0520FA90 is a modular cube ice maker from the Elevation Series™. It is an air-cooled unit with a self-contained condenser and features a dual exhaust for top/side air discharge. The ice maker is designed to produce full-size cubes and includes built-in antimicrobial protection. It also features an LED status display and one-touch sanitize/descaling controls. The unit is constructed with dishwasher-safe food zone components and uses R290 refrigerant.

Specifications

• Dimensions: 27.00 x 27.00 x 25.00 in
• Weight: 139.00 lbs
• Ice Production: Approximately 561 lbs per 24 hours at 70°F/50°F
• Voltage/Hertz/Phase: 115/60/1
• Water Usage: 17 gallons per 100 lbs of ice
• Refrigerant: R290

Applications

• Producing ice for beverage service in restaurants
• Supplying ice for food preservation in commercial kitchens
• Providing ice for customer self-service in cafeterias

Certifications

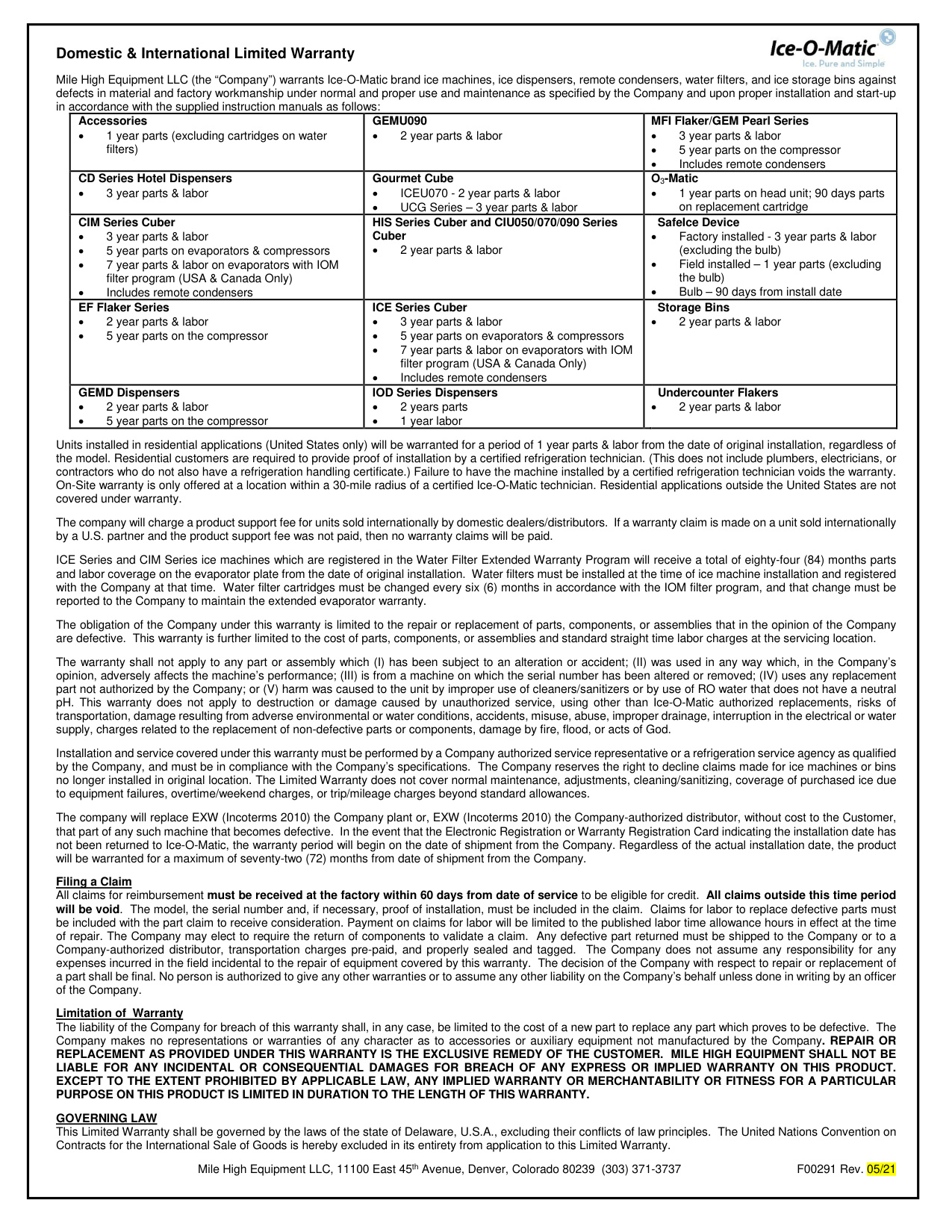

Warranty

Domestic & International Limited Warranty: 3 year parts & labor on the ice maker, 5 year parts on the evaporator and compressor, 7 year parts & labor on evaporators with IOM filter program (USA & Canada Only).

From The Manufacturer

• Elevation Series™ Modular Cube Ice Maker
• air-cooled
• self-contained condenser
• dual exhaust top/side air discharge
• 22" W
• approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°)
• full-size cubes
• PURE ICE® built-in antimicrobial protection
• LED status display
• one touch sanitize/descaling controls
• dishwasher safe food zone components
• R290 refrigerant cULus
• NSF
• CE
• BPA Free
• ENERGY STAR®
