Elevation Series™ CIM0520HT90 Ice Maker 520 lb Daily Production Capacity

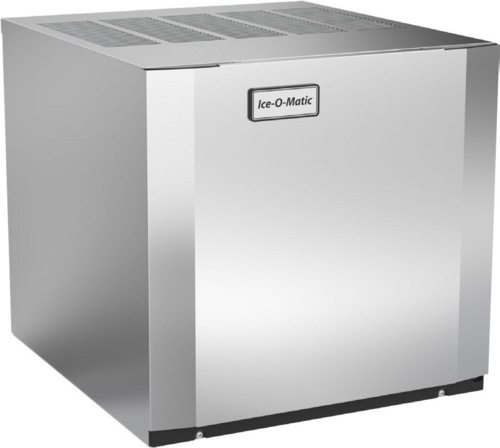

Ice-O-Matic CIM0520HT90 Ice Maker, Cube-Style
The Ice-O-Matic CIM0520HT90 is a modular cube ice maker from the Elevation Series™. It features an air-cooled, self-contained condenser with top air discharge. The unit is designed for efficient ice production, capable of producing approximately 525 pounds of half-size cubes per 24 hours under optimal conditions. The ice maker is constructed with corrosion-resistant aluminum and includes a front-facing evaporator for easy cleaning.
Specifications
- Dimensions: 27.00 x 27.00 x 25.00 in
- Weight: 141.00 lbs
- Voltage/Hertz/Phase: 115/60/1
- Ice Production: 525 lbs/24 hours at 70°F air/50°F water
- Refrigerant: R290
- Water Usage: 17 gallons per 100 lbs of ice
- BTU: 8200 per hour
Harvest Assist technology provides consistent ice production while reducing energy consumption and increasing capacity.
Applications
- Ice production for restaurant kitchens
- Supplying ice for bar and cafe settings
- Ice storage in commercial food service operations
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This product complies with the standards imposed by Conformance European (CE).
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.
Warranty
Ice Maker: 3 years parts and labor. Evaporator and Compressor: 5 years parts. Evaporator: 7 Years Parts and Labor Water Filter (if enrolled in the filter program).
From The Manufacturer
- Elevation Series™ Modular Cube Ice Maker in R290
- air-cooled
- self-contained condenser
- top air discharge
- 22" W
- approximately 525 lb production/24 hours at 70°/50° (400 lb at 90°/70°)
- half-size cubes
- LED status display
- one touch sanitize/descaling controls
- dishwasher safe food zone components
- R290 refrigerant
- cULus
- NSF
- CE
- ENERGY STAR®
| Brand | Ice-O-Matic |
| Brand: Ice-O-Matic |
-
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
![[Financing Available] Financing Available](/web/image/dr.website.content/5/image/%5BFinancing%20Available%5D%20Financing%20Available?unique=078fc30){kind=small}
Guaranteed Safe Checkout
Call for Help
Resources
| SKU | CIM0520HT90 |
| Brand | Ice-O-Matic |
| Weight | 141.00 lbs |
| Dimensions (HxWxD) | 27.00 x 27.00 x 25.00 inches |
| Height | 27.00 |
| Width | 27.00 |
| Depth | 25.00 |
| Width (side - side) | 20 - 29" wide |
| Production per 24 hr | 501 - 600 lb = 228 - 272 kg |
| Refrigeration | self-contained refrigeration |
| Condenser Type | air-cooled |
| Ice Type | half size / half dice cubes |
| Energy Efficiency | ENERGY STAR® |
|
