Elevation Series CIM0530FR49 Ice Maker 530 lb Daily Production Capacity

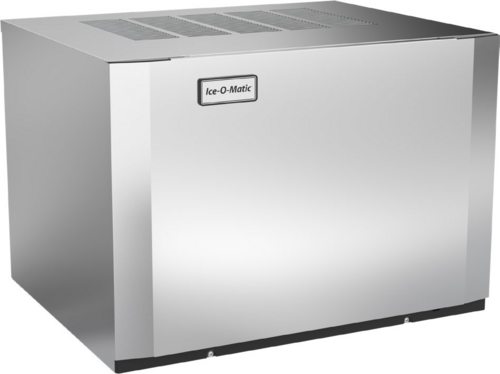

Ice-O-Matic CIM0530FR49 Ice Maker, Cube-Style

The Ice-O-Matic CIM0530FR49 is a modular cube ice maker from the Elevation Series™. It is designed for flexible application and can be easily installed on top of bins or dispensers. The unit features a front-facing evaporator for easy cleaning and includes dishwasher-safe plastic components. The ice maker is constructed from corrosion-resistant and fingerprint-proof aluminum, ensuring durability and reliability.

Specifications

• Weight: 173.00 lbs
• Dimensions: 27.00 x 27.00 x 33.00 in
• Ice Production: Approximately 570 lbs/24 hours at 70°F/50°F
• Voltage: 115/60/1
• Water Pressure: 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR)
• Refrigerant: R449A

Applications

• Producing ice for beverage service in restaurants
• Providing ice for food preservation in commercial kitchens
• Supplying ice for catering events and banquets

Certifications

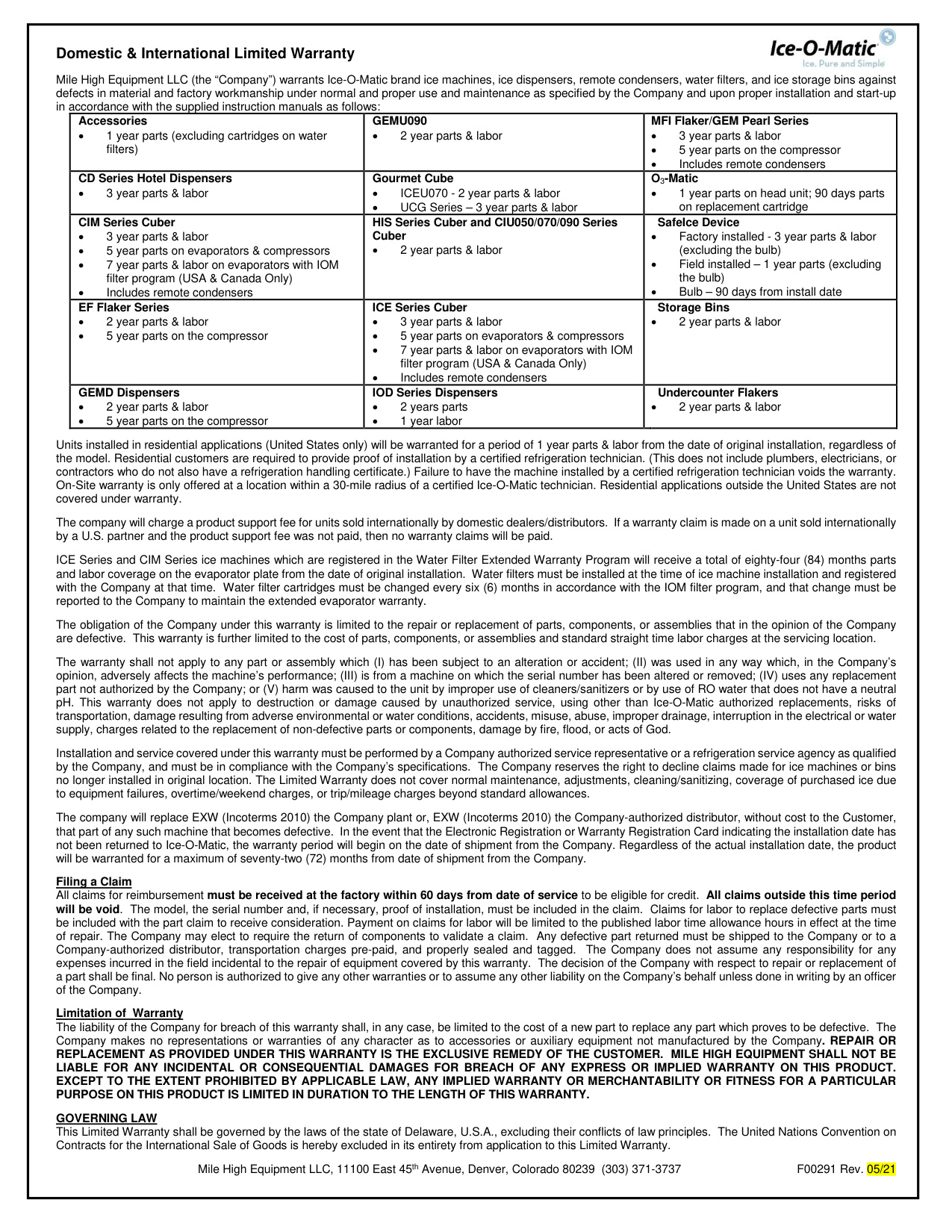

Warranty

Domestic & International Limited Warranty: Ice-O-Matic brand ice machines, ice dispensers, remote condensers, water filters, and ice storage bins are warranted against defects in material and factory workmanship under normal and proper use and maintenance as specified by the Company. The warranty includes 3 years parts and labor, 5 years parts on the compressor, and 7 years parts and labor on evaporators with the IOM filter program (USA & Canada Only).

From The Manufacturer

• Elevation Series™ Modular Cube Ice Maker
• air-cooled
• remote condenser
• 30" W
• approximately 570 lb production/24 hours at 70°/50° (415 lb at 90°/70°)
• full-size cubes
• PURE ICE® built-in antimicrobial protection
• LED status display
• one touch sanitize/descaling controls
• dishwasher safe food zone components
• R449 refrigerant
• cULus
• NSF
• CE
• BPA Free
