Elevation Series™ CIM0530HA90 Ice Maker 500 lb Daily Production Capacity

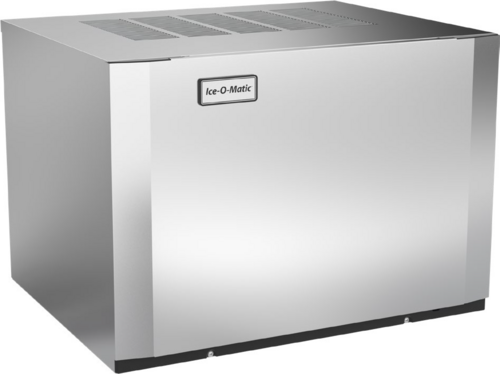

Ice-O-Matic CIM0530HA90 Ice Maker, Cube-Style
The Ice-O-Matic CIM0530HA90 is a modular cube ice maker from the Elevation Series™. It utilizes R290 refrigerant, known for its environmentally friendly properties. The ice maker features a dual exhaust system for flexible installation options and includes a front-facing evaporator for easy cleaning. The unit is constructed with corrosion-resistant aluminum and is designed for efficient ice production with a self-contained condenser and top air discharge.
Specifications
- Dimensions: 27.00 x 27.00 x 33.00 in
- Weight: 158.00 lbs
- Ice Production: 525 lbs per 24 hours at 70°F air / 50°F water
- Voltage: 115/60/1
- Water Pressure: 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR)
- Refrigerant: R290
Harvest Assist technology ensures consistent ice production while reducing energy consumption and increasing capacity.
Applications
- Producing ice for beverage service in restaurants
- Supplying ice for catering events and banquets
- Providing ice in hotel and hospitality settings
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This product complies with the standards imposed by Conformance European (CE).
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.

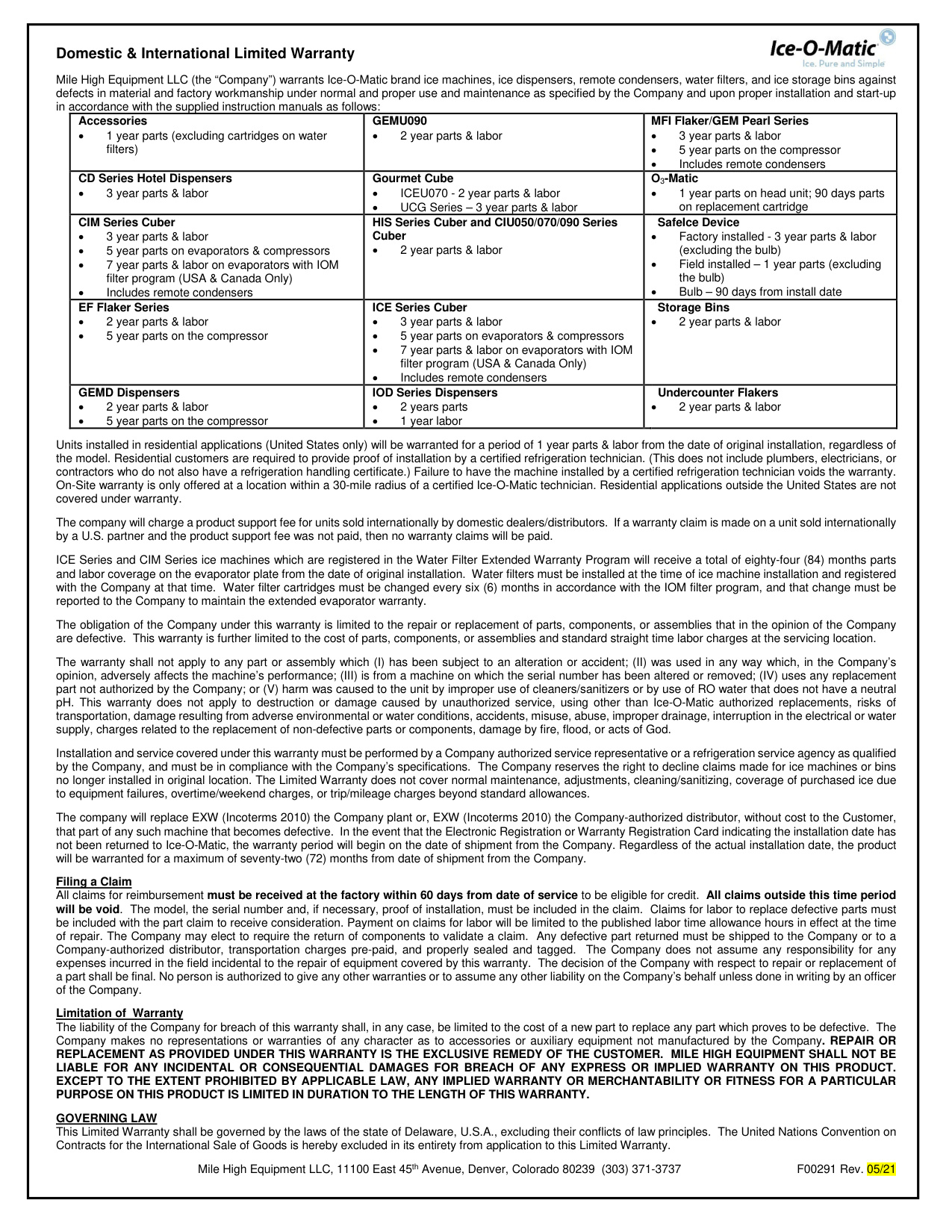

Warranty
Ice Maker: 3 years parts and labor. Evaporator and Compressor: 5 years parts. Evaporator: 7 Years Parts and Labor (if enrolled in the filter program).
From The Manufacturer
- Elevation Series™ Modular Cube Ice Maker in R290
- air-cooled
- self-contained condenser
- top air discharge
- 30" W
- approximately 525 lb production/24 hours at 70°/50° (400 lb at 90°/70°)
- half-size cubes
- LED status display
- one touch sanitize/descaling controls
- dishwasher safe food zone components
- cULus
- NSF
- CE
- ENERGY STAR®
| Brand | Ice-O-Matic |
| Brand: Ice-O-Matic |
-
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
![[Financing Available] Financing Available](/web/image/dr.website.content/5/image/%5BFinancing%20Available%5D%20Financing%20Available?unique=078fc30){kind=small}
Guaranteed Safe Checkout
Call for Help
Resources
| SKU | CIM0530HA90 |
| Brand | Ice-O-Matic |
| Weight | 158.00 lbs |
| Dimensions (HxWxD) | 27.00 x 27.00 x 33.00 inches |
| Height | 27.00 |
| Width | 27.00 |
| Depth | 33.00 |
| Width (side - side) | 30 - 39" wide |
| Refrigeration | self-contained refrigeration |
| Production per 24 hr | 501 - 600 lb = 228 - 272 kg |
| Ice Type | half size / half dice cubes |
| Condenser Type | air-cooled |
|
