Elevation Series™ CIM1136FA49 Ice Maker 1136 lb Daily Production Capacity

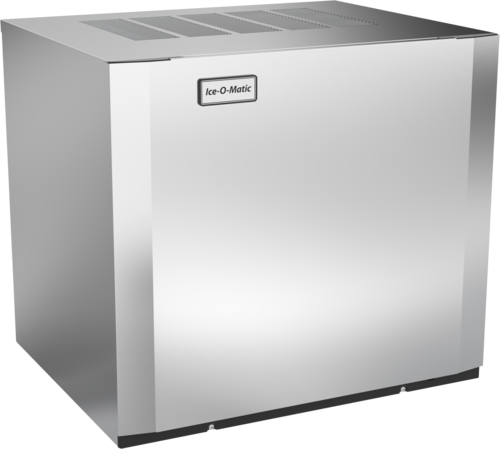

Ice-O-Matic CIM1136FA49 Ice Maker, Cube-Style
The Ice-O-Matic CIM1136FA49 is a modular cube ice maker from the Elevation Series™, designed for efficient ice production and easy maintenance. It features a dual exhaust system for flexible installation and is constructed from corrosion-resistant aluminum. The ice maker is equipped with a front-facing evaporator for easy cleaning and uses a self-contained condenser with air cooling.
Specifications
- Dimensions: 30.25 x 26.90 x 24.25 in
- Weight: 211.00 lbs
- Ice Production: 960 lbs per 24 hours at 70°F air/50°F water
- Voltage: 208-230/60/1
- Water Usage: 18 gallons per 100 lbs of ice at 90°F air/70°F water
Applications
- Producing ice for beverage dispensers in restaurants
- Supplying ice for food preparation in commercial kitchens
- Providing ice for catering events and banquets
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This product complies with the standards imposed by Conformance European (CE).
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.
Warranty
Ice Maker: 3 years parts and labor. Evaporator and Compressor: 5 years parts. Evaporator: 7 Years Parts and Labor (if enrolled in the filter program).
From The Manufacturer
- Elevation Series™ Modular Cube Ice Maker
- air-cooled
- self-contained condenser
- dual exhaust top/side air discharge
- 30" W
- approximately 960 lb production/24 hours at 70°/50° (820 lb at 90°/70°)
- full-size cubes LED status display
- one touch sanitize/descaling controls
- dishwasher safe food zone components
- R449 refrigerant
- cULus
- NSF
- CE
| Brand | Ice-O-Matic |
| Brand: Ice-O-Matic |
-
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
![[Financing Available] Financing Available](/web/image/dr.website.content/5/image/%5BFinancing%20Available%5D%20Financing%20Available?unique=078fc30){kind=small}
Guaranteed Safe Checkout
Call for Help
Resources
| SKU | CIM1136FA49 |
| Brand | Ice-O-Matic |
| Weight | 211.00 lbs |
| Dimensions (HxWxD) | 26.90 x 30.25 x 24.25 inches |
| Height | 26.90 |
| Width | 30.25 |
| Depth | 24.25 |
| Production per 24 hr | 901 - 1000 lb = 409 - 454 kg |
| Ice Type | full size / dice cubes |
| Width (side - side) | 30 - 39" wide |
| Refrigeration | self-contained refrigeration |
| Condenser Type | air-cooled |
|
