Elevation Series™ CIM1136HA49 Ice Maker 1136 lb Daily Production Capacity

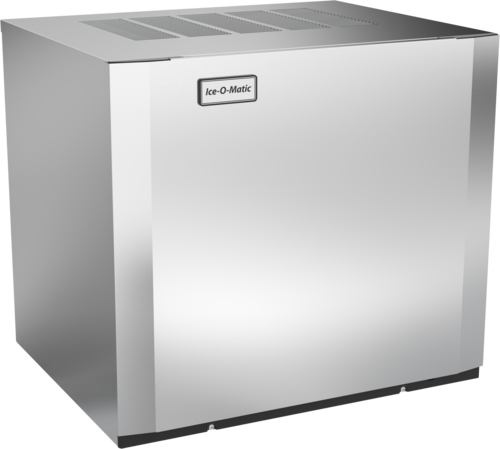

Ice-O-Matic CIM1136HA49 Ice Maker, Cube-Style
The Ice-O-Matic CIM1136HA49 is a modular cube ice maker from the Elevation Series™. It features a dual exhaust system for flexible installation on bins or dispensers and is constructed from corrosion-resistant aluminum. The unit is designed for easy cleaning with a front-facing evaporator and dishwasher-safe components. It includes a Harvest Assist feature to maintain consistent ice production while reducing energy consumption.
Specifications
- Dimensions: 30.25 x 26.90 x 24.25 in
- Weight: 212.00 lbs
- Ice Production: 960 lbs per 24 hours at 70°F air/50°F water
- Voltage: 208-230/60/1
- Water Pressure: 20 PSIG (1.4 BAR) to 80 PSIG (5.5 BAR)
- Refrigerant: R449A
Applications
- Ice production for beverage service in restaurants
- Supplying ice for food preservation in commercial kitchens
- Providing ice for hotel and hospitality industry
- Supporting ice needs in healthcare facilities
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This product complies with the standards imposed by Conformance European (CE).
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.

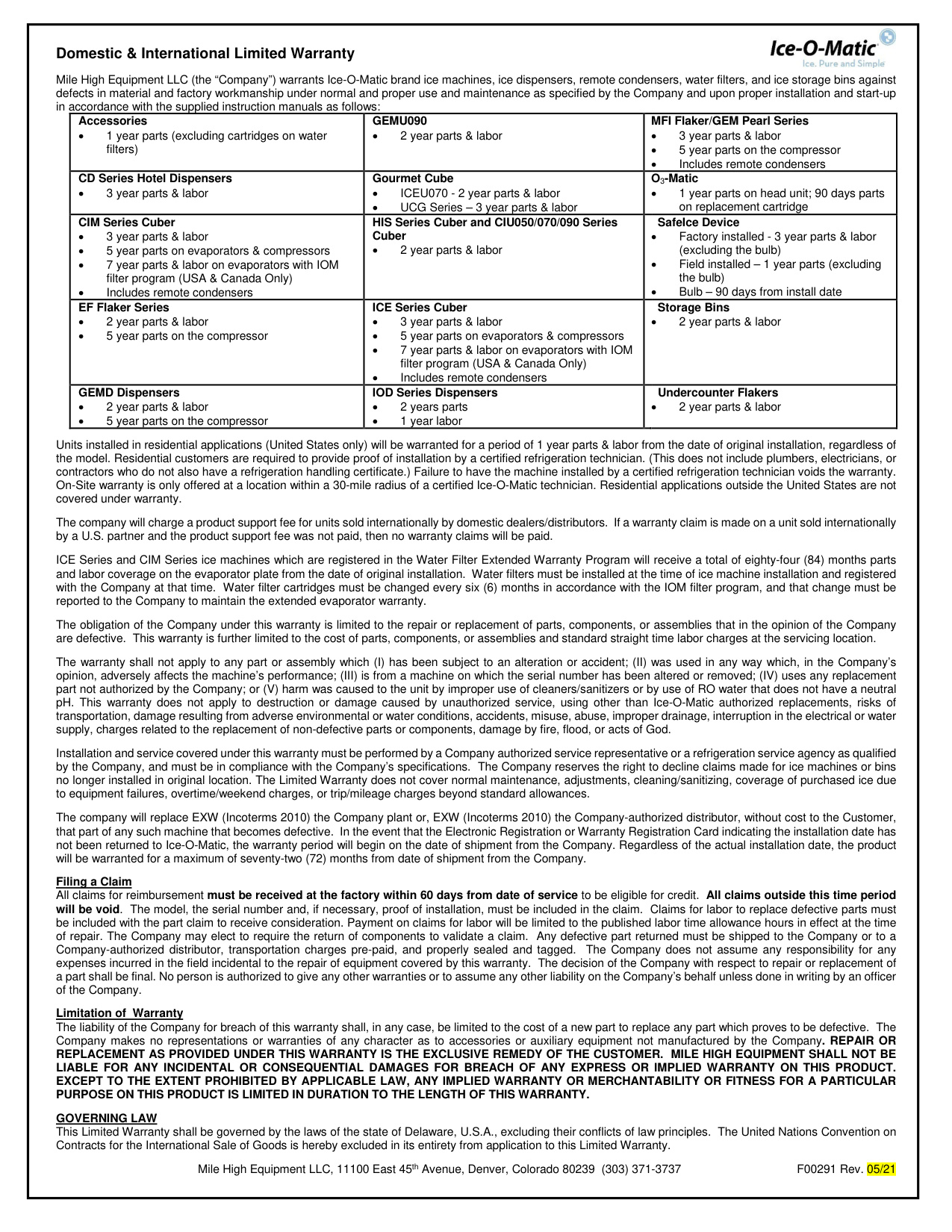

Warranty
The CIM Series Cuber has a 3-year parts and labor warranty. The evaporator and compressor are covered for 5 years parts, and the evaporator has a 7-year parts and labor warranty if enrolled in the filter program (USA & Canada Only).From The Manufacturer
- Elevation Series™ Modular Cube Ice Maker
- air-cooled
- self-contained condenser
- dual exhaust top/side air discharge
- 30" W
- approximately 960 lb production/24 hours at 70°/50° (740 lb at 90°/70°)
- half-size cubes LED status display
- one touch sanitize/descaling controls
- dishwasher safe food zone components
- R449 refrigerant
- cULus
- NSF
- CE
| Brand | Ice-O-Matic |
| Brand: Ice-O-Matic |
-
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
![[Financing Available] Financing Available](/web/image/dr.website.content/5/image/%5BFinancing%20Available%5D%20Financing%20Available?unique=078fc30){kind=small}
Guaranteed Safe Checkout
Call for Help
Resources
| SKU | CIM1136HA49 |
| Brand | Ice-O-Matic |
| Weight | 212.00 lbs |
| Dimensions (HxWxD) | 26.90 x 30.25 x 24.25 inches |
| Height | 26.90 |
| Width | 30.25 |
| Depth | 24.25 |
| Production per 24 hr | 901 - 1000 lb = 409 - 454 kg |
| Width (side - side) | 30 - 39" wide |
| Refrigeration | self-contained refrigeration |
| Ice Type | half size / half dice cubes |
| Condenser Type | air-cooled |
|
