Manitowoc IDT0900W SpaceMaker Marine Ice Machine Head Dice Cube 780 lb Water Cooled 30" Indigo NXT Bin Sold Separately

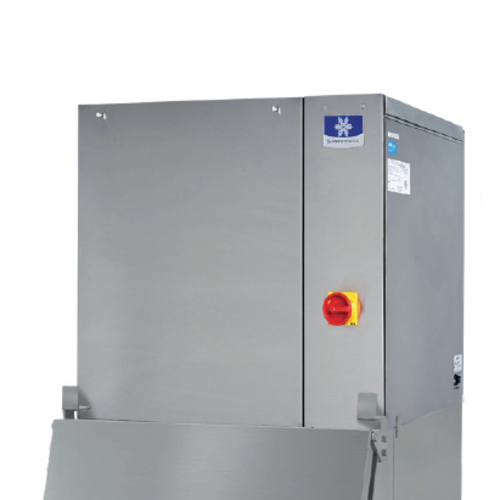

Manitowoc IDT0900W SpaceMaker — 30" Water-Cooled Marine Dice Cube Ice Head, 780 lb
The Manitowoc IDT0900W SpaceMaker (IDT0900W-261V) is an Indigo NXT iT0900 ice machine head re-engineered for ship galleys and tight spaces. All utility connections come through the top panel, so the cabinet can sit directly against the back and side walls with as little as 2-3/4" clearance at the back. It makes up to 780 lbs. of dice cubes per day with a water-cooled condenser, and its completely sealed cabinet, front isolation switch and removable top and side panels are built for marine service. This is the ice machine head only — the storage bin is ordered separately; Manitowoc recommends the SeaKing marine bin.
Head only — bin not included: product photos may show the SpaceMaker on its recommended SeaKing bin, but this listing is for the IDT0900W ice machine head alone. The storage bin is sold separately. The unit is water cooled and needs a condenser water supply in addition to the potable ice-making water line.
Key Features of the IDT0900W SpaceMaker
SpaceMaker takes the standard Indigo NXT platform and rebuilds the cabinet around the realities of a ship's galley.
Top-Panel Utility Access
Water, drain and electrical connections enter through the top, so the cabinet can sit flush against bulkheads with only 2-3/4" behind it.
Fully Sealed Cabinet
Top, front, back and sides are completely sealed against galley moisture, and the unit meets USPHS and NSF specifications.
Front Isolation Switch
A front-mounted isolation switch cuts power to the entire unit immediately, a key safety requirement at sea.
Front-Facing Evaporator
The food zone is reached from the front for cleaning, with no need to remove the top lid in a low-overhead galley.
Serviceable When Mounted
Top and side panels remove even when the unit is fixed to the bulkhead, so technicians can work without unbolting it.
Indigo NXT Intelligence
The standard Indigo NXT control system monitors refrigeration and sub-system controls 24/7 and flags issues before they cause downtime.
Ideal Applications
Built for vessels and any installation where every inch of wall space counts.
Recommended Bin & Accessories
Manitowoc lists these for the SpaceMaker iT0900; each is sold separately.
IDT0900W SpaceMaker Specifications
| Model | Manitowoc IDT0900W-261V SpaceMaker (Indigo NXT iT0900) |
|---|---|
| Type | Marine ice machine head, water cooled, self-contained |
| What's Included | Ice machine head only; storage bin sold separately |
| Ice Shape | Dice, 7/8" x 7/8" x 7/8" |
| Production (70° air / 50° water) | 780 lbs. (354 kg) per 24 hrs |
| Production (90° air / 70° water) | 665 lbs. (302 kg) per 24 hrs |
| Energy Use | 4.02 kWh per 100 lbs. of ice |
| Potable Water Use | 19 gal. (71.9 L) per 100 lbs. of ice |
| Condenser Water Use | 135 gal. (511 L) per 100 lbs. of ice |
| Dimensions (W x D x H) | 30" x 24.5" x 26.5" |
| Electrical | 208-230 V / 60 Hz / 1 phase; 1195.2 W |
| Min. Ampacity / Max. Fuse | 8.8 A / 15 A |
| Refrigerant | R410A |
| Ambient / Water Temperature | 40°F to 110°F ambient; 40°F to 90°F water |
| Water Pressure | 20 to 80 psi potable; 20 to 276 psi condenser |
| Minimum Back Clearance | 2-3/4" |
| Weight | Approx. 200 lbs. net, 215 lbs. gross |
| Certifications | cULus listed; IEC 335-1 / 335-2-24; meets USPHS and NSF specifications |
Frequently Asked Questions
Does the Manitowoc IDT0900W SpaceMaker include a bin?
No. This listing is the ice machine head only. Manitowoc recommends pairing it with the SeaKing marine bin, which is sold separately.
What makes the SpaceMaker different from a standard IDT0900W?
All utilities connect through the top panel so the cabinet can sit against walls with 2-3/4" back clearance, and the cabinet is fully sealed with a front isolation switch for marine use.
How much ice does the IDT0900W SpaceMaker produce?
Up to 780 lbs. of dice cubes per 24 hours at 70° air and 50° water, and 665 lbs. at 90° air and 70° water.
What utilities does it need?
A 208-230 V / 60 Hz single-phase circuit with a 15 A maximum fuse, a potable water line for ice making and a condenser water supply for the water-cooled condenser.
What is the difference between the IDT0900W and IYT0900W SpaceMaker?
They share the same 30" SpaceMaker cabinet. The IDT0900W makes 7/8" dice cubes; the IYT0900W makes half dice cubes.
Can it be serviced while bolted down?
Yes. The top and side panels are designed to come off even when the unit is fixed to the bulkhead, and the evaporator is accessed from the front.
