Manitowoc JCT1200-261 Remote Condensing Unit - Vertical Discharge Air-Cooled IT-1200N Series

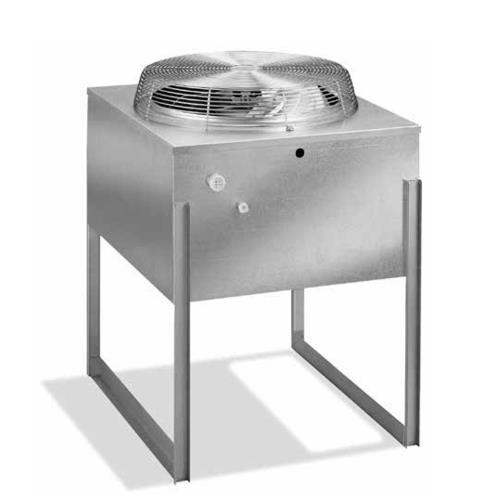

The Manitowoc JCT1200-261 Remote Condensing Unit is an innovative solution designed specifically for Indigo® NXT™ Series Ice Cube Machines using R410A refrigerant. This air-cooled, vertical discharge condenser is compatible with models JCT0500, JCT1200, JCT1500, and JCT1500Q, ensuring optimal ice production and efficiency.

Key Features

• Effective operation range from -20°F (-29°C) to 120°F (49°C).
• Designed for easy installation with components pre-charged with refrigerant.
• Includes quick-connect fittings for straightforward setup.
• Operates with a maximum line length of 100' (30 m) and a maximum vertical rise of 35' (10.5 m).
• Special coated coil model available for environments close to salt spray.
• Three-year parts and labor warranty, providing peace of mind.

Enhanced Efficiency

This remote condenser system maximizes ice-making capability while minimizing air conditioning loads. With the ability to be installed up to 20” (50.8 cm) from the bottom, it can be strategically placed indoors or outdoors to effectively dissipate heat. This flexibility allows for improved energy conservation and ice production.

Installation Information

Make sure to comply with recommended installation guidelines for combining vertical and horizontal distances. The remote condenser's refrigerant charge accommodates up to 50' (15 m) line lengths, with additional refrigerant required for longer distances. For optimal performance, refer to the installation instructions provided.

Order your Manitowoc JCT1200-261 Remote Condensing Unit separately from your ice machine, ice storage bin, and line set. Experience the efficiency of a well-designed cooling system tailored for your ice production needs.

Certifications

The Manitowoc JCT1200-261 is certified by AHRI and UL, ensuring it meets high standards of performance and safety.
