Kool It Signature MVP KIN23F-HC One-Section Reach-In Freezer
Kool It Signature MVP KIN23F-HC — One-Section Reach-In Freezer

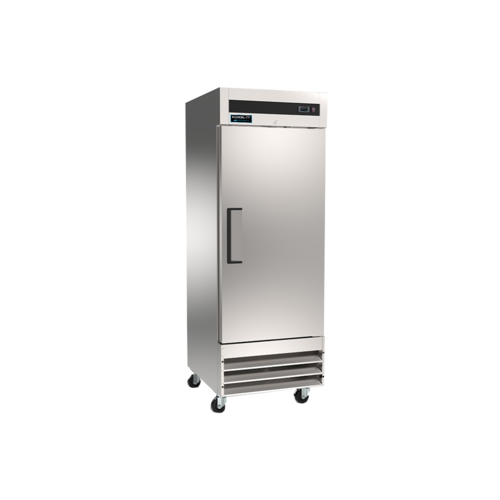

The Kool It Signature MVP KIN23F-HC is a one-section, one-door commercial reach-in freezer built for demanding foodservice environments. Featuring an eco-friendly R290 refrigerant, bottom-mount self-contained refrigeration, and a fully stainless steel construction, this unit delivers rock-solid freeze temperatures from -8°F to 0°F — day in, day out. Compact enough at 29" wide to fit tight kitchen footprints, yet roomy enough with three heavy-duty adjustable shelves to maximize your frozen storage capacity.
Key Features of the KIN23F-HC
Every design decision on the KIN23F-HC targets reliability, ease of maintenance, and consistent temperature performance in busy commercial kitchens.
R290 Eco-Friendly Refrigerant
Uses R290 hydrocarbon refrigerant — a natural, low-GWP alternative that reduces environmental impact while delivering efficient cooling to maintain temperatures between -8°F and 0°F.
Digital LED Thermostat
Electronic thermostat with a front-facing digital LED display gives operators instant, accurate temperature readings and precise control without guesswork.
Stainless Steel Throughout
430 stainless steel exterior for durability, 201 stainless interior for easy cleaning, and a 304 stainless steel interior floor — the highest-grade material where moisture and cleaning chemicals accumulate most.
Tool-Free Magnetic Door Gasket
The magnetic door gasket snaps out and back in without any tools — cutting maintenance downtime and making routine seal inspections and replacements fast and hassle-free.
Self-Closing, 90° Stay-Open Door
The door automatically closes to maintain cold air integrity, yet holds open at 90° when loading — so staff can work hands-free without propping it open.
Removable Condenser Access Board
A removable installation board on the bottom-mount condenser coil provides fast, unobstructed access for routine cleaning and servicing — keeping the unit running at peak efficiency.
Door Swing Field Reversible: The KIN23F-HC ships with a standard hinge configuration, but the door swing can be field-reversed to suit your kitchen's layout — no special tools or service call required.
Ideal Applications
The KIN23F-HC's compact one-section footprint and reliable freeze performance make it a natural fit across a wide range of commercial foodservice settings.
KIN23F-HC Specifications
| Model | KIN23F-HC |
|---|---|
| Type | Reach-In Freezer, One Section |
| Doors | 1 — Hinged Solid Locking (Field Reversible) |
| Shelves | 3 Adjustable Heavy-Duty Epoxy Coated Wire Shelves |
| Exterior Dimensions | 29" W × 32.2" D × 82.5" H |
| Interior Dimensions | 24.4" W × 27.1" D × 59.8" H |
| Temperature Range | -8°F to 0°F (-22°C to -18°C) |
| Refrigerant | R290 |
| Refrigeration System | Bottom-Mount Self-Contained |
| Compressor | 2/3 HP |
| Electrical | 115V / 60Hz / 1-Phase |
| Amperage | 4.2 A |
| Casters | 4 × 4" Swivel (2 Locking) |
| Exterior Material | 430 Stainless Steel |
| Interior Material | 201 Stainless Steel |
| Interior Floor | 304 Stainless Steel |
| Shipping Weight | 297 lbs |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR® |
Frequently Asked Questions
What temperature range does the KIN23F-HC maintain?
The KIN23F-HC operates at a temperature range of -8°F to 0°F (-22°C to -18°C), making it suitable for storing a wide range of frozen foods including meats, seafood, ice cream, and prepared frozen meals in a commercial kitchen environment.
What refrigerant does this unit use, and is it environmentally friendly?
The KIN23F-HC uses R290, a hydrocarbon (propane-based) refrigerant with a very low Global Warming Potential (GWP). R290 is widely regarded as one of the most eco-friendly refrigerant options available for commercial refrigeration today.
Can the door swing be reversed on the KIN23F-HC?
Yes. The door hinge on the KIN23F-HC is field reversible, meaning you can change the direction the door opens on-site to accommodate your specific kitchen layout without needing a service technician.
Is the KIN23F-HC ENERGY STAR certified?
Yes, the KIN23F-HC is ENERGY STAR® certified. It is also listed by cETLus and ETL-Sanitation, confirming it meets electrical safety standards for the US and Canada and commercial food safety sanitation requirements.
What type of compressor system does this freezer use?
The KIN23F-HC features a bottom-mount, self-contained refrigeration system with a 2/3 HP compressor. Bottom-mount placement keeps the compressor away from the warmer upper zone, reduces strain on the system, and makes cleaning and servicing easier.
Does the KIN23F-HC come with casters?
Yes, the unit ships with four 4" swivel casters — two of which are locking — making it easy to reposition and then secure the unit in place on your kitchen floor.
| Brand | Kool It Signature MVP |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | KIN23F-HC |
| Brand | Kool It Signature MVP |
| Weight | 297.00 lbs |
| Dimensions (HxWxD) | 59.80 x 29.00 x 27.10 inches |
| Height | 59.80 |
| Width | 29.00 |
| Depth | 27.10 |
| Size | 1 section |
| Exterior Finish | all stainless steel exterior |
| Energy Efficiency | ENERGY STAR® |
| Interior Finish | all stainless steel interior |
| Door Style | full hinged |
| Door Type | solid door(s) |
| Refrigeration | self-contained, bottom mounted |
| Compressor HP | 2/3 HP |
|
