Marc Refrigeration OD-12R Open Refrigerated Display 12-Cubic-Foot Capacity

Marc Refrigeration OD-12R Merchandiser, Open Refrigerated Display

The Marc Refrigeration OD-12R is an open refrigerated display designed to enhance product visibility and accessibility in commercial food service operations. This unit is tailored for environments such as grocery stores, convenience stores, and delis, where showcasing dairy products and other perishables is crucial. With its open design, it allows operators to efficiently display and access products, making it a valuable asset for businesses aiming to boost impulse sales and maintain optimal product freshness.

Constructed with durability and aesthetics in mind, the OD-12R features a stainless steel deck and mirror finish stainless steel shelves and trim, ensuring both longevity and a sleek appearance. The cabinet is insulated with full density, solid core urethane, providing excellent thermal retention. Its sides are made of decorator-colored panels, customizable to match the store's interior. The unit includes a front bumper made of high-density PVC to withstand shopping cart impacts, and side panels with 1/4" plexiglass for maximum visibility and safety. The design also incorporates night shades to lock in refrigeration overnight, enhancing energy efficiency.

In terms of performance, the OD-12R operates on a recommended 3 H.P. remote refrigeration system, requiring a 115/1/60 electrical connection with a minimum circuit ampacity of 14.5 amps. The unit measures 138.5 inches in length, 79.5 inches in height, and 34.5 inches in depth, with a shipping weight of 1140 lbs. Enhanced product lighting is provided by the top canopy and under two levels of shelving, with an option for up to five levels of lighting. This display is designed for use in air-conditioned environments where the temperature does not exceed 75°F and relative humidity is kept below 55%.

Specifications

• Exterior dimensions: 138.5" L x 79.5" H x 34.5" D
• Weight: 1140 lbs
• Electrical requirements: 115/1/60, 14.5 amps
• Refrigeration: Remote, 3 H.P. recommended
• Insulation: Full density, solid core urethane
• Shelves: Four mirror finish stainless steel shelves
• Lighting: Top canopy and under shelving, optional five levels
• Front bumper: High-density PVC

Applications

• In grocery stores, the OD-12R can be used to display dairy products prominently, encouraging impulse purchases.
• Convenience stores can utilize this open display to keep beverages and snacks accessible to customers on the go.
• Delis can benefit from the unit's visibility to showcase fresh meats and cheeses, enhancing customer interaction.
• In cafeterias, this display can be used to present pre-packaged meals and salads, streamlining the selection process.
• Hotel breakfast buffets can use the OD-12R to offer a variety of chilled items, maintaining freshness and appeal.

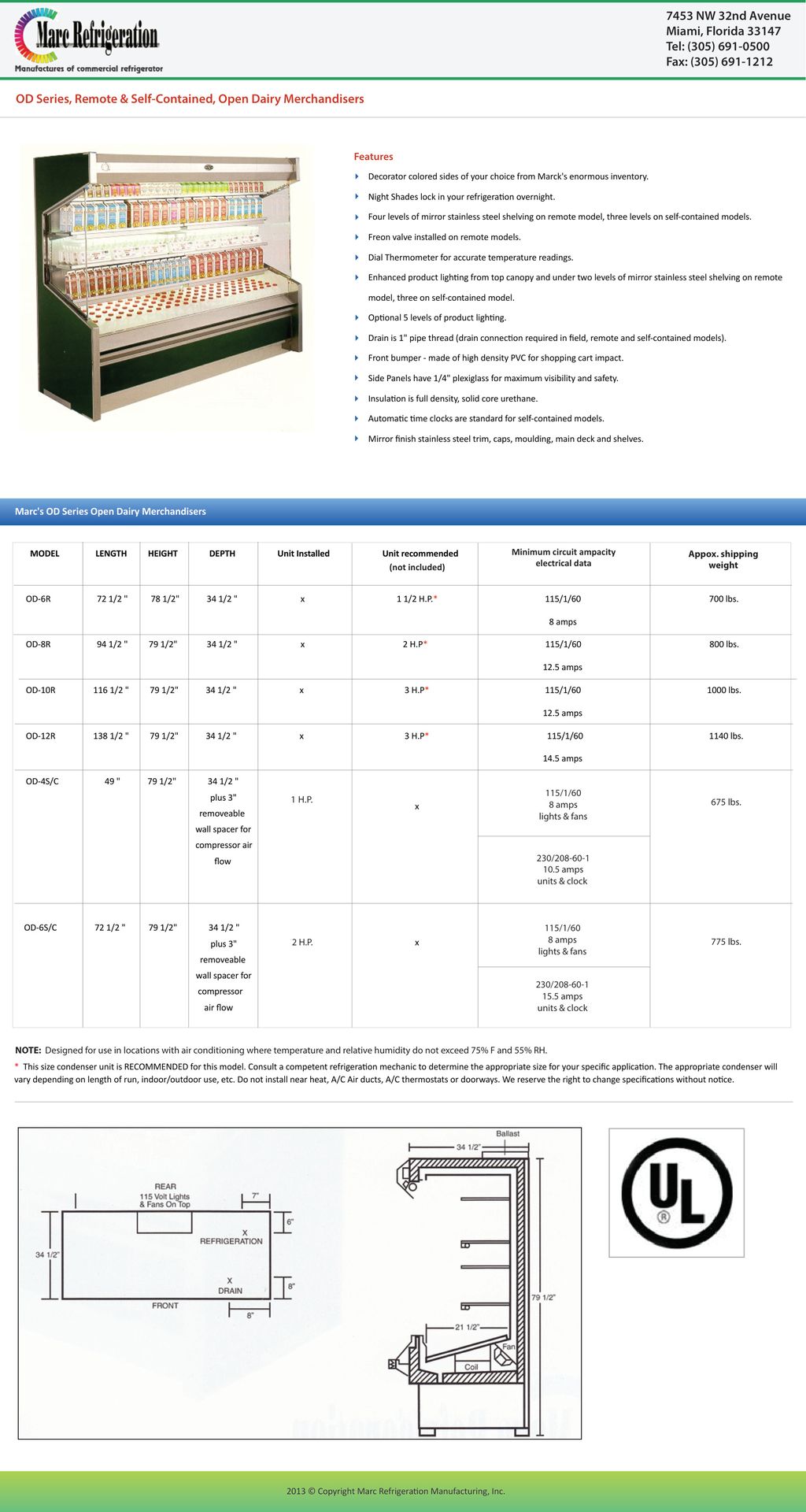

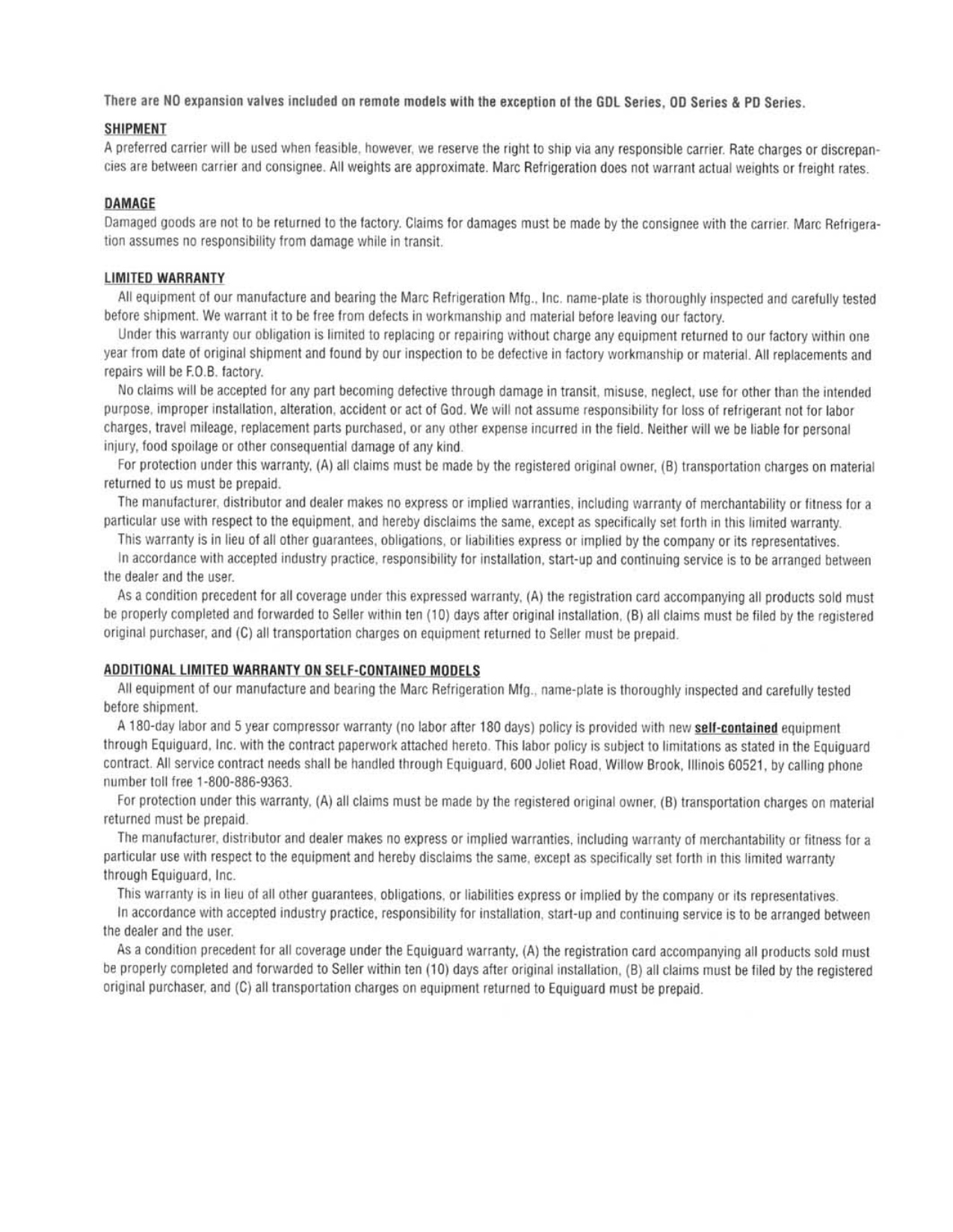

From The Manufacturer
