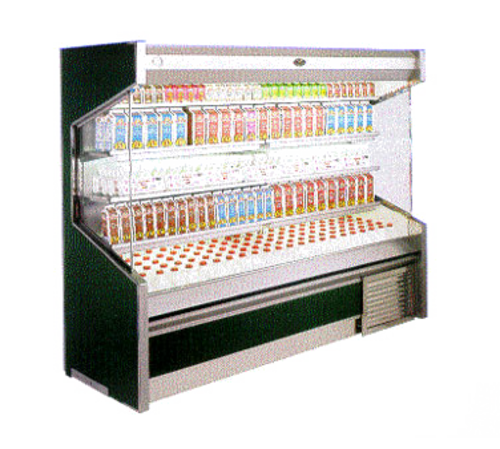

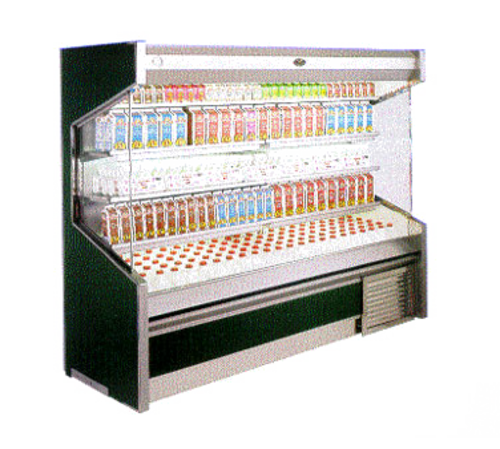

Marc Refrigeration OD-4 S/C Open Refrigerated Display 4-Foot Width

Marc Refrigeration OD-4 S/C Merchandiser, Open Refrigerated Display

The Marc Refrigeration OD-4 S/C is an open refrigerated display designed to showcase and preserve perishable items in a commercial food service setting. This unit is essential for operators who need to maintain optimal visibility and accessibility of chilled products, making it a valuable asset in environments such as grocery stores, delis, and cafeterias. With its open design, it allows customers to easily view and select items, enhancing the shopping experience while ensuring products are kept at the appropriate temperature.

Constructed with durability and aesthetics in mind, the OD-4 S/C features a stainless steel deck and three mirror finish stainless steel shelves, providing both strength and an attractive presentation. The exterior is complemented by decorator colored sides, which can be customized to fit the aesthetic of any establishment. The unit includes end panels made from 1/4" Plexiglas for maximum visibility and safety, while the high-density PVC front bumper protects against shopping cart impacts. Insulation is provided by full density, solid core urethane, ensuring efficient temperature retention.

The performance of the OD-4 S/C is driven by a 1-1/2 horsepower self-contained refrigeration system, operating on a 115/1/60 electrical configuration with an amperage of 8 amps. This model requires a field drain connection and is equipped with an automatic time clock for energy efficiency. Enhanced product lighting is achieved through a canopy and shelf lights, ensuring that products are well-lit and appealing to customers. The unit is designed for use in air-conditioned environments where temperatures do not exceed 75°F and relative humidity remains below 55%.

Specifications

• Exterior dimensions: 49.00 x 79.50 x 34.50 inches
• Weight: 675.00 lbs
• Voltage: 115/1/60
• Amperage: 8 amps
• Refrigeration: 1-1/2 horsepower self-contained
• Insulation: Full density, solid core urethane
• Shelves: Three mirror finish stainless steel
• Drain connection: 1" pipe thread required in field

Applications

• In grocery stores, the open refrigerated display is used to showcase dairy products, ensuring they are kept at the right temperature while remaining easily accessible to customers.
• Delis utilize this equipment to present a variety of pre-packaged meats and cheeses, allowing customers to quickly grab and go, increasing sales during peak times.
• School cafeterias benefit from the open design, which allows students to select healthy snacks and beverages quickly, reducing wait times and improving service efficiency.
• In hotel banquet operations, the display is used to keep desserts and cold appetizers fresh and appealing, enhancing the presentation of buffet lines.
• Convenience stores rely on these displays for chilled beverages and ready-to-eat meals, providing a quick and efficient shopping experience for on-the-go customers.

Warranty

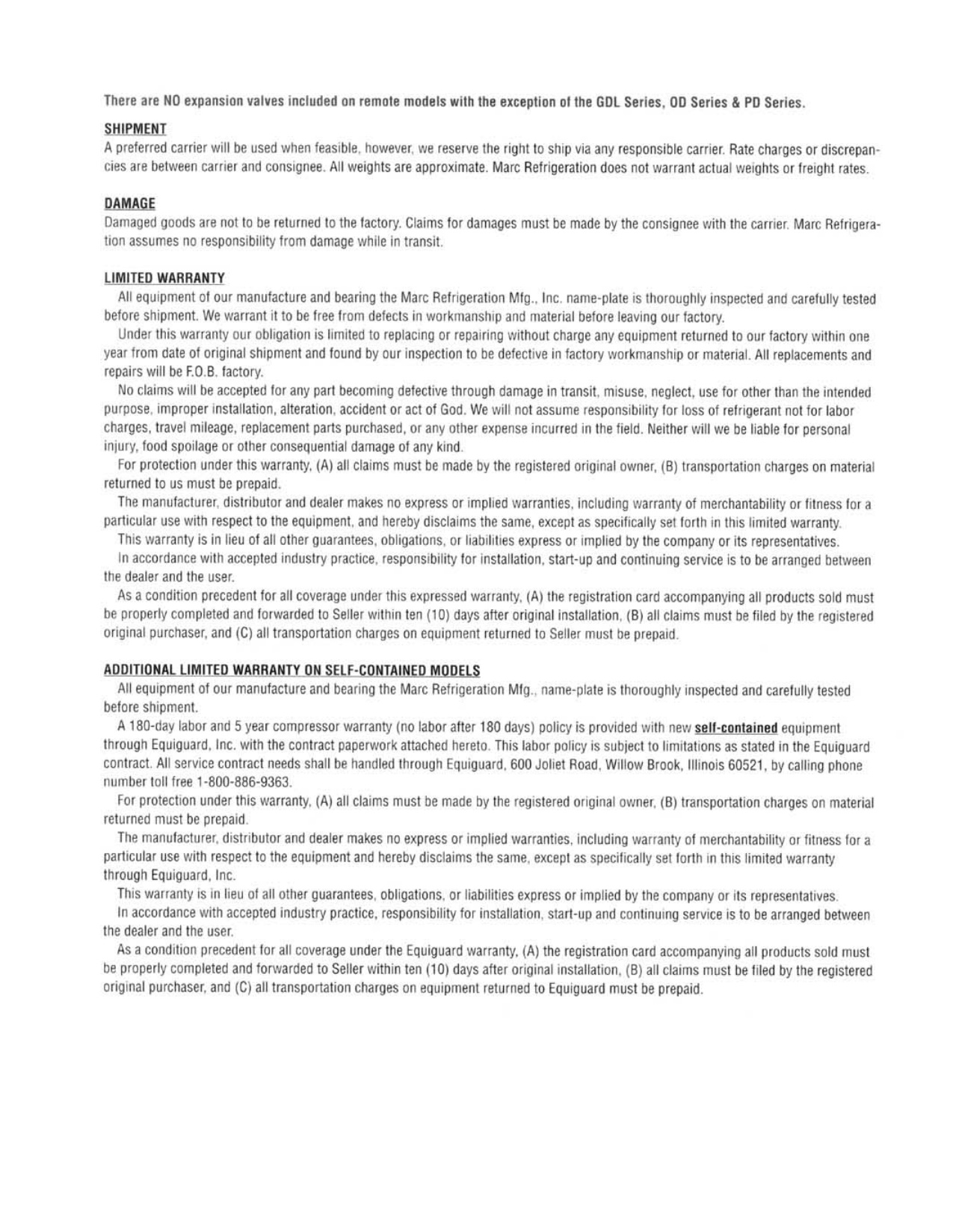

The Marc Refrigeration OD-4 S/C comes with a 180-day labor warranty and a 5-year compressor warranty through Equiguard, Inc.

From The Manufacturer
