Miele PFD 101 U ProfiLine 24 Inch Undercounter Dishwasher 120V Fresh Water 13 Place Settings Stainless Steel
Miele PFD 101 U — 24" ProfiLine Undercounter Dishwasher, 120V
The Miele PFD 101 U is the entry point to Miele's ProfiLine range: a 24-inch built-under dishwasher with a stainless steel front that plugs into a standard 120V / 15 A NEMA 5-15 outlet. It washes with fresh water on every program step instead of recirculating a tank, reaches a final rinse of up to 180°F (82°C), and finishes its fastest program, QuickIntenseWash, in 52 minutes. Rated for up to 5 cycles a day and tested for 12,500 program cycles, it is built for offices, staff rooms, care homes, schools, and live-kitchen settings that need commercial-grade hygiene without commercial-grade wiring. ExtraComfort baskets hold 13 place settings or 10 white wine glasses, AutoOpen assisted drying opens the door at the end of the cycle, and Wi-Fi is included as standard.
Key Features of the PFD 101 U
The PFD 101 U carries the same fresh water wash principle as Miele's larger professional machines, packaged in a 24-inch built-under cabinet that installs where a household dishwasher would go.
Fresh Water Wash System
Every program step uses fresh water rather than a recirculated wash tank, giving repeated water changes and filtration for consistently high cleaning results on each load.
180°F Final Rinse & SaniWash
A built-in 1.3 kW heater takes the final rinse up to 180°F (82°C) with an adjustable rinse temperature, and the dedicated SaniWash program runs 85 minutes plus 30 minutes of drying.

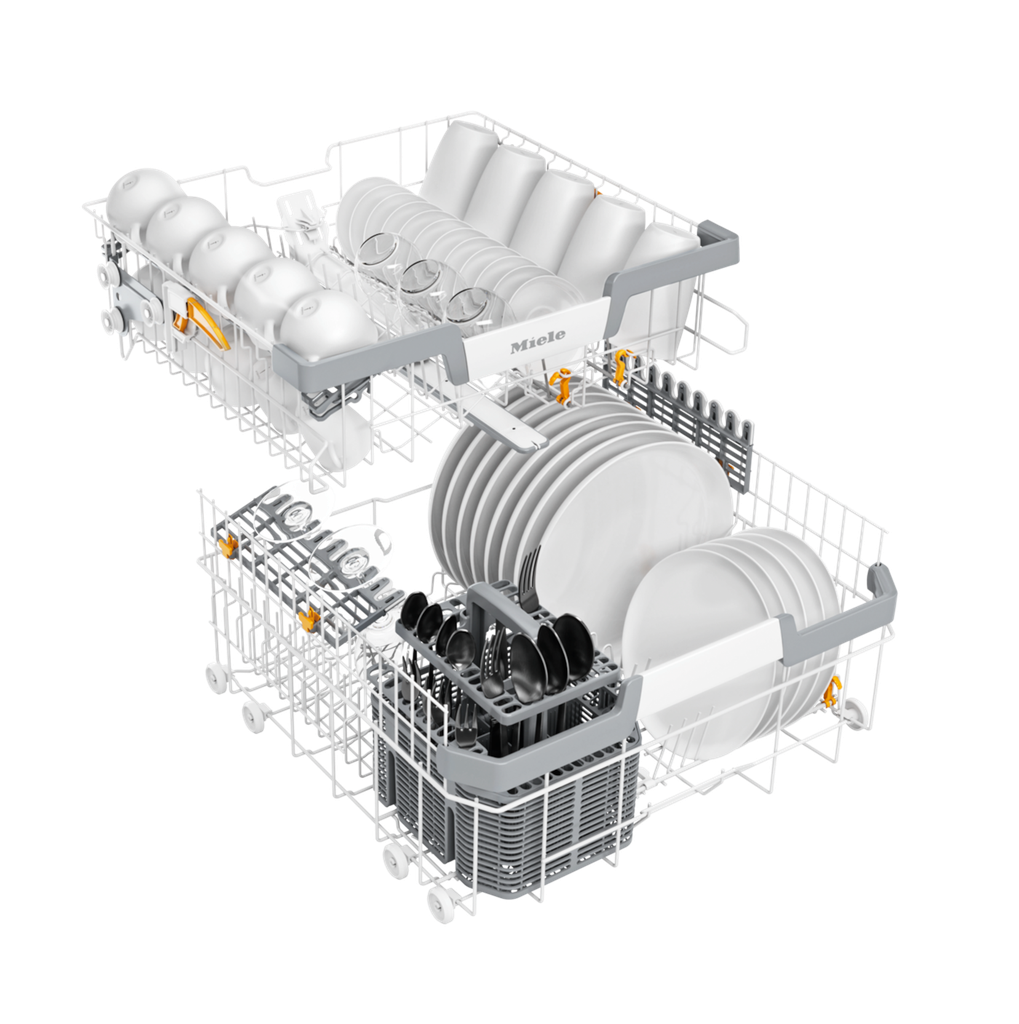

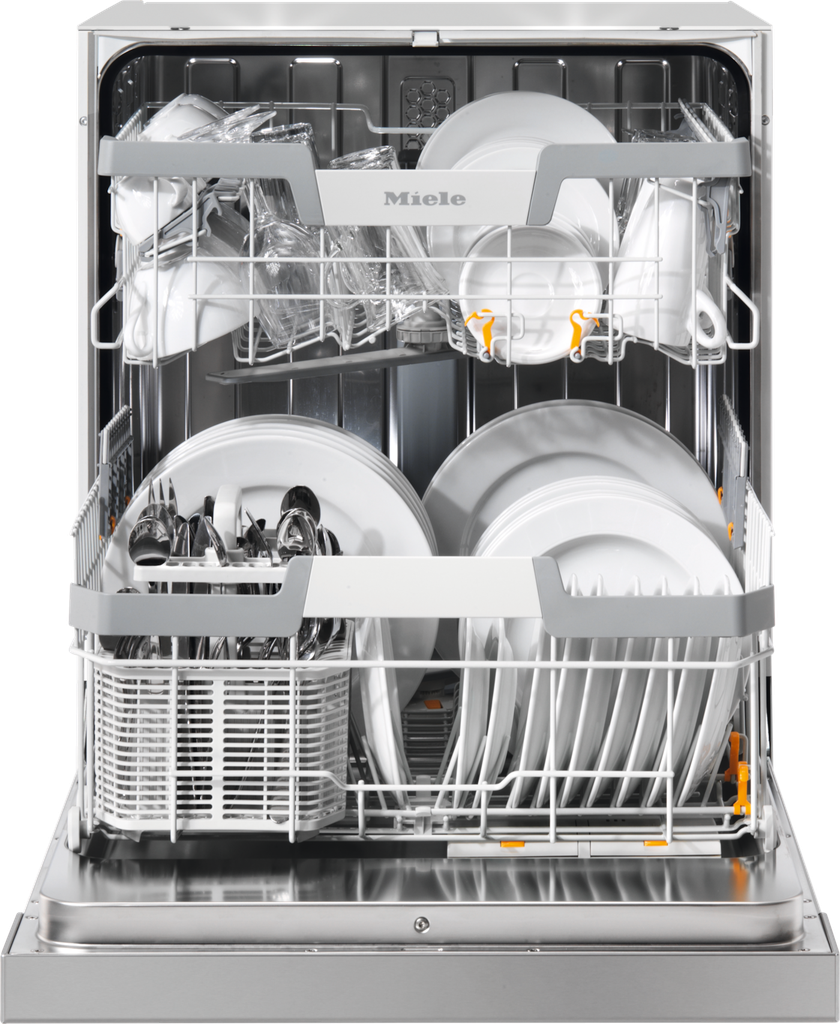

ExtraComfort Baskets
Two levels of FlexLine baskets hold 13 place settings or 10 white wine glasses, with a height-adjustable upper basket, two FlexCare glass holders, a FlexCare cup rack, and a cutlery basket.
AutoOpen Assisted Drying
Active condensation drying is followed by AutoOpen, which opens the door automatically at the end of the cycle so steam escapes and glassware and plastics dry faster.
Integrated Water Softener
The built-in softener treats incoming water up to 38 gpg (6.5 mmol/l), helping prevent spotting on glassware and scale build-up inside the machine in hard-water areas without a separate external unit.
Wi-Fi, Miele MOVE & Delay Start
WiFiConn@ct is standard and the machine is network-enabled for Miele MOVE, so machine data can be checked from any device; a delay start of up to 24 hours runs loads off-hours.
PFD 101 U Program Overview & Cycle Times
Eight programs cover everyday dishes, heavily soiled pots, delicate crystal, and plastics. Times below are Miele's published figures at 120V, 60 Hz with a 131°F (55°C) hot water supply.
| QuickIntenseWash | 52 min wash + 20 min extra drying |
|---|---|
| Universal | 63 min wash + 30 min extra drying |
| Pots & Pans | 76 min wash + 30 min extra drying |
| China & Crystal | 35 min wash + 20 min extra drying |
| SaniWash | 85 min wash + 30 min extra drying |
| ECO | 118 min wash + 127 min extra drying |
| Plastics | 47 min wash + 30 min drying (no option) |
| Rinse & Hold | 13 min |
Choosing the right model: The PFD 101 U is rated for 1 to 5 wash cycles per day. Kitchens that run more loads should look at Miele's MasterLine PFD 401, which is rated for 5 to 40 cycles per day and tested for 28,000 cycles. Install the PFD 101 U in a niche at least 23 5/8" (600 mm) wide, on a 15 A, 120V circuit with a NEMA 5-15 receptacle within reach of the 5 ft 7 in power cord.
Ideal Applications
Miele designed the PFD 10x series for settings that need professional hygiene and fast turnaround at modest daily volumes.

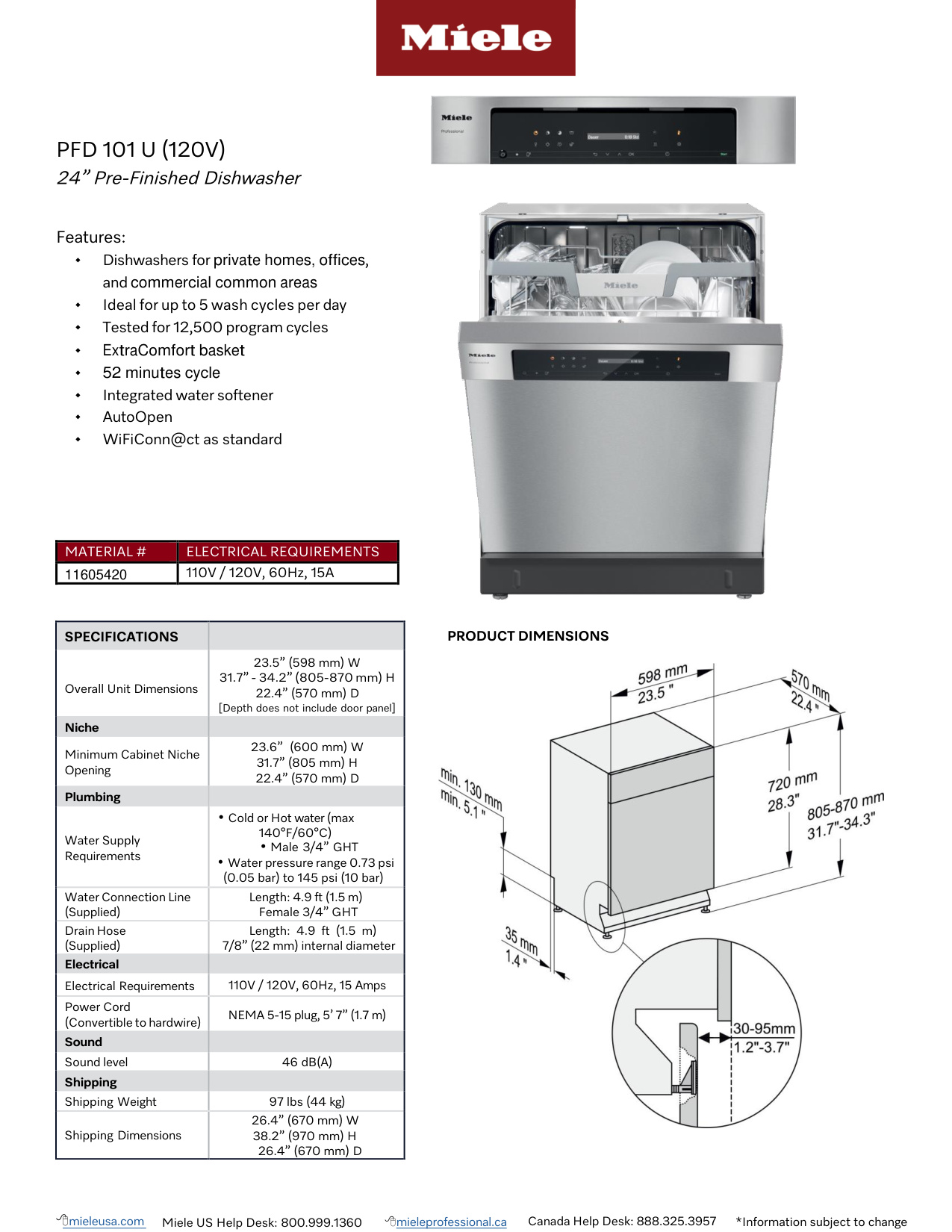

PFD 101 U Specifications
| Model | Miele PFD 101 U (material no. 11605420) |
|---|---|
| Range | ProfiLine |
| Type | Built-under (undercounter) fresh water front loader, 2 basket levels |
| Finish | Stainless steel front, Clean Touch Steel control panel, stainless steel wash cabinet |
| Capacity | 13 place settings per cycle; 10 white wine glasses |
| Recommended Use | 1–5 cycles per day; tested for 12,500 program cycles |
| Programs | 8; shortest program 52 min (QuickIntenseWash) |
| Max Final Rinse Temperature | 180°F (82°C), adjustable |
| Delay Start | Up to 24 hours |
| Electrical | 120V / 60 Hz / 1 ph, 15 A; heater 1.3 kW, total connected load 1.4 kW |
| Plug & Cord | NEMA 5-15 plug, 5 ft 7 in (1.7 m) cord |
| Alternative Connection (per Miele) | 2N AC 120/208-240V, 60 Hz, 30 A; total connected load 3.7–4 kW |
| Water Supply | 1 connection, cold or hot up to 140°F (60°C); 3/4" GHT; 0.73–145 psi |
| Inlet & Drain Hoses | 4.9 ft (1.5 m) inlet hose; 4.9 ft (1.5 m) drain hose, 7/8" (22 mm) ID |
| Drain Pump Delivery Head | Up to 39 3/8" (100 cm) |
| Water Softener | Integrated, up to 38 gpg (6.5 mmol/l) |
| Drying | Active condensation drying, extra drying, AutoOpen |
| Dimensions (W x H x D) | 23 1/2" x 31 3/4–34 1/4" x 22 1/2" (598 x 805–870 x 570 mm) |
| Minimum Niche Width | 23 5/8" (600 mm) |
| Usable Wash Cabinet | 21 5/16" W x 20 1/8" H; basket depth 17 3/4" |
| In-Feed Height | 8 5/16" (210 mm) above floor |
| Noise Level | 46 dB(A) |
| Shipping Weight / Carton | 97 lbs (44 kg); 26.4" W x 38.2" H x 26.4" D |
| Connectivity | Wi-Fi (WiFiConn@ct), Miele MOVE network-enabled |
| Approvals | ADA compliant; UL; EN 1717; DIN EN 17735 |
| Optional Accessory | APFD 210 bottle basket (sold separately) |
Frequently Asked Questions
Does the Miele PFD 101 U plug into a standard outlet?
Yes. It runs on 120V / 60 Hz at 15 A and comes with a NEMA 5-15 plug on a 5 ft 7 in cord. Total connected load is 1.4 kW, so a standard 15 A, 120V circuit is all it needs.
How many cycles per day is the PFD 101 U designed for?
Miele rates the PFD 101 U for 1 to 5 wash cycles per day and tests it for 12,500 program cycles. For 5 to 40 cycles per day, Miele's PFD 401 is rated for 28,000 cycles.
How long does a wash cycle take on the PFD 101 U?
The fastest program, QuickIntenseWash, takes 52 minutes plus 20 minutes of extra drying. Universal takes 63 minutes, China & Crystal 35 minutes, and Rinse & Hold 13 minutes, measured at 120V with 131°F supply water.
Does the PFD 101 U need a hot water supply?
No. It has one water connection that accepts cold or hot water up to 140°F (60°C), and its built-in heater raises the final rinse to as much as 180°F (82°C).
What size opening does the PFD 101 U need?
The unit is 23 1/2" wide, 31 3/4" to 34 1/4" high, and 22 1/2" deep, and it needs a niche at least 23 5/8" (600 mm) wide.
Is the Miele PFD 101 U ADA compliant?
Yes. Miele lists the PFD 101 U as ADA compliant, with an in-feed height of 8 5/16" (210 mm) above the floor and a height range of 31 3/4" to 34 1/4".
