Miele PFD 102 i ProfiLine 24 Inch Panel-Ready Semi-Integrated Dishwasher 120V Fresh Water 13 Place Settings
Miele PFD 102 i — 24" ProfiLine Semi-Integrated Dishwasher, 120V
The Miele PFD 102 i brings Miele's ProfiLine fresh water wash system into a panel-ready, semi-integrated 24-inch cabinet: the stainless steel wash cabinet hides behind a custom door panel that matches the surrounding cabinetry, while the Clean Touch Steel control panel stays visible above it. This version plugs into a standard 120V / 15 A NEMA 5-15 outlet, reaches a final rinse of up to 180°F (82°C), and finishes its fastest program, QuickIntenseWash, in 52 minutes. Rated for up to 5 cycles a day and tested for 12,500 program cycles, it suits offices, care homes, schools, and show kitchens where the dishwasher should disappear into the millwork. ExtraComfort baskets hold 13 place settings or 10 white wine glasses, BrilliantLight LEDs light the wash cabinet, and Wi-Fi is standard.
Key Features of the PFD 102 i
The PFD 102 i shares its wash system, baskets, and 120V electrical package with the PFD 101 U, and adds a panel-ready front and interior lighting for installations where appearance matters as much as hygiene.

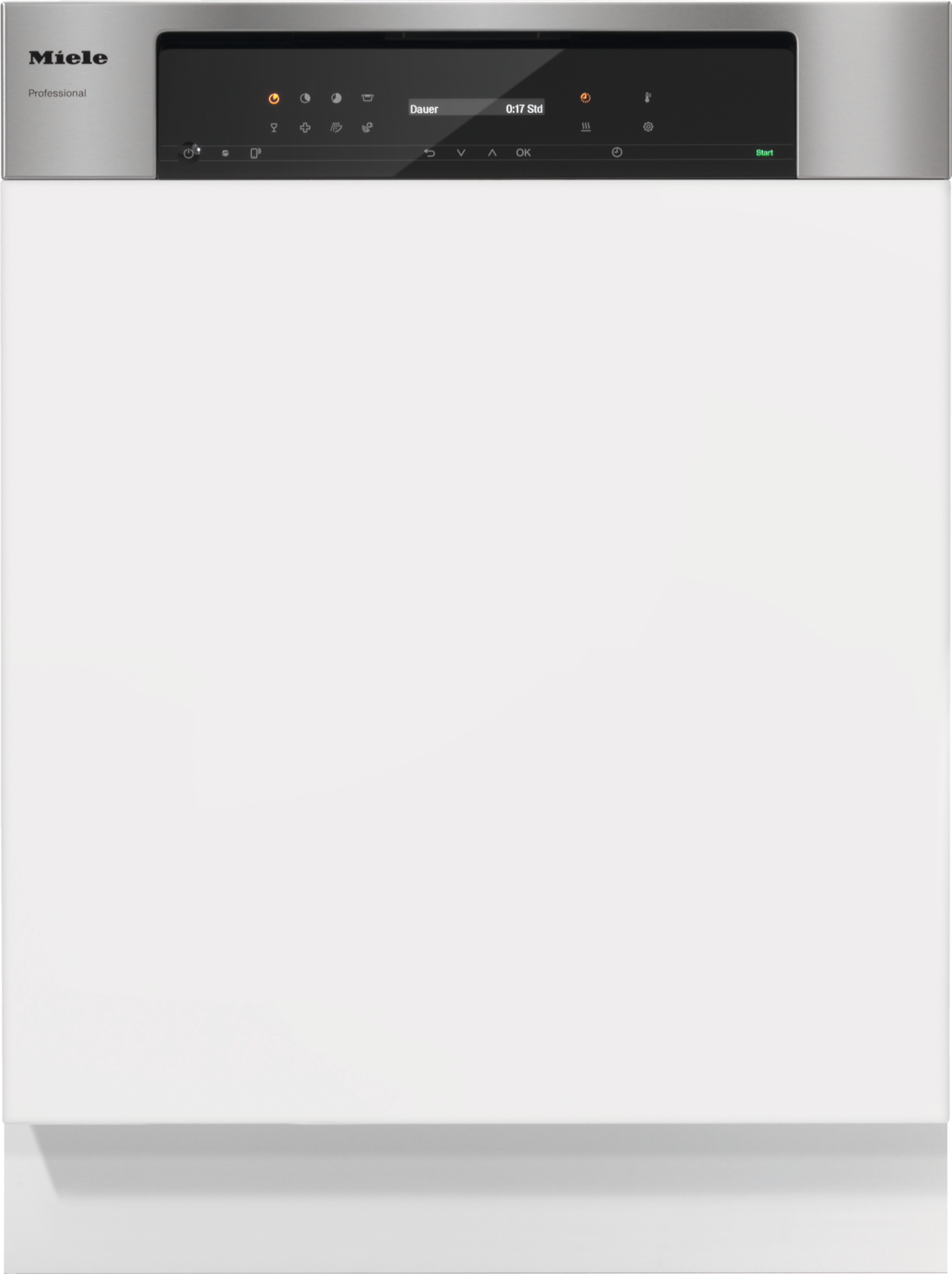

Panel-Ready Semi-Integrated Design

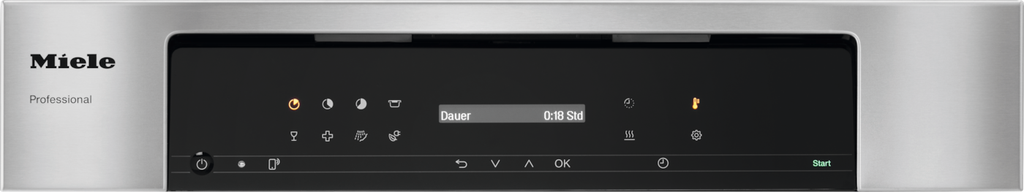

The door accepts a custom front panel 23.4" wide, 0.63" to 0.79" thick, and 8.8 to 24.3 lbs, leaving only the Clean Touch Steel control strip exposed so the machine blends into the cabinet run.
Fresh Water Wash System
Every program step uses fresh water rather than a recirculated wash tank, giving repeated water changes and filtration for consistently high cleaning results on each load.
180°F Final Rinse & SaniWash
A built-in 1.3 kW heater takes the final rinse up to 180°F (82°C) with an adjustable rinse temperature, and the SaniWash program provides a dedicated hygiene cycle of 85 minutes on 120V.

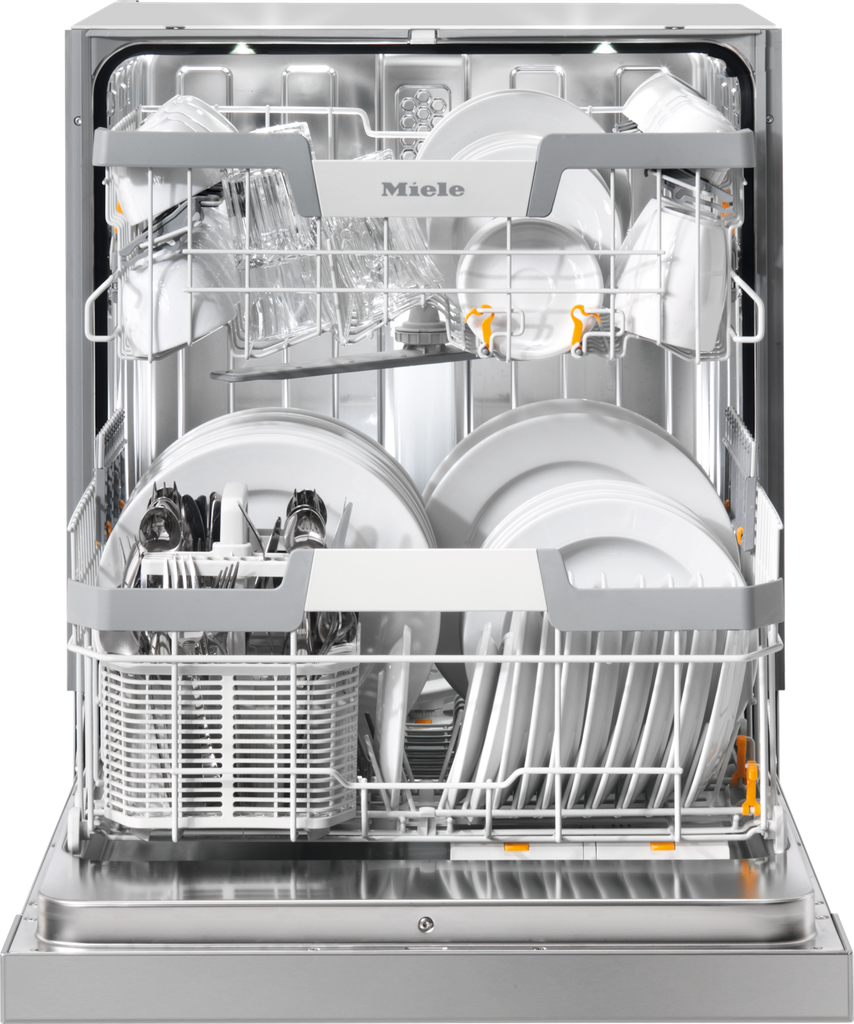

ExtraComfort Baskets

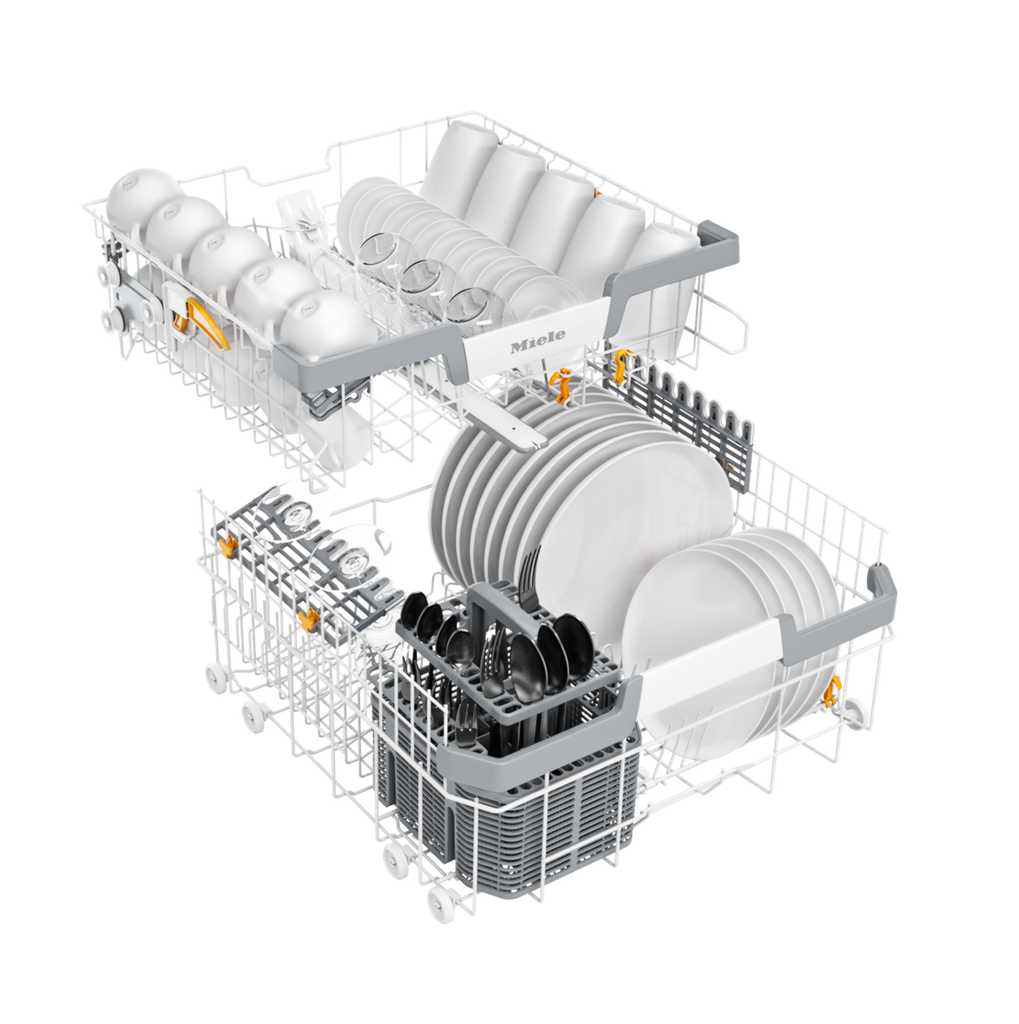

Two levels of FlexLine baskets hold 13 place settings or 10 white wine glasses, with a height-adjustable upper basket, two FlexCare glass holders, a FlexCare cup rack, and a cutlery basket.
BrilliantLight & AutoOpen Drying
LED BrilliantLight illuminates the wash cabinet during loading, and AutoOpen opens the door at the end of the cycle after active condensation drying so steam escapes and dishes dry faster.
Softener, Wi-Fi & Delay Start
An integrated softener handles water up to 38 gpg, WiFiConn@ct and Miele MOVE networking come standard, and a delay start of up to 24 hours runs loads off-hours.
PFD 102 i Program Overview & Cycle Times
Eight programs cover everyday dishes, heavily soiled pots, delicate crystal, and plastics. Times below are Miele's published cycle times for the 120V, 60 Hz version.
| QuickIntenseWash | 52 min |
|---|---|
| Universal | 63 min |
| Pots & Pans | 76 min |
| China & Crystal | 35 min |
| SaniWash | 85 min |
| ECO | 118 min |
| Plastics | 47 min (+30 min drying) |
| Rinse & Hold | 13 min |
Front panel required: The PFD 102 i ships without a door front. Order a Miele GFV 60/65-7 or GFV 60/60-7 Clean Touch Steel panel, or have a custom panel made to Miele's dimensions. It is rated for 1 to 5 wash cycles per day; for heavier use, Miele's MasterLine PFD 401 is rated for 5 to 40 cycles per day. A faster 120/208-240V, 30 A version of the PFD 102 i (24-minute QuickIntenseWash) is also available.
Ideal Applications
Miele designed the PFD 10x series for settings that need professional hygiene and fast turnaround at modest daily volumes, and the panel-ready front lets it sit inside finished cabinetry.
PFD 102 i Specifications
| Model | Miele PFD 102 i, 120V (material no. 11605430) |
|---|---|
| Range | ProfiLine |
| Type | Semi-integrated fresh water front loader, 2 basket levels, panel-ready |
| Front | Without front; custom or Miele GFV panel required |
| Control Panel | Clean Touch Steel, adjustable height 4 5/8" to 5 7/8" (116–150 mm) |
| Door Panel Requirements | 23.4" (595 mm) wide; 19.7" to 25.7" (500–654 mm) long; 0.63" to 0.79" (16–20 mm) thick; 8.8 to 24.3 lbs (4–11 kg) |
| Capacity | 13 place settings per cycle; 10 white wine glasses |
| Recommended Use | 1–5 cycles per day; tested for 12,500 program cycles |
| Programs | 8; shortest program 52 min (QuickIntenseWash) |
| Max Final Rinse Temperature | 180°F (82°C), adjustable |
| Delay Start | Up to 24 hours |
| Electrical | 120V / 60 Hz / 1 ph, 15 A; heater 1.3 kW, total connected load 1.4 kW |
| Plug & Cord | NEMA 5-15 plug, 5 ft 7 in (1.7 m) cord, convertible to hardwire |
| Water Supply | 1 connection, cold or hot up to 140°F (60°C); 3/4" GHT; 0.73–145 psi |
| Inlet & Drain Hoses | 4.9 ft (1.5 m) inlet hose; 4.9 ft (1.5 m) drain hose, 7/8" (22 mm) ID |
| Water Softener | Integrated, up to 38 gpg (6.5 mmol/l) |
| Drying | Active condensation drying, extra drying, AutoOpen |
| Interior Lighting | BrilliantLight LED |
| Dimensions (W x H x D) | 23 1/2" x 31 3/4–34 1/4" x 22 1/2" (598 x 805–870 x 570 mm); depth excludes door panel |
| Minimum Niche | 23 5/8" W x 31 3/4" H x 22 1/2" D (600 x 805 x 570 mm) |
| Usable Wash Cabinet | 21 5/16" W x 20 1/8" H; basket depth 17 3/4" |
| In-Feed Height | 8 5/16" (210 mm) above floor |
| Noise Level | 46 dB(A) |
| Shipping Weight / Carton | 121 lbs (55 kg); 26.4" W x 38.2" H x 26.4" D |
| Connectivity | Wi-Fi (WiFiConn@ct), Miele MOVE network-enabled |
| Approvals | ADA compliant; UL; EN 1717; DIN EN 17735 |
Optional Accessories
Miele door panels and baskets made for the PFD 102 i, sold separately.
| GFV 60/65-7 | Integrated front panel, Clean Touch Steel, 24" W x 25" H, for a 4" toe kick |
|---|---|
| GFV 60/60-7 | Integrated front panel, Clean Touch Steel, 24" W x 24" H, for a 6" toe kick |
| APFD 210 | Bottle basket |
Frequently Asked Questions
Does the Miele PFD 102 i come with a door panel?
No. The PFD 102 i ships without a front. Use a Miele GFV 60/65-7 or GFV 60/60-7 Clean Touch Steel panel, or a custom panel 23.4" wide, 0.63" to 0.79" thick, and weighing 8.8 to 24.3 lbs.
Does the PFD 102 i plug into a standard outlet?
Yes. This version runs on 120V / 60 Hz at 15 A with a NEMA 5-15 plug on a 5 ft 7 in cord, which can be converted to hardwire. Total connected load is 1.4 kW.
How long does a wash cycle take on the PFD 102 i 120V?
QuickIntenseWash takes 52 minutes, Universal 63 minutes, China & Crystal 35 minutes, and Rinse & Hold 13 minutes on the 120V version.
How many cycles per day is the PFD 102 i designed for?
Miele rates the PFD 102 i for 1 to 5 wash cycles per day and tests it for 12,500 program cycles.
What size opening does the PFD 102 i need?
It needs a niche at least 23 5/8" wide, 31 3/4" high, and 22 1/2" deep. The unit itself is 23 1/2" wide and 31 3/4" to 34 1/4" high.
Is the Miele PFD 102 i ADA compliant?
Yes. Miele lists the PFD 102 i as ADA compliant, with an in-feed height of 8 5/16" (210 mm) above the floor.
