Miele PFD 102 i — 24" ProfiLine Semi-Integrated Dishwasher, 120/208-240V
The Miele PFD 102 i 120/208-240V is the faster of the two PFD 102 i versions: wired for a 120/208-240V, 30 A circuit, its 3.5–3.8 kW heater cuts the QuickIntenseWash program to 24 minutes, less than half the time of the 120V model. The panel-ready, semi-integrated design hides the stainless steel wash cabinet behind a custom door panel that matches the surrounding cabinetry, while the Clean Touch Steel control panel stays visible above it. It washes with fresh water on every program step, reaches a final rinse of up to 180°F (82°C), and is rated for up to 5 cycles a day and tested for 12,500 program cycles. ExtraComfort baskets hold 13 place settings or 10 white wine glasses, BrilliantLight LEDs light the wash cabinet, and Wi-Fi is standard.
Key Features of the PFD 102 i 120/208-240V
This version keeps the PFD 102 i's panel-ready cabinet, baskets, and controls and pairs them with a higher-powered electrical package for much shorter cycles.
24-Minute QuickIntenseWash
A 3.5–3.8 kW heater on the 120/208-240V supply runs QuickIntenseWash in 24 minutes, Universal in 35, and SaniWash in 54 — versus 52, 63, and 85 minutes on the 120V version.

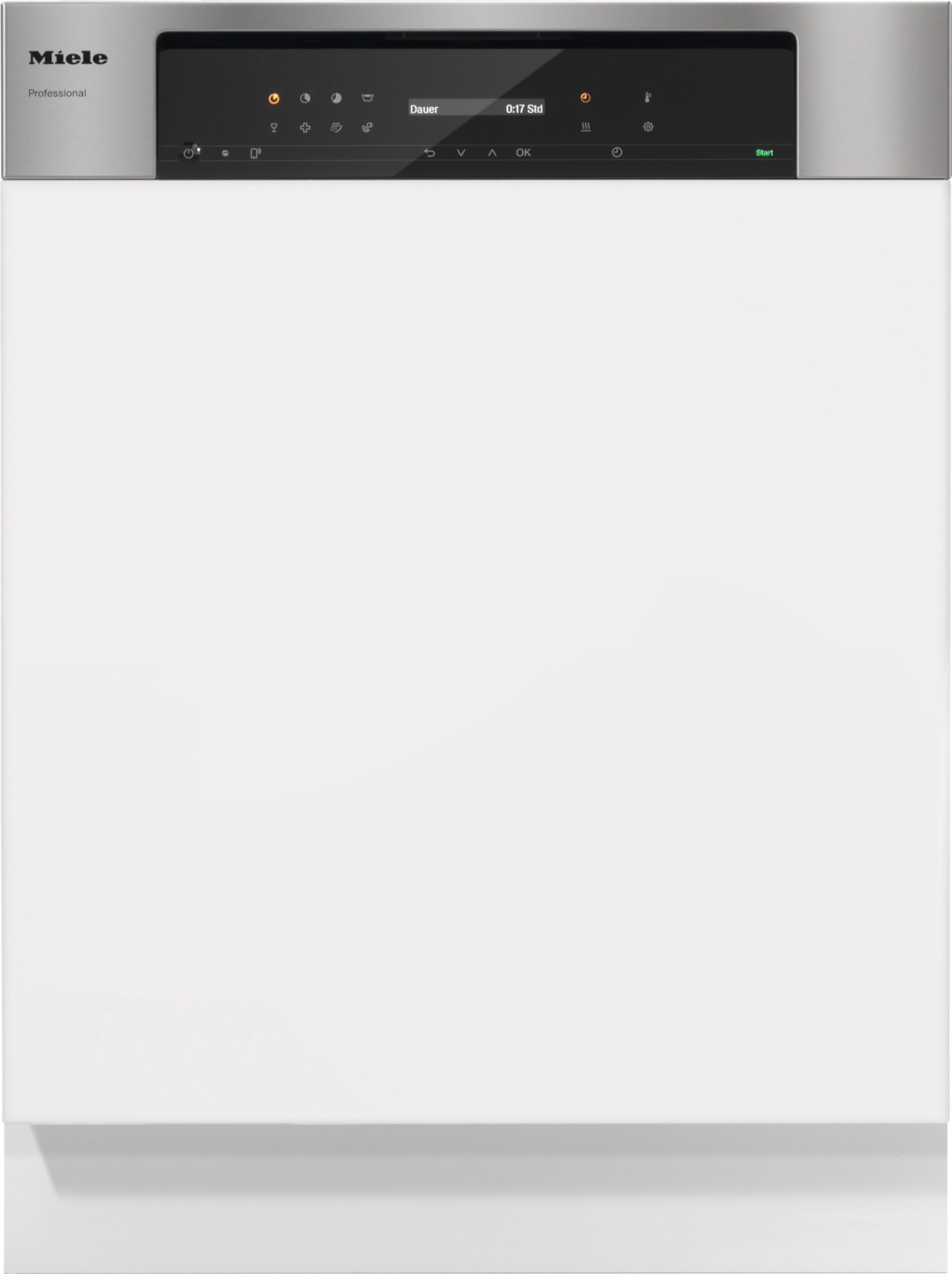

Panel-Ready Semi-Integrated Design
The door accepts a custom front panel 23.4" wide, 0.63" to 0.79" thick, and 8.8 to 24.3 lbs, leaving only the Clean Touch Steel control strip exposed.
Fresh Water Wash & 180°F Rinse
Every program step uses fresh water instead of a recirculated tank, and the final rinse reaches up to 180°F (82°C) with an adjustable rinse temperature.

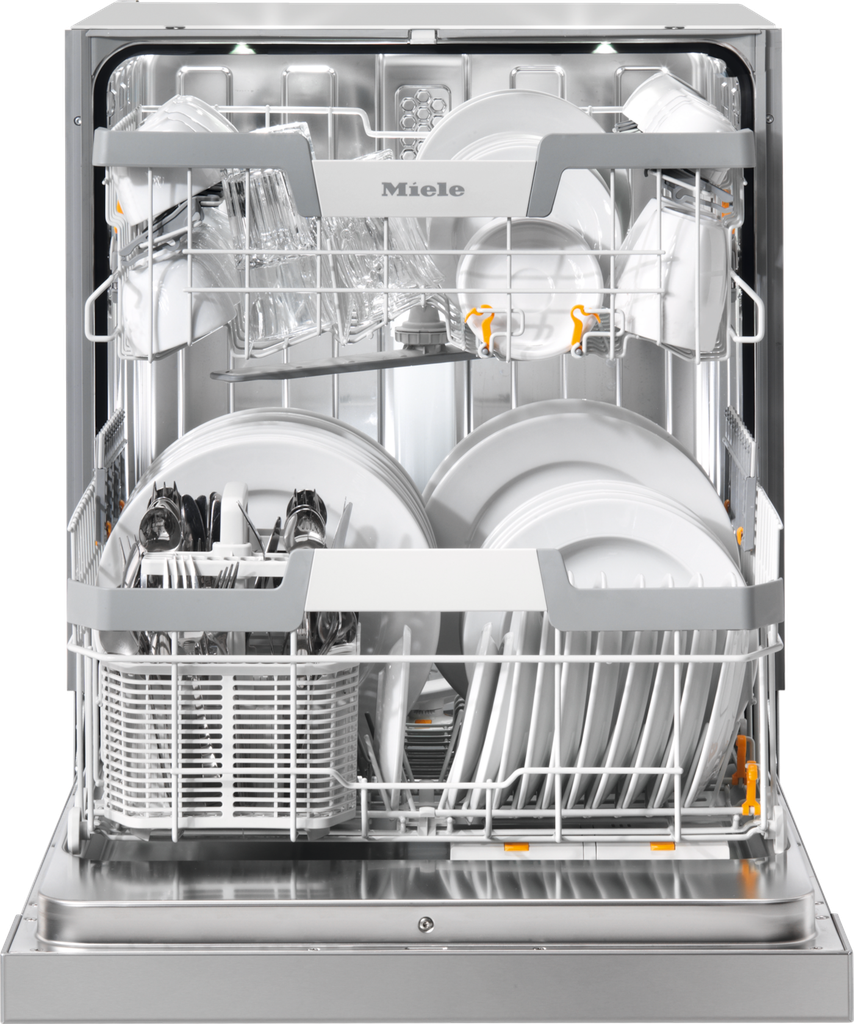

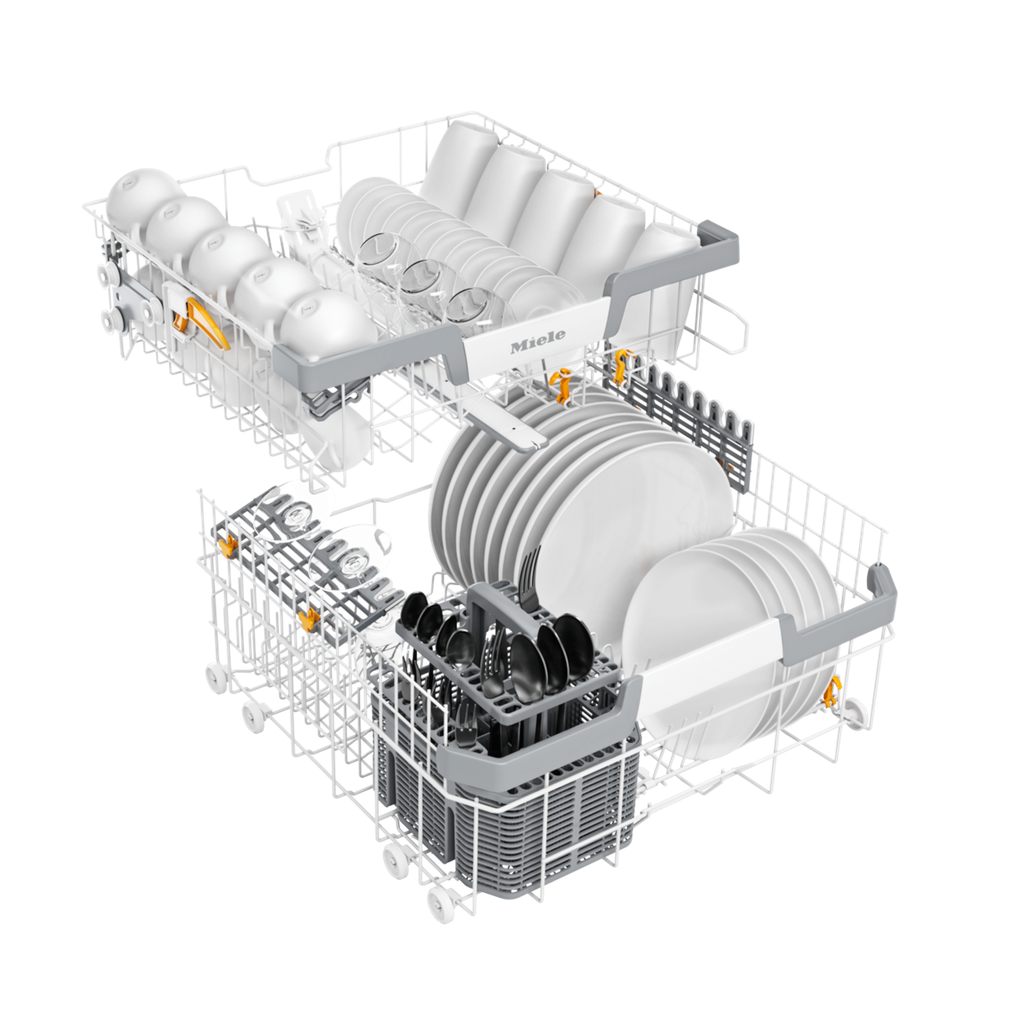

ExtraComfort Baskets
Two levels of FlexLine baskets hold 13 place settings or 10 white wine glasses, with a height-adjustable upper basket, two FlexCare glass holders, a FlexCare cup rack, and a cutlery basket.
BrilliantLight & AutoOpen Drying
LED BrilliantLight illuminates the wash cabinet, and AutoOpen opens the door at the end of the cycle after active condensation drying so steam escapes and dishes dry faster.
Softener, Wi-Fi & Delay Start
An integrated softener handles water up to 38 gpg, WiFiConn@ct and Miele MOVE networking come standard, and a delay start of up to 24 hours runs loads off-hours.
PFD 102 i Program Overview & Cycle Times
Eight programs cover everyday dishes, heavily soiled pots, delicate crystal, and plastics. Times below are Miele's published cycle times for the 120/208-240V, 60 Hz version.
| QuickIntenseWash | 24 min |
|---|---|
| Universal | 35 min |
| Pots & Pans | 48 min |
| China & Crystal | 22 min |
| SaniWash | 54 min |
| ECO | 245 min |
| Plastics | 33 min (+30 min drying) |
| Rinse & Hold | 13 min |
Electrical & front panel: This version needs a 4-wire 120/208-240V, 30 A circuit (two hot legs, a neutral, and a ground) with a NEMA 14-30 receptacle. It ships without a door front — order a Miele GFV 60/65-7 or GFV 60/60-7 Clean Touch Steel panel, or a custom panel made to Miele's dimensions. For a standard 120V outlet, choose the PFD 102 i 120V version instead.
Ideal Applications
Built for settings that need professional hygiene and quick turnaround at modest daily volumes, with a front that disappears into finished cabinetry.

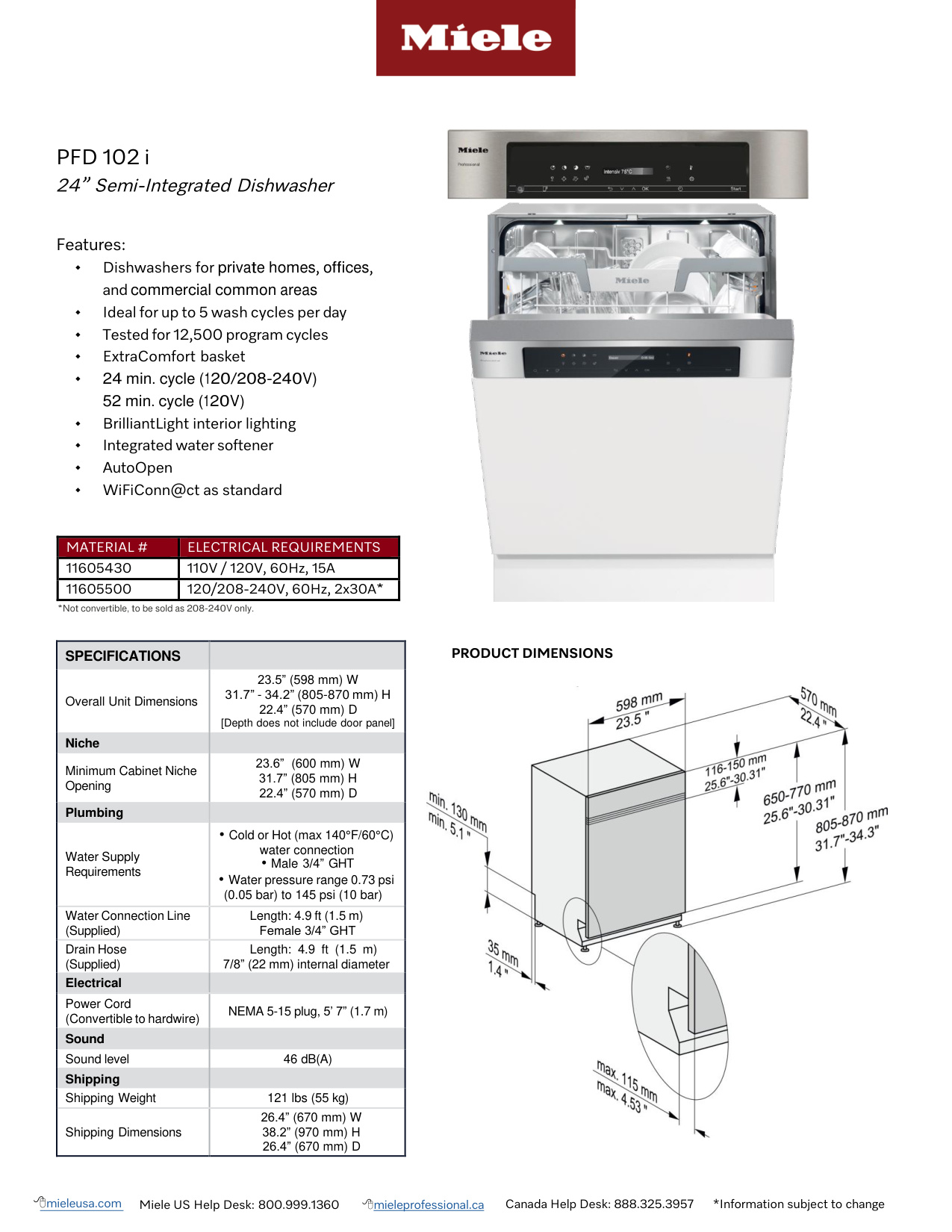

PFD 102 i 120/208-240V Specifications
| Model | Miele PFD 102 i, 120/208-240V (material no. 11605500) |
|---|---|
| Range | ProfiLine |
| Type | Semi-integrated fresh water front loader, 2 basket levels, panel-ready |
| Front | Without front; custom or Miele GFV panel required |

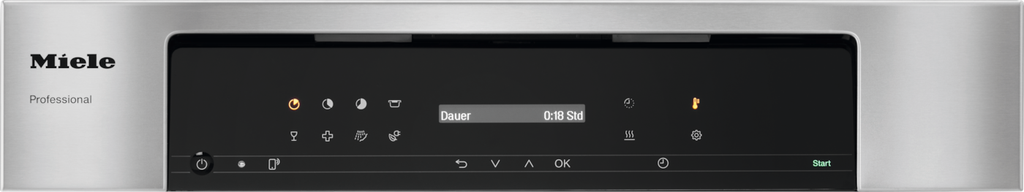

| Control Panel | Clean Touch Steel, adjustable height 4 5/8" to 5 7/8" (116–150 mm) |
| Door Panel Requirements | 23.4" (595 mm) wide; 19.7" to 25.7" (500–654 mm) long; 0.63" to 0.79" (16–20 mm) thick; 8.8 to 24.3 lbs (4–11 kg) |
| Capacity | 13 place settings per cycle; 10 white wine glasses |
| Recommended Use | 1–5 cycles per day; tested for 12,500 program cycles |
| Programs | 8; shortest program 24 min (QuickIntenseWash) |
| Max Final Rinse Temperature | 180°F (82°C), adjustable |
| Delay Start | Up to 24 hours |
| Electrical | 2N AC 120/208-240V / 60 Hz, 30 A; heater 3.5–3.8 kW, total connected load 3.7–4 kW |
| Plug | NEMA 14-30 |
| Water Supply | 1 connection, cold or hot up to 140°F (60°C); 3/4" GHT; 0.73–145 psi |
| Inlet & Drain Hoses | 4.9 ft (1.5 m) inlet hose; 4.9 ft (1.5 m) drain hose, 7/8" (22 mm) ID |
| Water Softener | Integrated, up to 38 gpg (6.5 mmol/l) |
| Drying | AutoOpen assisted drying, active condensation drying, extra drying |
| Interior Lighting | BrilliantLight LED |
| Dimensions (W x H x D) | 23 1/2" x 31 3/4–34 1/4" x 22 1/2" (598 x 805–870 x 570 mm); depth excludes door panel |
| Minimum Niche | 23 5/8" W x 31 3/4" H x 22 1/2" D (600 x 805 x 570 mm) |
| Usable Wash Cabinet | 21 5/16" W x 20 1/8" H; basket depth 17 3/4" |
| In-Feed Height | 8 5/16" (210 mm) above floor |
| Noise Level | 46 dB(A) |
| Shipping Weight / Carton | 121 lbs (55 kg); 26.4" W x 38.2" H x 26.4" D |
| Connectivity | Wi-Fi (WiFiConn@ct), Miele MOVE network-enabled |
| Approvals | ADA compliant; UL; EN 1717; DIN EN 17735 |
Optional Accessories
Miele door panels and baskets made for the PFD 102 i, sold separately.
| GFV 60/65-7 | Integrated front panel, Clean Touch Steel, 24" W x 25" H, for a 4" toe kick |
|---|---|
| GFV 60/60-7 | Integrated front panel, Clean Touch Steel, 24" W x 24" H, for a 6" toe kick |
| APFD 210 | Bottle basket |
Frequently Asked Questions
What electrical supply does the PFD 102 i 120/208-240V need?
It needs a 4-wire 120/208-240V, 60 Hz, 30 A circuit with two hot legs, a neutral, and a ground, and connects with a NEMA 14-30 plug. Total connected load is 3.7 to 4 kW.
How fast is the PFD 102 i 120/208-240V?
QuickIntenseWash takes 24 minutes, China & Crystal 22 minutes, Universal 35 minutes, and SaniWash 54 minutes on this version.
Does the PFD 102 i come with a door panel?
No. It ships without a front. Use a Miele GFV 60/65-7 or GFV 60/60-7 Clean Touch Steel panel, or a custom panel 23.4" wide, 0.63" to 0.79" thick, and weighing 8.8 to 24.3 lbs.
How many cycles per day is the PFD 102 i designed for?
Miele rates the PFD 102 i for 1 to 5 wash cycles per day and tests it for 12,500 program cycles.
What size opening does the PFD 102 i need?
It needs a niche at least 23 5/8" wide, 31 3/4" high, and 22 1/2" deep. The unit itself is 23 1/2" wide and 31 3/4" to 34 1/4" high.
Is the Miele PFD 102 i ADA compliant?
Yes. Miele lists the PFD 102 i as ADA compliant, with an in-feed height of 8 5/16" (210 mm) above the floor.
