Miele PFD 104 SCVi XXL ProfiLine 24 Inch Fully Integrated Dishwasher 120V Fresh Water 16 Place Settings 3D MultiFlex Tray
Miele PFD 104 SCVi XXL — 24" ProfiLine Fully Integrated Dishwasher, 120V

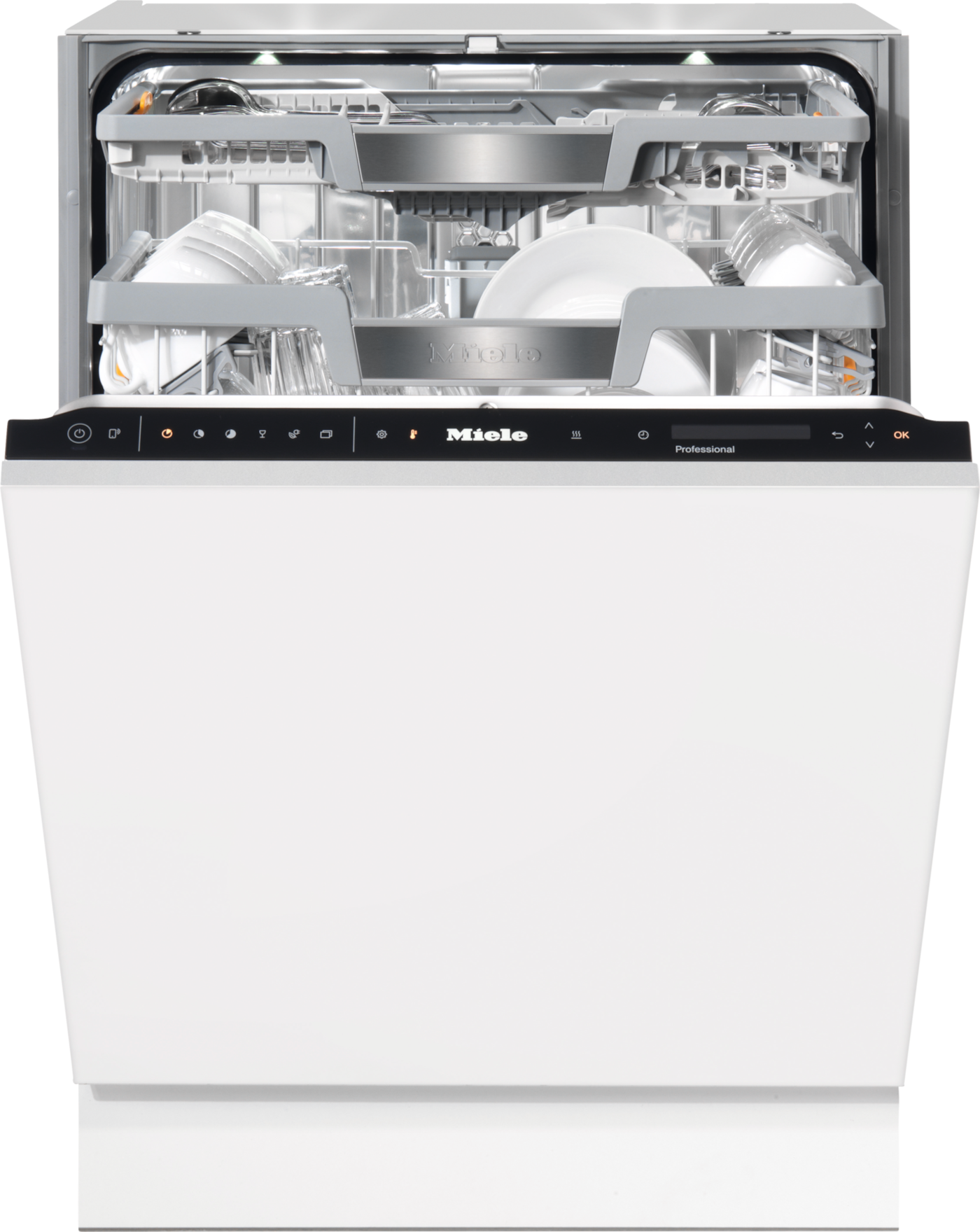

The Miele PFD 104 SCVi XXL is the largest and most concealed machine in Miele's ProfiLine range. Its fully integrated door takes a custom panel that covers the whole front, with the Obsidian Black controls moved to the top edge of the door, and Knock2open lets staff open it with two taps in handleless kitchens. The XXL cabinet holds 16 place settings or 16 white wine glasses in MaxiComfort baskets topped by Miele's patented 3D MultiFlex tray. This version plugs into a standard 120V / 15 A NEMA 5-15 outlet, washes with fresh water on every step, reaches a final rinse of 180°F (82°C), and is rated for up to 5 cycles a day over 12,500 tested program cycles.
Key Features of the PFD 104 SCVi XXL
The PFD 104 SCVi XXL keeps the ProfiLine fresh water wash system and 120V electrical package of the PFD 101 U and PFD 102 i, and adds a taller XXL cabinet, a third loading level, and a front that disappears completely.
Fully Integrated, Handleless Front
The door accepts a full-height custom panel 23.4" wide and 27.2" to 31.9" long; controls sit on the top edge, and Knock2open opens the door with two taps so no handle is needed.
XXL Capacity & 3D MultiFlex Tray

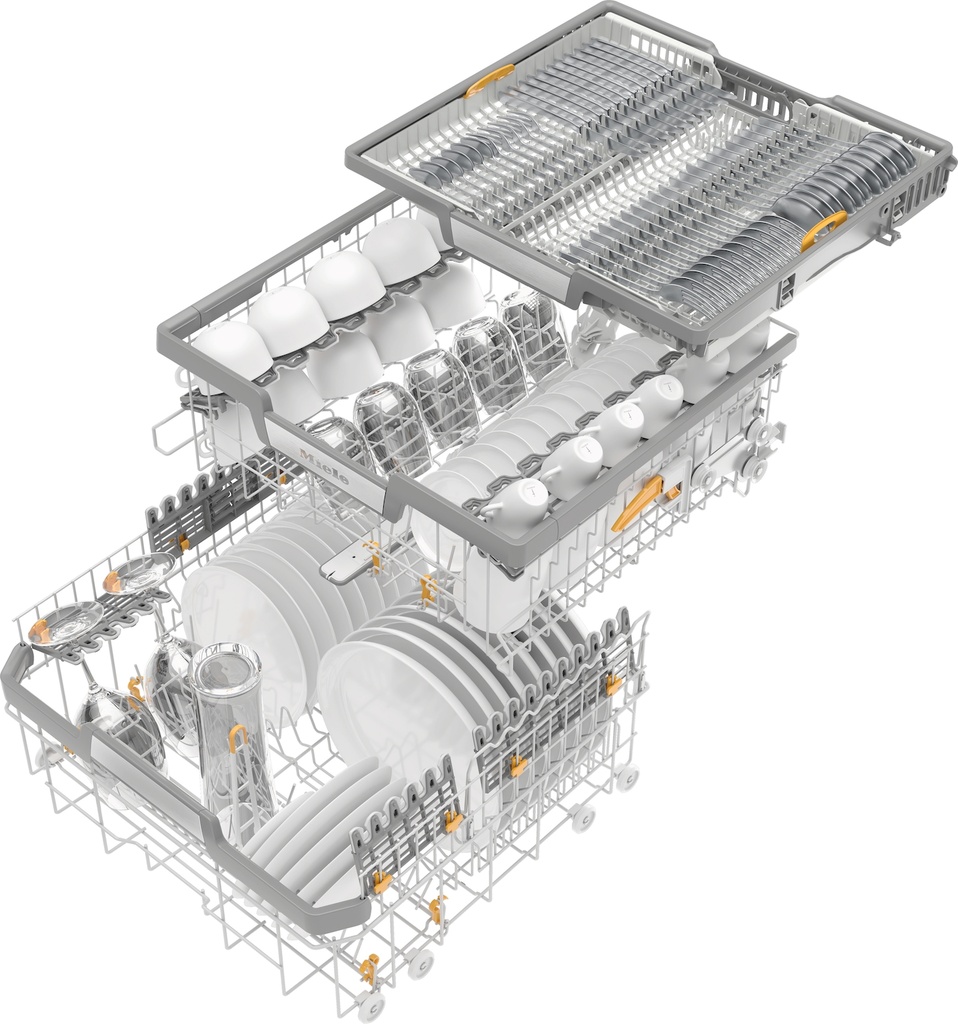

MaxiComfort baskets hold 16 place settings or 16 white wine glasses, with four FlexCare glass holders, two FlexCare cup racks, and the patented 3D MultiFlex tray for cutlery and utensils.
Fresh Water Wash & 180°F Rinse
Every program step uses fresh water rather than a recirculated tank, and a 1.3 kW heater takes the final rinse up to 180°F (82°C) with an adjustable temperature.
AutoOpen & AutoClose
AutoOpen opens the door at the end of the cycle so steam escapes and dishes dry faster, and AutoClose pulls the door shut gently once it is pushed near the closed position.
BrilliantLight & Quiet Operation
LED BrilliantLight illuminates the XXL wash cabinet during loading, and the machine runs at 45 dB(A), quiet enough for open-plan offices and guest-facing kitchens.
Softener, Wi-Fi & Delay Start
An integrated softener handles water up to 38 gpg, WiFiConn@ct and Miele MOVE networking come standard, and a delay start of up to 24 hours runs loads off-hours.
PFD 104 SCVi XXL Program Overview & Cycle Times
Eight programs cover everyday dishes, heavily soiled pots, delicate crystal, and plastics. Times below are Miele's published cycle times for the 120V, 60 Hz version.
| QuickIntenseWash | 52 min |
|---|---|
| Universal | 63 min |
| Pots & Pans | 76 min |
| China & Crystal | 35 min |
| SaniWash | 85 min |
| ECO | 118 min |
| Plastics | 47 min (+30 min drying) |
| Rinse & Hold | 13 min |
Front panel & niche: The PFD 104 SCVi XXL ships without a door front. Order a Miele GFVi panel (24" x 30" for a 4" toe kick, or 24" x 28" for a 6" toe kick) or a custom panel 0.63" to 0.79" thick weighing 11 to 26.5 lbs. The XXL body needs a taller niche than the PFD 101 U and 102 i: at least 23 5/8" W x 33 3/4" H x 22 7/16" D. A faster 120/208-240V, 30 A version (24-minute QuickIntenseWash) is also available.
Ideal Applications
The PFD 104 SCVi XXL is meant for settings where the dishwasher should be invisible and each load should be as large as possible.

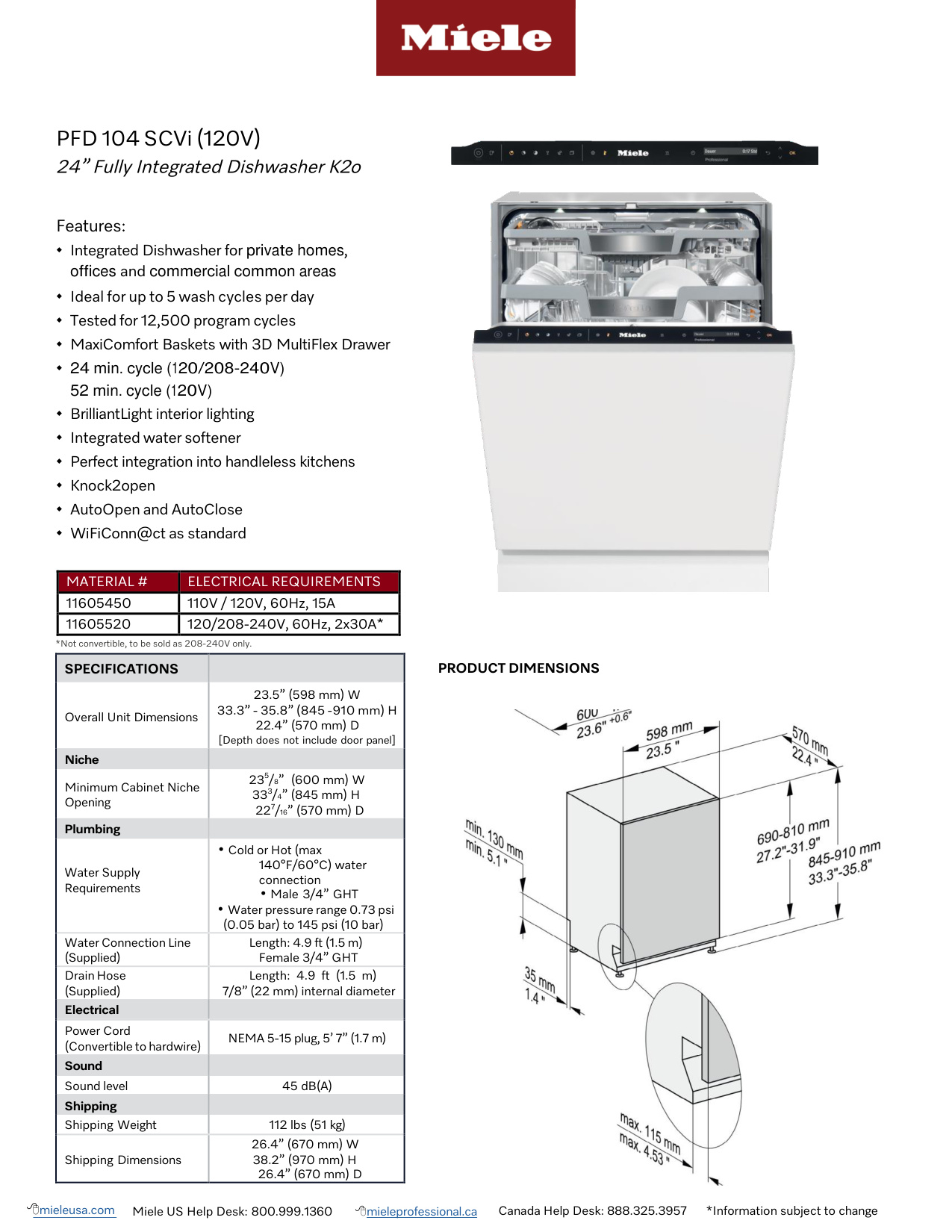

PFD 104 SCVi XXL 120V Specifications
| Model | Miele PFD 104 SCVi XXL, 120V (material no. 11605450) |
|---|---|
| Range | ProfiLine |
| Type | Fully integrated XXL fresh water front loader, panel-ready |
| Front | Without front; custom or Miele GFVi panel required |
| Controls | Obsidian Black, on top edge of door; Knock2open |
| Door Panel Requirements | 23.4" (595 mm) wide; 27.2" to 31.9" (690–810 mm) long; 0.63" to 0.79" (16–20 mm) thick; 11 to 26.5 lbs (5–12 kg) |
| Capacity | 16 place settings per cycle; 16 white wine glasses |
| Baskets | MaxiComfort baskets, 3D MultiFlex tray, 4 FlexCare glass holders, 2 FlexCare cup racks |
| Recommended Use | 1–5 cycles per day; tested for 12,500 program cycles |
| Programs | 8; shortest program 52 min (QuickIntenseWash) |
| Max Final Rinse Temperature | 180°F (82°C), adjustable |
| Delay Start | Up to 24 hours |
| Electrical | 120V / 60 Hz / 1 ph, 15 A; heater 1.3 kW, total connected load 1.4 kW |
| Plug & Cord | NEMA 5-15 plug, 5 ft 7 in (1.7 m) cord, convertible to hardwire |
| Water Supply | 1 connection, cold or hot up to 140°F (60°C); 3/4" GHT; 0.73–145 psi |
| Inlet & Drain Hoses | 4.9 ft (1.5 m) inlet hose; 4.9 ft (1.5 m) drain hose, 7/8" (22 mm) ID |
| Water Softener | Integrated, up to 38 gpg (6.5 mmol/l) |
| Drying | Active condensation drying, extra drying, AutoOpen; AutoClose door |
| Interior Lighting | BrilliantLight LED |
| Dimensions (W x H x D) | 23 1/2" x 33.3–35.8" x 22.4" (598 x 845–910 x 570 mm); depth excludes door panel |
| Minimum Niche | 23 5/8" W x 33 3/4" H x 22 7/16" D (600 x 845 x 570 mm) |
| Usable Wash Cabinet Width | 22 7/8" (580 mm) |
| Noise Level | 45 dB(A) |
| Shipping Weight / Carton | 112 lbs (51 kg); 26.4" W x 38.2" H x 26.4" D |
| Connectivity | Wi-Fi (WiFiConn@ct), Miele MOVE network-enabled |
| Approvals | UL; EN 1717; DIN EN 17735 |
Optional Accessories
Miele fully integrated door panels made for the PFD 104 SCVi XXL, Clean Touch Steel finish, sold separately.
| GFVi 701/77 | No handle, 24" W x 30" H, for a 4" toe kick |
|---|---|
| GFVi 710/77 | PureLine handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 711/77 | ContourLine handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 709/77 | Pocket handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 701/72 | No handle, 24" W x 28" H, for a 6" toe kick |
| GFVi 711/72 | ContourLine handle, 24" W x 28" H, for a 6" toe kick |
Frequently Asked Questions
How many place settings does the Miele PFD 104 SCVi XXL hold?
It holds 16 place settings per cycle, or 16 white wine glasses, in MaxiComfort baskets with the 3D MultiFlex tray on top.
Does the PFD 104 SCVi XXL come with a door panel?
No. It ships without a front. Use a Miele GFVi panel or a custom panel 23.4" wide, 27.2" to 31.9" long, 0.63" to 0.79" thick, and weighing 11 to 26.5 lbs.
How do you open the PFD 104 SCVi XXL without a handle?
Knock2open opens the door when you tap the front twice, so the panel can be installed without a handle in handleless kitchens. AutoClose pulls the door shut once it is pushed near closed.
Does the PFD 104 SCVi XXL 120V plug into a standard outlet?
Yes. This version runs on 120V / 60 Hz at 15 A with a NEMA 5-15 plug on a 5 ft 7 in cord, convertible to hardwire. QuickIntenseWash takes 52 minutes.
What size niche does the PFD 104 SCVi XXL need?
It needs a niche at least 23 5/8" wide, 33 3/4" high, and 22 7/16" deep. The unit is 23 1/2" wide and 33.3" to 35.8" high.
How many cycles per day is the PFD 104 SCVi XXL designed for?
Miele rates it for 1 to 5 wash cycles per day and tests it for 12,500 program cycles.
