Miele PFD 104 SCVi XXL ProfiLine 24 Inch Fully Integrated Dishwasher 120/208-240V Fresh Water 16 Place Settings 3D MultiFlex Tray
Miele PFD 104 SCVi XXL — 24" ProfiLine Fully Integrated Dishwasher, 120/208-240V
The Miele PFD 104 SCVi XXL 120/208-240V combines the largest, most concealed ProfiLine cabinet with Miele's high-power electrical package. On a 120/208-240V, 30 A circuit its 3.5–3.8 kW heater runs QuickIntenseWash in 24 minutes, less than half the 52 minutes of the 120V version. The fully integrated door takes a full-height custom panel, the Obsidian Black controls sit on the door's top edge, and Knock2open opens it with two taps in handleless kitchens. The XXL cabinet holds 16 place settings or 16 white wine glasses in MaxiComfort baskets with Miele's patented 3D MultiFlex tray, washes with fresh water on every step, and reaches a 180°F (82°C) final rinse.
Key Features of the PFD 104 SCVi XXL 120/208-240V
This version keeps the XXL cabinet, 3D MultiFlex tray, and handleless front of the PFD 104 SCVi XXL and pairs them with a higher-powered heater for much shorter cycles.
24-Minute QuickIntenseWash
A 3.5–3.8 kW heater on the 120/208-240V supply runs QuickIntenseWash in 24 minutes, Universal in 35, and SaniWash in 54 — versus 52, 63, and 85 minutes on the 120V version.

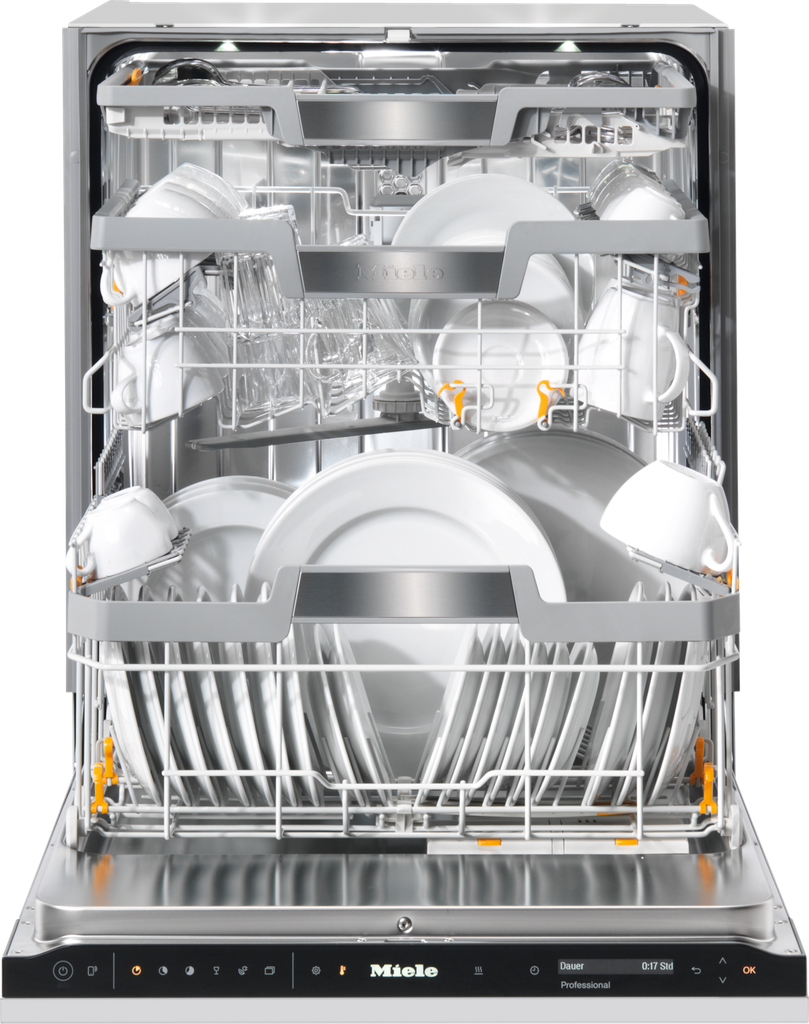

XXL Capacity & 3D MultiFlex Tray

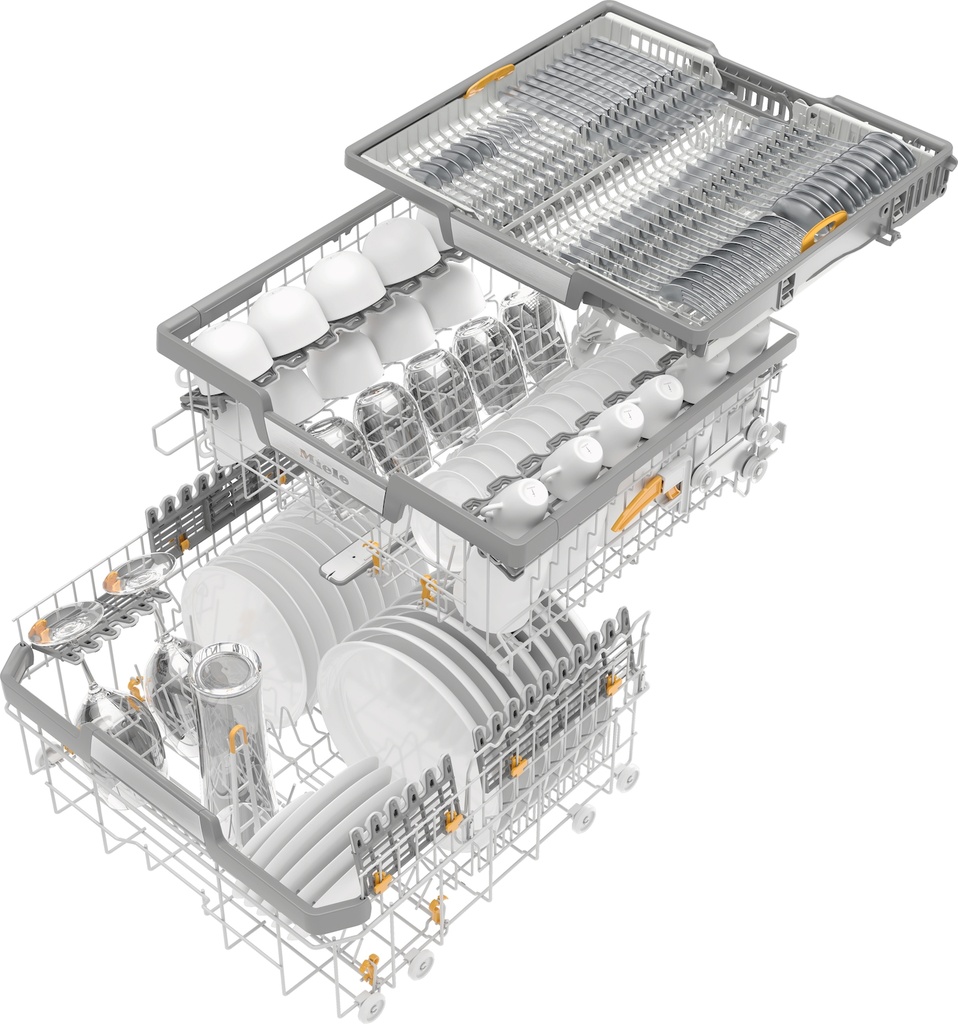

MaxiComfort baskets hold 16 place settings or 16 white wine glasses, with four FlexCare glass holders, two FlexCare cup racks, and the patented 3D MultiFlex tray for cutlery and utensils.

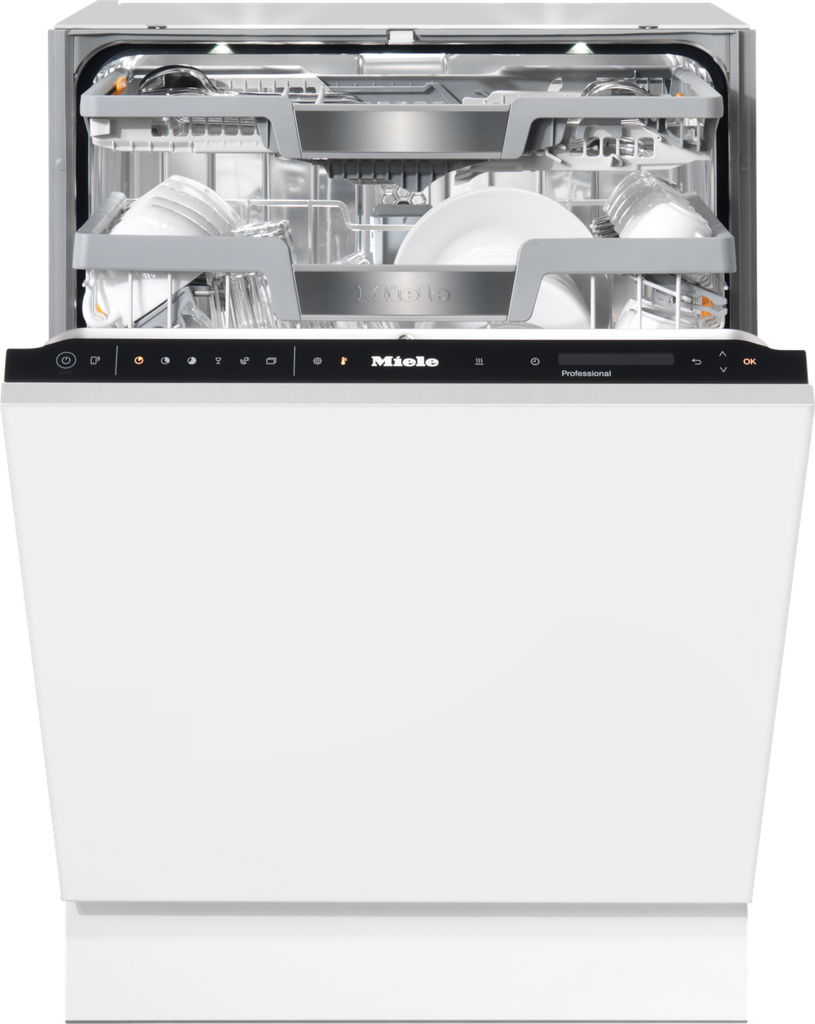

Fully Integrated, Handleless Front
The door accepts a full-height custom panel 23.4" wide and 27.2" to 31.9" long; controls sit on the top edge, and Knock2open opens the door with two taps.
Fresh Water Wash & 180°F Rinse
Every program step uses fresh water rather than a recirculated tank, and the final rinse reaches up to 180°F (82°C) with an adjustable temperature.
AutoOpen, AutoClose & BrilliantLight
AutoOpen opens the door at the end of the cycle so dishes dry faster, AutoClose pulls it shut once pushed near closed, and LED BrilliantLight illuminates the cabinet.
Softener, Wi-Fi & Delay Start
An integrated softener handles water up to 38 gpg, WiFiConn@ct and Miele MOVE networking come standard, and a delay start of up to 24 hours runs loads off-hours.
PFD 104 SCVi XXL Program Overview & Cycle Times
Eight programs cover everyday dishes, heavily soiled pots, delicate crystal, and plastics. Times below are Miele's published cycle times for the 120/208-240V, 60 Hz version.
| QuickIntenseWash | 24 min |
|---|---|
| Universal | 35 min |
| Pots & Pans | 48 min |
| China & Crystal | 22 min |
| SaniWash | 54 min |
| ECO | 245 min |
| Plastics | 33 min (+30 min drying) |
| Rinse & Hold | 13 min |
Electrical, panel & niche: This version needs a 4-wire 120/208-240V, 30 A circuit (two hot legs, a neutral, and a ground) with a NEMA 14-30 receptacle. It ships without a door front — order a Miele GFVi panel or a custom panel 0.63" to 0.79" thick weighing 11 to 26.5 lbs. The XXL body needs a niche at least 23 5/8" W x 33 3/4" H x 22 7/16" D. For a standard 120V outlet, choose the PFD 104 SCVi XXL 120V version.
Ideal Applications
Built for settings where the dishwasher should be invisible, each load should be as large as possible, and turnaround matters.
PFD 104 SCVi XXL 120/208-240V Specifications
| Model | Miele PFD 104 SCVi XXL, 120/208-240V (material no. 11605520) |
|---|---|
| Range | ProfiLine |
| Type | Fully integrated XXL fresh water front loader, panel-ready |
| Front | Without front; custom or Miele GFVi panel required |
| Controls | Obsidian Black, on top edge of door; Knock2open |
| Door Panel Requirements | 23.4" (595 mm) wide; 27.2" to 31.9" (690–810 mm) long; 0.63" to 0.79" (16–20 mm) thick; 11 to 26.5 lbs (5–12 kg) |
| Capacity | 16 place settings per cycle; 16 white wine glasses |
| Baskets | MaxiComfort baskets, 3D MultiFlex tray, 4 FlexCare glass holders, 2 FlexCare cup racks |
| Recommended Use | 1–5 cycles per day; tested for 12,500 program cycles |
| Programs | 8; shortest program 24 min (QuickIntenseWash) |
| Max Final Rinse Temperature | 180°F (82°C), adjustable |
| Delay Start | Up to 24 hours |
| Electrical | 2N AC 120/208-240V / 60 Hz, 30 A; heater 3.5–3.8 kW, total connected load 3.7–4 kW |
| Plug | NEMA 14-30 |
| Water Supply | 1 connection, cold or hot up to 140°F (60°C); 3/4" GHT; 0.73–145 psi |
| Inlet & Drain Hoses | 4.9 ft (1.5 m) inlet hose; 4.9 ft (1.5 m) drain hose, 7/8" (22 mm) ID |
| Water Softener | Integrated, up to 38 gpg (6.5 mmol/l) |
| Drying | AutoOpen assisted drying, active condensation drying, extra drying; AutoClose door |
| Interior Lighting | BrilliantLight LED |
| Dimensions (W x H x D) | 23 1/2" x 33.3–35.8" x 22.4" (598 x 845–910 x 570 mm); depth excludes door panel |
| Minimum Niche | 23 5/8" W x 33 3/4" H x 22 7/16" D (600 x 845 x 570 mm) |
| Usable Wash Cabinet Width | 22 7/8" (580 mm) |
| Noise Level | 45 dB(A) |
| Shipping Weight / Carton | 112 lbs (51 kg); 26.4" W x 38.2" H x 26.4" D |
| Connectivity | Wi-Fi (WiFiConn@ct), Miele MOVE network-enabled |
| Approvals | UL; EN 1717; DIN EN 17735 |
Optional Accessories
Miele fully integrated door panels made for the PFD 104 SCVi XXL, Clean Touch Steel finish, sold separately.
| GFVi 701/77 | No handle, 24" W x 30" H, for a 4" toe kick |
|---|---|
| GFVi 710/77 | PureLine handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 711/77 | ContourLine handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 709/77 | Pocket handle, 24" W x 30" H, for a 4" toe kick |
| GFVi 701/72 | No handle, 24" W x 28" H, for a 6" toe kick |
| GFVi 711/72 | ContourLine handle, 24" W x 28" H, for a 6" toe kick |
Frequently Asked Questions
What electrical supply does the PFD 104 SCVi XXL 120/208-240V need?
It needs a 4-wire 120/208-240V, 60 Hz, 30 A circuit with two hot legs, a neutral, and a ground, and connects with a NEMA 14-30 plug. Total connected load is 3.7 to 4 kW.
How fast is the PFD 104 SCVi XXL 120/208-240V?
QuickIntenseWash takes 24 minutes, China & Crystal 22 minutes, Universal 35 minutes, and SaniWash 54 minutes on this version.
How many place settings does the PFD 104 SCVi XXL hold?
It holds 16 place settings per cycle, or 16 white wine glasses, in MaxiComfort baskets with the 3D MultiFlex tray on top.
Does the PFD 104 SCVi XXL come with a door panel?
No. It ships without a front. Use a Miele GFVi panel or a custom panel 23.4" wide, 27.2" to 31.9" long, 0.63" to 0.79" thick, and weighing 11 to 26.5 lbs.
What size niche does the PFD 104 SCVi XXL need?
It needs a niche at least 23 5/8" wide, 33 3/4" high, and 22 7/16" deep. The unit is 23 1/2" wide and 33.3" to 35.8" high.
How many cycles per day is the PFD 104 SCVi XXL designed for?
Miele rates it for 1 to 5 wash cycles per day and tests it for 12,500 program cycles.
| Brand | Miele USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | PFD 104 SCVi XXL 120/208-240V |
| Brand | Miele USA |
| Weight | 112.00 lbs |
| Dimensions (HxWxD) | 33.30 x 23.50 x 22.40 inches |
| Height | 33.30 |
| Width | 23.50 |
| Depth | 22.40 |
| Type | Fully integrated XXL fresh water dishwasher |
| Construction | stainless steel wash cabinet, front panel not included |
| Temperature | high temp, 180°F (82°C) max final rinse, built-in heater |
| Voltage | 120/208-240V/60Hz/1-ph, 30 amps, NEMA 14-30P |
| Capacity | 16 place settings |
| Programs | 8 (shortest 24 min) |
| Recommended Use | 1-5 cycles per day |
| Water Connection | 1, cold or hot up to 140°F |
| Water Softener | integrated |
| Noise Level | 45 dB(A) |
|
