Miele PFD 401 U MasterLine 24 Inch Undercounter Commercial Dishwasher 240V 6 Minute Cycle Fresh Water Stainless Steel

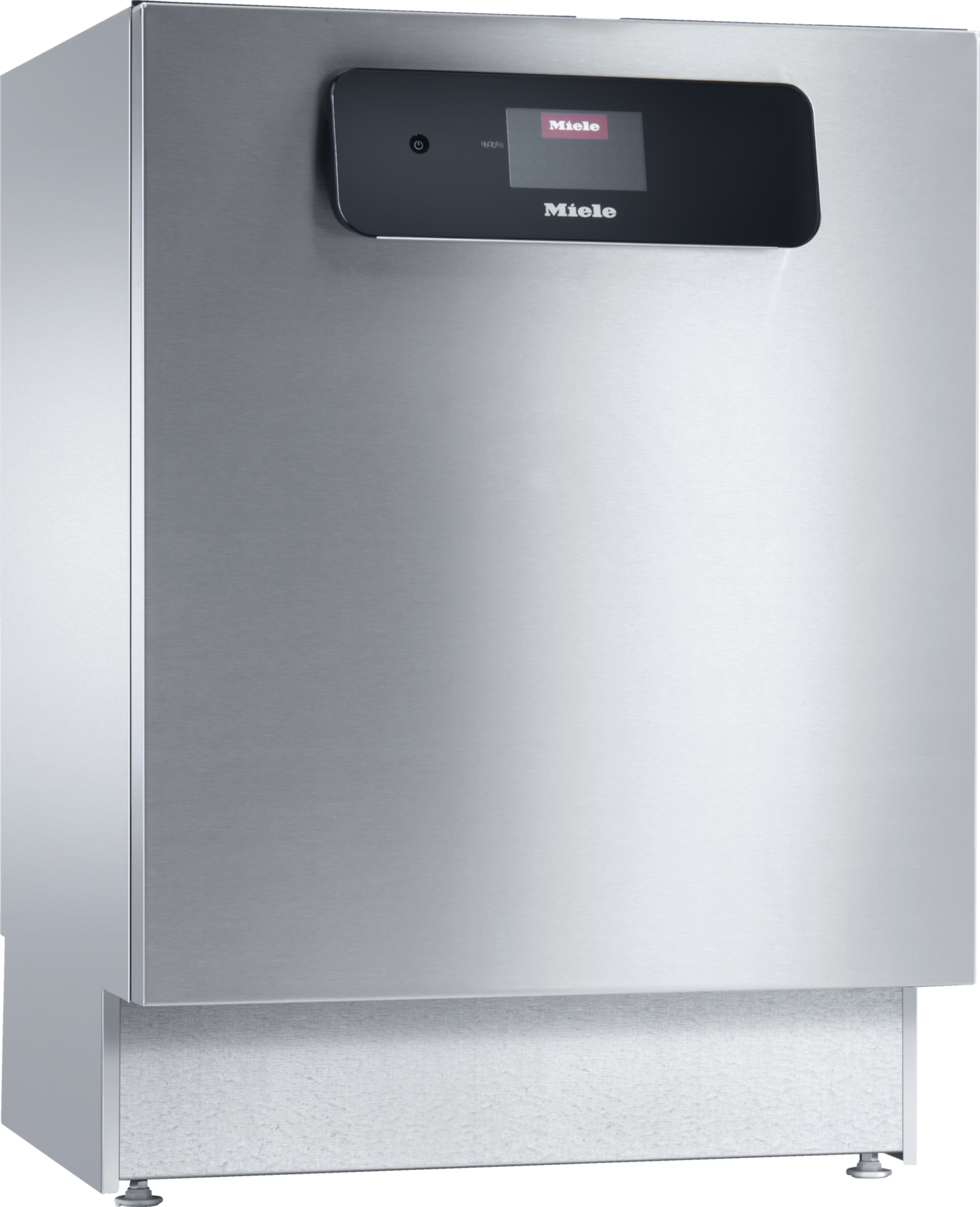

Miele PFD 401 U — 24" MasterLine Speedplus Undercounter Dishwasher, 240V
The Miele PFD 401 U is the Speedplus model of Miele's MasterLine commercial range: a 24-inch built-under fresh water dishwasher whose fastest program finishes in 6 minutes on a hot water supply. It cleans up to 380 plates or 20 baskets per hour across two full wash levels, uses about 2.1 gallons of fresh water per cycle, and is rated for 5 to 40 cycles a day with a service life of 28,000 wash cycles. Separate hot and cold water connections, an integrated softener, filter monitoring, and Miele's M Touch Flex controls make it a fit for bars, cafés, small restaurants, and canteens. This version runs on 240V / 60 Hz single phase, 30 A with a NEMA L6-30 twist-lock plug.
Key Features of the PFD 401 U
The PFD 401 U is built for commercial volume: short cycles, a wash cabinet that takes standard commercial baskets on two levels, and components rated for years of daily service.
6-Minute Speedplus Cycles
With a hot water supply the Rapid program runs in 6 minutes and Normal in 8; a 5.4 kW heater keeps cold-fill times to 10 and 18 minutes.
Two-Level Cleaning, 3 Spray Arms
Three spray arms clean two full wash levels at once, and the cabinet accepts wire or plastic commercial baskets on both levels for up to 380 plates or 20 baskets per hour.
Fresh Water System
Each cycle uses about 2.1 gallons of fresh water instead of a recirculated tank, with a highly effective filter system and filter monitoring for consistent results.
SaniWash Hygiene Program
SaniWash holds the main wash at 158°F (70°C) for 10 minutes and the final rinse at 140°F (60°C) for 3 minutes; the final rinse temperature is adjustable up to 158°F.
M Touch Flex Controls & Wi-Fi
The touch display offers language-neutral operation, a countdown and program sequence indicator, adjustable holding times, a 24-hour delay start, and Wi-Fi connectivity.
Built for 28,000 Cycles
Rated for 5 to 40 cycles a day over a 28,000-cycle service life, with an integrated softener for water up to 62.6 gpg and Miele's Waterproof system against leaks.
PFD 401 U Program Overview & Cycle Times
Miele's published cycle times for the PFD 401 U, shown for a hot water connection and a cold water connection.
| Rapid | 6 min hot | 10 min cold |
|---|---|
| Normal | 8 min hot | 18 min cold |
| Normal Plus | 11 min hot | 23 min cold |
| Intensive | 21 min hot | 30 min cold |
| Economy | 23 min hot | 32 min cold |
| SaniWash | 26 min hot | 33 min cold |
| China & Crystal | 12 min hot | 17 min cold |
| Glasses | 14 min hot | 14 min cold |
| Plastics | 17 min hot | 26 min cold |
| Utensils | 20 min hot | 25 min cold |
Electrical & water: This version requires a 240V / 60 Hz single-phase, 30 A circuit (two hot legs and a ground) with a NEMA L6-30 twist-lock receptacle. Connect both a hot and a cold water line to get the hot-fill cycle times. A 208V version (PFD 401 U 208V) is also available. The PFD 401 U has no drying function; for AutoOpen drying and a 185°F final rinse, see the PFD 404 U.
Ideal Applications
Miele positions the PFD 401 U for food service operations that need fast turnaround in a 24-inch footprint.

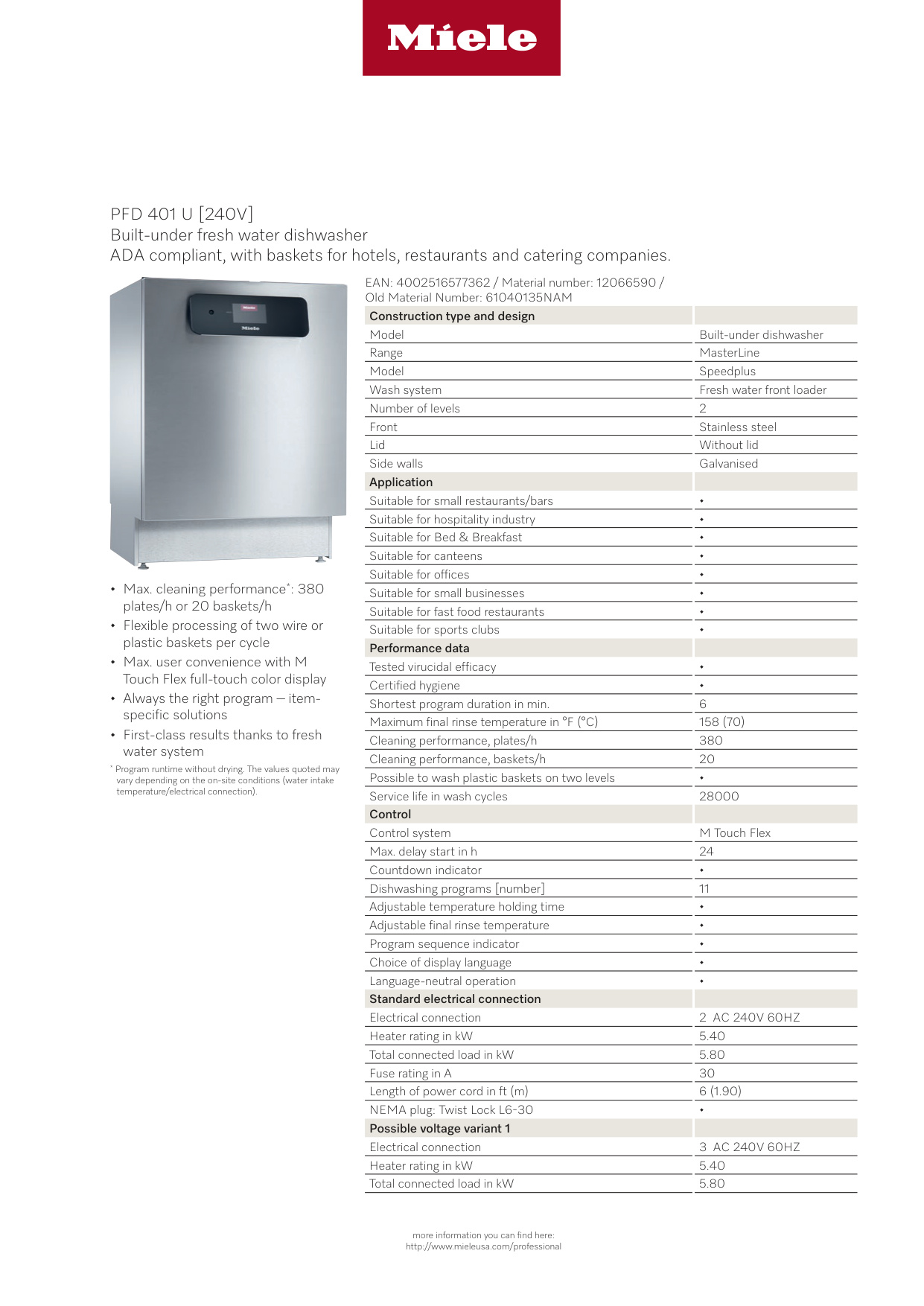

PFD 401 U 240V Specifications
| Model | Miele PFD 401 U [240V] (material no. 12066590) |
|---|---|
| Range | MasterLine, Speedplus |
| Type | Built-under fresh water front loader, 2 wash levels, 3 spray arms |
| Finish | Stainless steel front and wash cabinet |
| Capacity | Up to 380 plates/hr or 20 baskets/hr |
| Recommended Use | 5–40 cycles per day; service life 28,000 wash cycles |
| Programs | 11; shortest 6 min (Rapid, hot fill) |
| Max Final Rinse Temperature | 158°F (70°C), adjustable; adjustable holding time |
| Controls | M Touch Flex, language-neutral, 24-hour delay start |
| Electrical | 240V / 60 Hz / 1 ph, 30 A; heater 5.4 kW, total connected load 5.8 kW |
| Plug & Cord | NEMA L6-30 twist-lock, 6 ft (1.9 m) cord |
| Water Connections | 1 hot, 1 cold; flow pressure 5.8–145 psi (0.4–10 bar) |
| Water Consumption | 2.1 gal (8 L) per cycle |
| Hoses & Drain | 67" (170 cm) inlet hose; 59 1/8" (150 cm) drain hose, DN 22; drain pump head up to 39 3/8" (100 cm) |
| Water Softener | Integrated, up to 62.6 gpg (10.7 mmol/l); in-door salt container |
| Detergent | Combi dispenser for powder and liquid; optional external liquid dispenser module |
| Drying | None |
| Dimensions (W x H x D) | 23 9/16" x 32 5/16" x 22 7/8" (598 x 820 x 580 mm); height adjustable 2 3/8" (60 mm) |
| Required Niche Width | 23 5/8" (600 mm) |
| Usable Wash Cabinet | 22 1/16" W x 21 1/8" H; upper basket depth 18 11/16", lower 20 3/8" |
| In-Feed Height | 8 9/16" (216 mm) above floor |
| Weight | 144 lbs net; 166 lbs shipping |
| Noise Level | 47 dB(A) |
| Heat Dissipation | 1.44 MJ/h |
| Connectivity | Wi-Fi |
| Approvals | ETL; ADA compliant; DIN 10512; DIN EN 17735; IPX1 splash protection |

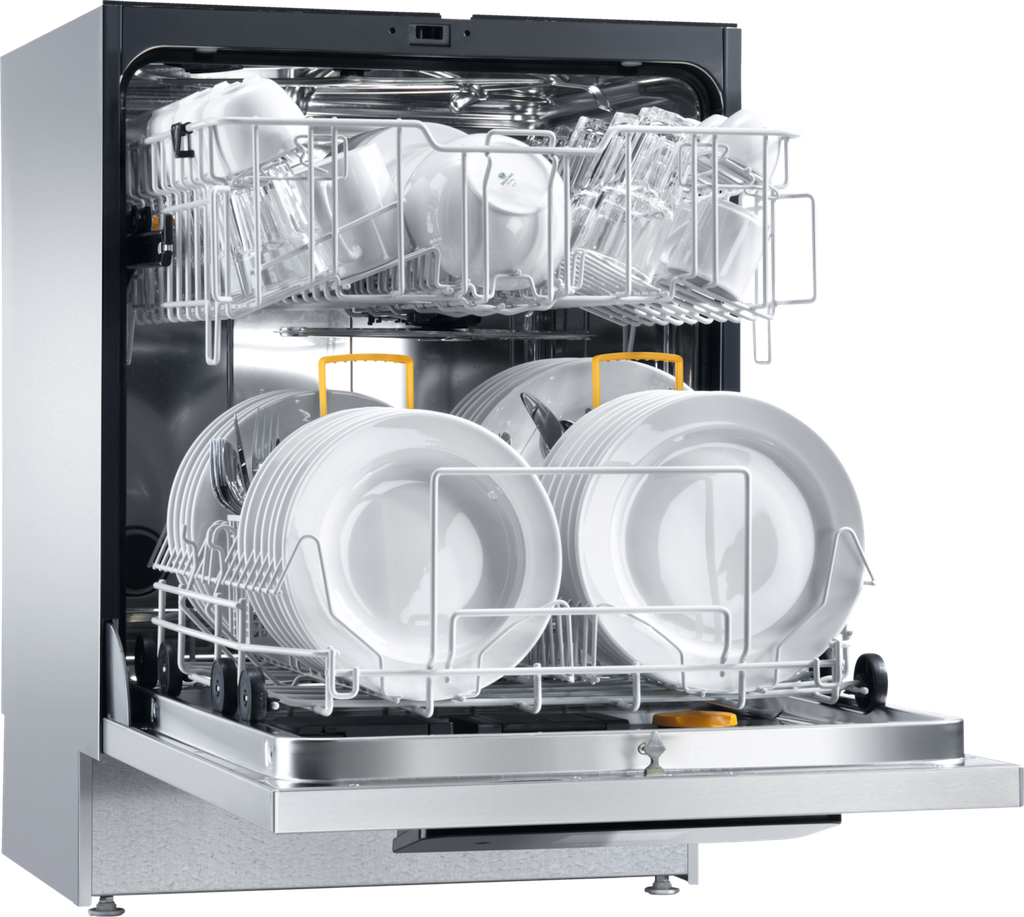

Included Baskets & Optional Accessories
The PFD 401 U ships with a full basket set; additional MasterLine baskets are sold separately.
| Included: APFD 215 upper basket | With APFD 415 insert and 2 cup racks; holds 18 bowls, 32 saucers or 18 dessert plates and 20 cups; height adjustable in 2 positions by 2" |
|---|---|
| Included: APFD 220 lower basket | With 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts; holds 38 plates, or 32 plates and cutlery; loading height up to 13" |
| Optional: APFD 214 | Upper basket without inserts |
| Optional: O 892 | Upper basket with E 812 insert and 2 support rails for glassware |
| Optional: APFD 210 | Bottle basket |
Frequently Asked Questions
How fast is the Miele PFD 401 U?
The Rapid program takes 6 minutes on a hot water supply and 10 minutes on cold; Normal takes 8 minutes hot or 18 minutes cold. Maximum throughput is 380 plates or 20 baskets per hour.
What electrical supply does the PFD 401 U 240V need?
It needs a 240V / 60 Hz single-phase, 30 A circuit with a NEMA L6-30 twist-lock receptacle. Total connected load is 5.8 kW, and the power cord is 6 ft long.
Does the PFD 401 U need hot water?
It has one hot and one cold water connection. It runs on either, but the shortest cycle times (6-minute Rapid) are achieved with a hot water supply.
How many cycles per day can the PFD 401 U run?
Miele rates the PFD 401 U for 5 to 40 cycles per day, with a service life of 28,000 wash cycles.
What baskets come with the PFD 401 U?
It includes an APFD 215 upper basket with an APFD 415 insert and 2 cup racks, and an APFD 220 lower basket with 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts.
Is the Miele PFD 401 U ETL listed and ADA compliant?
Yes. Miele lists the PFD 401 U as ETL certified and ADA compliant, with an in-feed height of 8 9/16" above the floor.
| Brand | Miele USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | PFD 401 U 240V |
| Brand | Miele USA |
| Weight | 166.00 lbs |
| Dimensions (HxWxD) | 32.30 x 23.60 x 22.90 inches |
| Height | 32.30 |
| Width | 23.60 |
| Depth | 22.90 |
| Type | Undercounter fresh water dishwasher |
| Construction | stainless steel front and wash cabinet |
| Temperature | 158°F (70°C) max final rinse, built-in heater |
| Voltage | 240V/60Hz/1-ph, 30 amps, NEMA L6-30P |
| Rack Capacity | up to 20 baskets/hour (380 plates/hour) |
| Programs | 11 (shortest 6 min) |
| Recommended Use | 5-40 cycles per day |
| Water Connection | 1 hot, 1 cold |
| Water Softener | integrated |
| Noise Level | 47 dB(A) |
| ADA Compliant | yes |
|
