Miele PFD 404 U MasterLine Hygiene 24 Inch Undercounter Commercial Dishwasher 208V 185F Final Rinse Fresh Water Stainless Steel

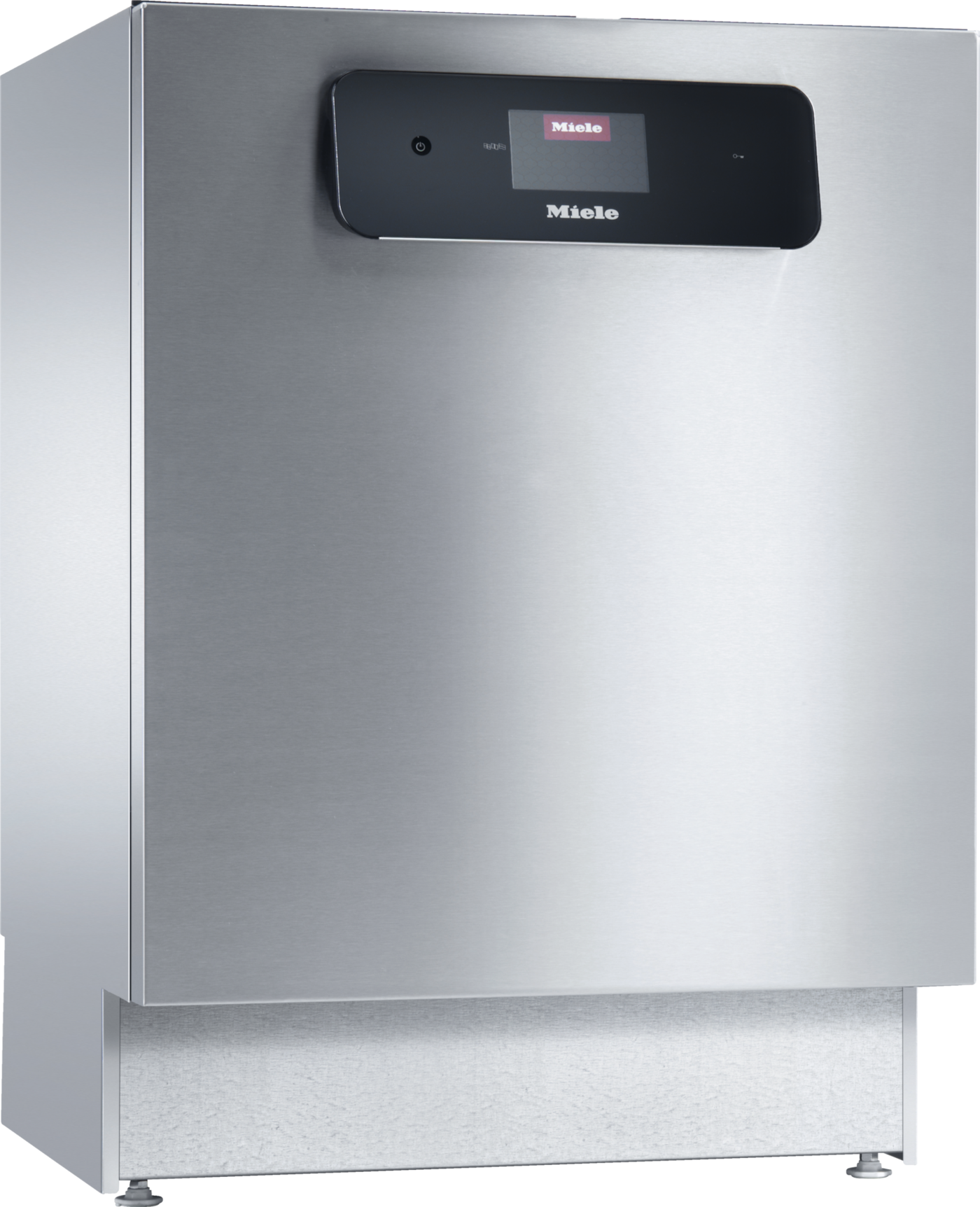

Miele PFD 404 U — 24" MasterLine Hygiene Undercounter Dishwasher, 208V
The Miele PFD 404 U is the Hygiene model of Miele's MasterLine range, built for kitchens where sanitation is documented and audited. Its hygiene programs finish with a 185°F (85°C) final rinse held for 4 minutes, and the program list adds SaniWash Plus to the standard SaniWash cycle. Like the PFD 401 U it runs a 6-minute Rapid cycle on hot fill and cleans up to 380 plates or 20 baskets per hour on two wash levels, but it adds AutoOpen drying, AutoClose, a code-protectable door lock, and an aerosol steam condenser. Rated for 5 to 40 cycles a day over a 28,000-cycle service life, this version runs on 208V / 60 Hz single phase, 30 A with a NEMA L6-30 twist-lock plug.
Key Features of the PFD 404 U
The PFD 404 U shares the PFD 401 U's wash cabinet, baskets, and 5.4 kW heater, and adds the high-temperature rinse, drying, and door control that healthcare and care settings ask for.
185°F Hygiene Final Rinse
Hygiene programs finish with a final rinse at 185°F (85°C) held for 4 minutes; SaniWash runs 24 minutes and SaniWash Plus 33 minutes on hot fill.
AutoOpen Drying & Steam Condenser
AutoOpen assisted drying opens the door at the end of the cycle, while the aerosol steam condenser limits the steam released into the room when it does.
AutoClose & Code-Protected Lock
AutoClose pulls the door shut once it is pushed near closed, and the door lock can be code-protected so residents, patients, or children cannot open it mid-cycle.
6-Minute Cycles, 380 Plates/hr
Three spray arms clean two full wash levels; the Rapid program runs in 6 minutes on hot fill, for up to 380 plates or 20 baskets per hour.
Fresh Water & Filter Monitoring
Each cycle uses about 2.1 gallons of fresh water instead of a recirculated tank, with a highly effective filter system, filter monitoring, and an integrated softener for water up to 62.6 gpg.
M Touch Flex, Wi-Fi & 45 dB(A)
Language-neutral touch controls with adjustable holding times and a 24-hour delay start, Wi-Fi connectivity, and quieter 45 dB(A) operation than the PFD 401 U.
PFD 404 U Program Overview & Cycle Times
Miele's published cycle times for the PFD 404 U, shown for a hot water connection and a cold water connection.
| Rapid | 6 min hot | 10 min cold |
|---|---|
| Normal | 8 min hot | 18 min cold |
| Normal Plus | 24 min hot | 30 min cold |
| Intensive | 26 min hot | 36 min cold |
| Economy | 23 min hot | 32 min cold |
| SaniWash | 24 min hot | 35 min cold |
| SaniWash Plus | 33 min hot | 43 min cold |
| China & Crystal | 12 min hot | 17 min cold |
| Glasses | 14 min hot | 14 min cold |
| Plastics | 17 min hot | 26 min cold |
| Utensils | 20 min hot | 25 min cold |
Electrical & water: This version requires a 208V / 60 Hz single-phase, 30 A circuit (two hot legs and a ground) with a NEMA L6-30 twist-lock receptacle; Miele supplies the 6 ft cord and plug separately rather than connected to the machine. Connect both a hot and a cold water line to get the hot-fill cycle times; required flow pressure is 14.5 to 145 psi. A 240V version (PFD 404 U 240V) is also available.
Ideal Applications
Miele positions the PFD 404 U for facilities with heightened hygiene requirements.
PFD 404 U 208V Specifications
| Model | Miele PFD 404 U [208V] (material no. 12066570) |
|---|---|
| Range | MasterLine, Hygiene |
| Type | Built-under fresh water front loader, 2 wash levels, 3 spray arms |
| Finish | Stainless steel front and wash cabinet |
| Capacity | Up to 380 plates/hr or 20 baskets/hr |
| Recommended Use | 5–40 cycles per day; service life 28,000 wash cycles |
| Programs | 12; shortest 6 min (Rapid, hot fill) |
| Max Final Rinse Temperature | 185°F (85°C); 4-minute holding time in hygiene programs |
| Controls | M Touch Flex, language-neutral, 24-hour delay start |
| Door | AutoClose; door lock, code-protected if required |
| Electrical | 208V / 60 Hz / 1 ph, 30 A; heater 5.4 kW, total connected load 5.8 kW |
| Plug & Cord | NEMA L6-30 twist-lock, 6 ft (1.9 m) cord |
| Water Connections | 1 hot, 1 cold; flow pressure 14.5–145 psi (1–10 bar) |
| Water Consumption | 2.1 gal (8 L) per cycle |
| Hoses & Drain | 67" (170 cm) inlet hose; 59 1/8" (150 cm) drain hose, DN 22; drain pump head up to 39 3/8" (100 cm) |
| Water Softener | Integrated, up to 62.6 gpg (10.7 mmol/l); in-door salt container |
| Drying | AutoOpen assisted drying; aerosol steam condenser |
| Dimensions (W x H x D) | 23 9/16" x 32 5/16" x 23 7/16" (598 x 820 x 595 mm) |
| Required Niche Width | 23 5/8" (600 mm) |
| Usable Wash Cabinet | 22 1/16" W x 21 1/8" H; upper basket depth 18 11/16", lower 20 3/8" |
| In-Feed Height | 8 9/16" (216 mm) above floor |
| Weight | 166 lbs net; 188 lbs shipping |
| Noise Level | 45 dB(A) |
| Connectivity | Wi-Fi |
| Approvals | ETL; ADA compliant; DIN 10512; DIN EN 17735; IPX1 splash protection |

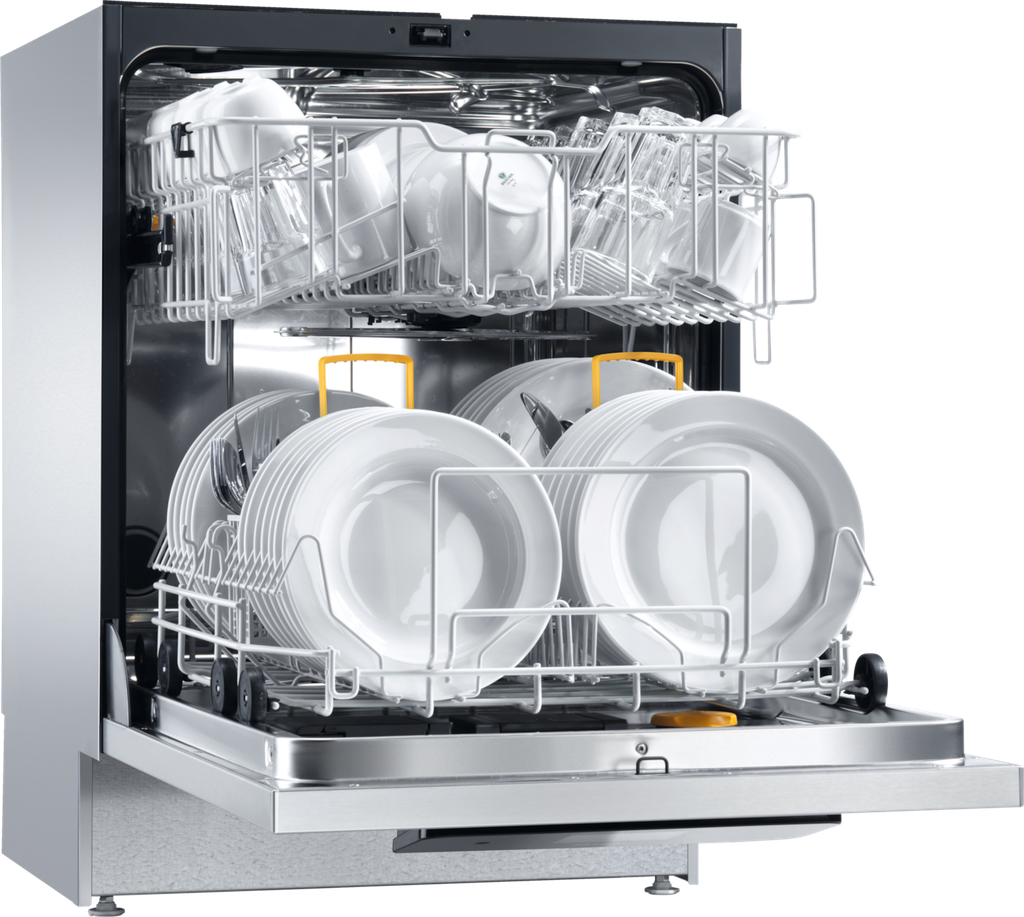

Included Baskets & Optional Accessories
The PFD 404 U ships with a full basket set; additional MasterLine baskets are sold separately.
| Included: APFD 215 upper basket | With APFD 415 insert and 2 cup racks; holds 18 bowls, 32 saucers or 18 dessert plates and 20 cups; height adjustable in 2 positions by 2" |
|---|---|
| Included: APFD 220 lower basket | With 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts; holds 38 plates, or 32 plates and cutlery; loading height up to 13" |
| Optional: APFD 214 | Upper basket without inserts |
| Optional: O 892 | Upper basket with E 812 insert and 2 support rails for glassware |
| Optional: APFD 210 | Bottle basket |
Frequently Asked Questions
What final rinse temperature does the Miele PFD 404 U reach?
Its hygiene programs finish with a final rinse at 185°F (85°C) held for 4 minutes. SaniWash takes 24 minutes and SaniWash Plus 33 minutes on hot fill.
How is the PFD 404 U different from the PFD 401 U?
The PFD 404 U adds a 185°F final rinse, SaniWash Plus, AutoOpen drying, AutoClose, a code-protectable door lock, and an aerosol steam condenser, and runs at 45 dB(A) versus 47 dB(A).
What electrical supply does the PFD 404 U 208V need?
It needs a 208V / 60 Hz single-phase, 30 A circuit with a NEMA L6-30 twist-lock receptacle. Total connected load is 5.8 kW, and the 6 ft cord and plug are supplied separately.
How fast is the PFD 404 U?
The Rapid program takes 6 minutes on hot fill and 10 minutes on cold, for up to 380 plates or 20 baskets per hour.
What baskets come with the PFD 404 U?
It includes an APFD 215 upper basket with an APFD 415 insert and 2 cup racks, and an APFD 220 lower basket with 2 x E 816 plate inserts and 2 x APFD 420 cutlery inserts.
Is the Miele PFD 404 U ETL listed and ADA compliant?
Yes. Miele lists the PFD 404 U as ETL certified and ADA compliant, with an in-feed height of 8 9/16" above the floor.
