Pratica FIT ST Black Double Stacked Speed Oven | 2 Cavities, Dual Magnetron, Wi-Fi + RJ45

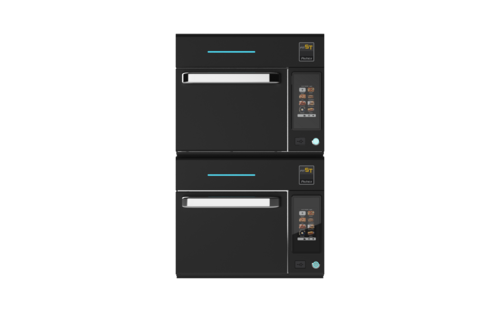

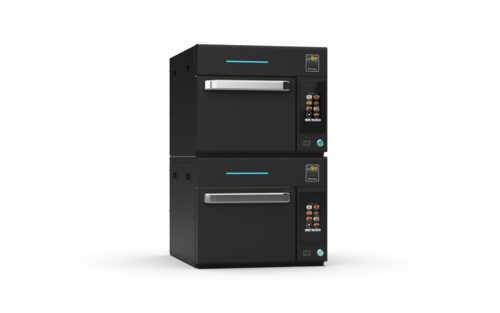

Pratica FIT ST Black Double Stacked — Two Independent Speed Oven Cavities
The Pratica FIT ST Black Double Stacked (990188-DBL) puts two complete FIT ST speed ovens in a single stacked footprint, delivering double the cooking capacity without doubling the counter space. Each cavity operates independently with its own dual 1,100W magnetrons, impingement system, Wi-Fi + RJ45 connectivity, touchscreen controls, and recipe storage — so two operators can run parallel menus simultaneously, or one operator can maximize throughput on high-demand items.
Key Features of the FIT ST Black Double Stacked
The double stacked configuration is the most throughput-efficient deployment of the FIT ST platform — two independently operating ovens sharing one compact footprint.
Two Fully Independent Cavities
Each cavity has its own dual magnetrons, impingement heater, controls, and power connection — they operate completely independently. Run different recipes simultaneously or dedicate each to a different daypart menu.
Dual 1,100W Magnetrons per Cavity
Each of the two cavities contains its own pair of 1,100W magnetrons — four magnetrons total — delivering the same powerful, even microwave distribution as the single FIT ST, for every order in both cavities.
Wi-Fi + RJ45 per Cavity
Each cavity has independent Wi-Fi and wired ethernet (RJ45) connectivity to the IOK platform — manage each oven's recipes and settings separately or push unified menus to both from a central system.
Double Capacity, Same Footprint
The stacked configuration occupies the same 20.4"W × 27.4"D counter footprint as a single FIT ST, at 33.4"H total — twice the cooking cavities for operations where throughput demand has outgrown a single oven.
Certified Ventless — Both Cavities
Both units in the stack are certified ventless. Each has its own removable catalytic converter — no hood or ductwork required for either cavity. Two outlets required — one per oven.
Unlimited Recipes per Cavity
Each cavity independently stores unlimited recipes with up to 8-step programs across 16 groups. Program each oven for a completely different menu or keep them synchronized for parallel high-volume production.
Power Requirement: The double stacked configuration consists of two independent units — each requires its own 208/240V, 30A NEMA 6-30P circuit (two separate circuits total). Surface must support approximately 317.4 lbs (2 × 158.7 lbs). Each outlet must be within 5.9 ft of the respective unit.
Ideal Applications
The FIT ST Double Stacked is purpose-built for high-volume operations where a single oven is a throughput bottleneck and floor space is limited.
FIT ST Black Double Stacked Specifications
| Model | FIT ST BLACK DOUBLE STACKED 990188-DBL |
|---|---|
| Configuration | 2 × FIT ST Speed Ovens, Stacked |
| Cavities | 2 — Fully Independent |
| Magnetrons per Cavity | 2 × 1,100W (2,200W per cavity / 4,400W total) |
| Chamber per Cavity | 0.45 cu ft (13L) / 5.2" H × 12.4" W × 12.1" D |
| Exterior Dimensions (Stacked) | 33.4" H × 20.4" W × 27.4" D |
| Weight (Total) | ~317.4 lbs (2 × 158.7 lbs) |
| Temperature Range | 86°F to 536°F per cavity |
| Recipe Storage | Unlimited per cavity / 8 steps / 16 groups |
| Connectivity | Wi-Fi + RJ45 + USB per cavity |
| Voltage | 208/240V, Single Phase, 60Hz per oven |
| Power per Oven | 6.2 kW (208V) / 7.0 kW (240V) |
| Circuit Breaker | 30A per oven (2 circuits required) |
| Plug | NEMA 6-30P per oven |
| Ventilation | Certified Ventless — Removable Catalytic Converter per cavity |
| Finish | Black |
| Included Accessories | 2 × (Aluminum Paddle, Solid Basket, Perforated Basket, USB Flash Drive, Cleaning Kit) |
| Certifications | cETLus, ETL-Sanitation, CE |
Frequently Asked Questions
Do both cavities operate independently?
Yes. Each cavity in the FIT ST Double Stacked is a complete, independent speed oven with its own dual magnetrons, impingement system, touchscreen controls, connectivity, and power supply. They can run completely different recipes simultaneously.
How many power outlets does the double stacked configuration require?
The double stacked configuration requires two separate 208/240V, 30A NEMA 6-30P circuits — one per oven. Each outlet must be within 5.9 ft of its respective unit. Two separate circuit breakers are required.
Does the double stacked require a ventilation hood?
No. Both units are certified ventless. Each cavity has its own removable catalytic converter to handle cooking odors and grease without any external ventilation system. However, two separate power circuits are required.
Can the two cavities run different menus?
Yes. Each cavity independently stores unlimited recipes and can be programmed with completely different menus. They can also be synchronized to the same menu via the IOK platform. Two operators can work simultaneously — one per cavity.
What are the space requirements for the double stacked configuration?
The stacked configuration measures 33.4"H × 20.4"W × 27.4"D, with a total weight of approximately 317.4 lbs. The same 20.4"W × 27.4"D counter footprint as a single FIT ST, just taller at 33.4". The counter surface must support the full combined weight.
Is this also available in stainless steel?
Yes. The stainless steel double stacked version is the FIT ST SILVER DOUBLE STACKED 990163-DBL. This listing is for the black finish version (990188-DBL).
| Brand | Pratica Products Inc. |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | FIT ST BLACK DOUBLE STACKED 990188-DBL |
| Brand | Pratica Products Inc. |
| Weight | 414.40 lbs |
| Dimensions (HxWxD) | 16.70 x 20.40 x 27.40 inches |
| Height | 16.70 |
| Width | 20.40 |
| Depth | 27.40 |
| Capacity | .40 cubic feet capacity |
| Control Type | digital controls |
| Type | microwave, impinged & convection |
|
