Pratica FIT ST Silver — High-Speed Combination Oven for Commercial Kitchens

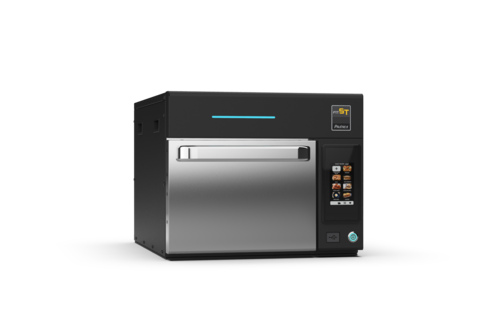

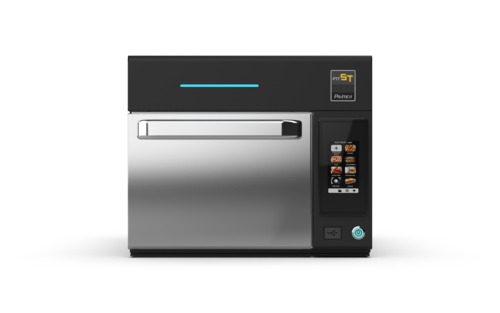

The Pratica FIT ST Silver (990163) is a professional-grade ventless speed oven that combines dual 1,100W magnetrons with high-velocity impingement air to cook, brown, and crisp foods up to 15× faster than conventional ovens. Built in stainless steel for a polished countertop profile, the FIT ST Silver connects to Pratica's IOK cloud platform via Wi-Fi or RJ45, stores unlimited recipes with up to 8-step programs, and requires no ventilation hood — a true drop-in solution for any commercial kitchen or foodservice operation.
Key Features of the FIT ST Silver 990163
The FIT ST platform combines three cooking technologies in one compact footprint — giving commercial kitchens speed, flexibility, and output previously only possible with multiple pieces of equipment.
Dual 1,100W Magnetrons
Two independently powered 1,100W magnetrons deliver even, consistent microwave energy across the entire cavity — eliminating hot spots and ensuring uniform results from the first cook to the hundredth.
Impingement + Microwave Cooking
High-velocity impingement air jets strip the boundary layer from food surfaces for rapid browning and crisping, while microwave energy heats the interior simultaneously — delivering finished texture and doneness in a fraction of conventional oven time.
Wi-Fi + RJ45 + IOK Platform
Connect wirelessly or via wired ethernet to Pratica's IOK cloud platform for remote recipe management, firmware updates, and multi-unit synchronization. Push menu changes across multiple locations from a central management system.
Certified Ventless
A removable catalytic converter handles grease and cooking odors internally — no exhaust hood, no ductwork, no costly ventilation installation. The FIT ST Silver can be placed anywhere a 208/240V outlet is available, on any counter.
Unlimited Recipes — 8 Steps, 16 Groups
Store an unlimited number of recipes organized into 16 groups with up to 8 individual cooking steps per recipe. Test Mode and Favorites streamline staff workflow. Recipes can be exported, imported, or managed remotely via USB or the IOK platform.
Stackable — Up to 2 Units
The FIT ST Silver is designed to stack with a second FIT ST unit, doubling cooking capacity without increasing counter footprint. For high-volume applications, the double-stacked configuration (990163-DBL) is available as a factory kit.
Installation Note: The FIT ST Silver requires a dedicated 208/240V, 30A NEMA 6-30P circuit. The outlet must be within 5.9 ft of the unit. The counter must support approximately 158.7 lbs. Allow a minimum 0.8" clearance behind the unit for ventilation — the built-in rear bumper provides this spacing automatically.
Ideal Applications
The FIT ST Silver fits high-demand commercial kitchen environments where speed, consistency, and ventless flexibility are required.
FIT ST Silver 990163 Specifications
| Model | FIT ST SILVER 990163 |
|---|---|
| Finish | Stainless Steel (AISI 430) |
| Configuration | Single Unit, Countertop |
| Magnetrons | 2 × 1,100W |
| Cooking Chamber | 0.45 cu ft (13L) / 5.2" H × 12.4" W × 12.1" D |
| Exterior Dimensions | 16.7" H × 20.4" W × 27.4" D |
| Weight | 158.7 lbs |
| Temperature Range | 86°F to 536°F (30°C to 280°C) |
| Recipe Storage | Unlimited / 8 steps per recipe / 16 groups |
| Connectivity | Wi-Fi + RJ45 + USB |
| Voltage | 208/240V, Single Phase, 60Hz |
| Power | 6.2 kW (208V) / 7.0 kW (240V) |
| Circuit Breaker | 30A |
| Plug | NEMA 6-30P |
| Ventilation | Certified Ventless — Removable Catalytic Converter |
| Stackable | Yes — up to 2 units |
| Included Accessories | Aluminum Paddle, Solid Basket, Perforated Basket, USB Flash Drive, Cleaning Kit |
| Optional Accessories | Wave Tray, Panini Press |
| Certifications | cETLus, ETL-Sanitation, CE |
Frequently Asked Questions
Does the FIT ST Silver require a ventilation hood?
No. The FIT ST Silver 990163 is certified ventless. It uses a removable catalytic converter to handle cooking odors and grease internally — no hood or ductwork is required. You only need a single 208/240V, 30A NEMA 6-30P outlet within 5.9 ft of the unit.
What is the difference between the FIT ST Silver and the FIT ST Black?
The FIT ST Silver (990163) and FIT ST Black (990188) are mechanically identical — same dual magnetrons, impingement system, connectivity, recipe capacity, and performance. The only difference is the exterior finish: stainless steel on the Silver and black on the Black. Choose based on your kitchen aesthetic preference.
Can I stack two FIT ST Silver units?
Yes. The FIT ST Silver is stackable up to two units. If you need double the cooking capacity in the same footprint, the FIT ST Silver Double Stacked (990163-DBL) is available as a factory-configured two-unit stack. Each unit in the stack requires its own independent 208/240V, 30A circuit.
How does the IOK platform work?
The IOK platform is Pratica's cloud-based recipe and management system. Via Wi-Fi or RJ45, you can remotely push recipe updates, export/import recipe groups, manage firmware, and monitor multiple ovens from a central system — useful for multi-location chains and ghost kitchen operators.
What foods can the FIT ST Silver cook?
The FIT ST Silver is designed for efficiently finishing refrigerated, fresh, or frozen foods — including breakfast sandwiches, chicken wings, muffins, lasagnas, mac & cheese, sub sandwiches, and other partially prepared dishes. The combination of impingement and microwave cooking delivers excellent flavor, appearance, and crispiness.
What electrical requirements does the FIT ST Silver need?
The FIT ST Silver requires a dedicated 208/240V, single phase, 60Hz circuit with a 30A breaker and NEMA 6-30P outlet. Power draw is 6.2 kW at 208V or 7.0 kW at 240V. The outlet must be within 5.9 ft of the unit.
| Brand | Pratica Products Inc. |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | FIT ST SILVER 990163 |
| Brand | Pratica Products Inc. |
| Weight | 207.20 lbs |
| Dimensions (HxWxD) | 16.70 x 20.40 x 27.40 inches |
| Height | 16.70 |
| Width | 20.40 |
| Depth | 27.40 |
| Control Type | digital controls |
| Capacity | .40 cubic feet capacity |
| Type | microwave, impinged & convection |
|
