Pratica FIT ST Silver Double Stacked Speed Oven | 2 Cavities, Dual Magnetron, Wi-Fi + RJ45

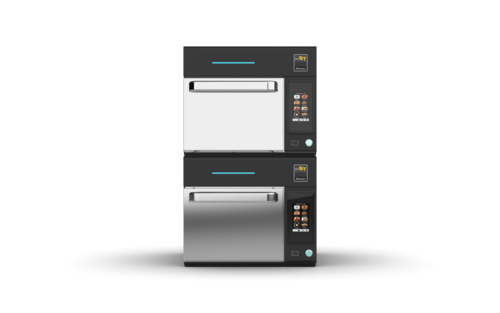

Pratica FIT ST Silver Double Stacked — Two Independent Speed Oven Cavities
The Pratica FIT ST Silver Double Stacked (990163-DBL) puts two complete FIT ST stainless steel speed ovens in a single stacked footprint, delivering double the cooking capacity without doubling the counter space. Each cavity operates independently with its own dual 1,100W magnetrons, impingement system, Wi-Fi + RJ45 connectivity, touchscreen controls, and recipe storage — ideal for high-volume operations that need parallel cooking capability in a polished, professional stainless steel finish.
Key Features of the FIT ST Silver Double Stacked
The double stacked configuration is the most throughput-efficient deployment of the FIT ST platform — two independently operating stainless steel ovens sharing one compact countertop footprint.
Two Fully Independent Cavities
Each cavity has its own dual magnetrons, impingement heater, controls, and power connection. Run completely different recipes simultaneously or dedicate each to a different daypart menu — two operators can work in parallel.
Dual 1,100W Magnetrons per Cavity
Each of the two cavities contains its own pair of 1,100W magnetrons — four magnetrons total — delivering the same powerful, even microwave distribution as the single FIT ST Silver for every order across both cavities.
Wi-Fi + RJ45 per Cavity
Each cavity has independent Wi-Fi and wired ethernet (RJ45) connectivity to the IOK platform — manage each oven's recipes and settings separately or push unified menus to both from a central system.
Double Capacity, Same Footprint
The stacked configuration occupies the same 20.4"W × 27.4"D counter footprint as a single FIT ST Silver, at 33.4"H total — twice the cooking cavities for operations where throughput demand has outgrown a single oven.
Certified Ventless — Both Cavities
Both units in the stack are certified ventless, each with its own removable catalytic converter. No hood or ductwork required for either cavity. Two separate 30A outlets required — one per oven.
Unlimited Recipes per Cavity
Each cavity independently stores unlimited recipes with up to 8-step programs across 16 groups. Program each oven for a completely different menu or synchronize them via the IOK platform for parallel high-volume production.
Power Requirement: The double stacked configuration consists of two independent units — each requires its own 208/240V, 30A NEMA 6-30P circuit (two separate circuits total). The counter surface must support approximately 317.4 lbs (2 × 158.7 lbs). Each outlet must be within 5.9 ft of its respective unit.
Ideal Applications
The FIT ST Silver Double Stacked is purpose-built for high-volume operations where a single oven is a throughput bottleneck and floor space is limited.
FIT ST Silver Double Stacked 990163-DBL Specifications
| Model | FIT ST SILVER DOUBLE STACKED 990163-DBL |
|---|---|
| Finish | Stainless Steel (AISI 430) |
| Configuration | 2 × FIT ST Silver Speed Ovens, Stacked |
| Cavities | 2 — Fully Independent |
| Magnetrons per Cavity | 2 × 1,100W (2,200W per cavity / 4,400W total) |
| Chamber per Cavity | 0.45 cu ft (13L) / 5.2" H × 12.4" W × 12.1" D |
| Exterior Dimensions (Stacked) | 33.4" H × 20.4" W × 27.4" D |
| Weight (Total) | ~317.4 lbs (2 × 158.7 lbs) |
| Temperature Range | 86°F to 536°F per cavity |
| Recipe Storage | Unlimited per cavity / 8 steps / 16 groups |
| Connectivity | Wi-Fi + RJ45 + USB per cavity |
| Voltage | 208/240V, Single Phase, 60Hz per oven |
| Power per Oven | 6.2 kW (208V) / 7.0 kW (240V) |
| Circuit Breaker | 30A per oven (2 circuits required) |
| Plug | NEMA 6-30P per oven |
| Ventilation | Certified Ventless — Removable Catalytic Converter per cavity |
| Included Accessories | 2 × (Aluminum Paddle, Solid Basket, Perforated Basket, USB Flash Drive, Cleaning Kit) |
| Optional Accessories | Wave Tray, Panini Press (purchased separately) |
| Certifications | cETLus, ETL-Sanitation, CE |
Frequently Asked Questions
Do both cavities in the FIT ST Silver Double Stacked operate independently?
Yes. Each cavity is a complete, independent FIT ST Silver speed oven with its own dual magnetrons, impingement system, touchscreen controls, connectivity, and power supply. They can run completely different recipes simultaneously with no interaction between cavities.
How many power outlets does the double stacked configuration require?
The double stacked configuration requires two separate 208/240V, 30A NEMA 6-30P circuits — one per oven. Each outlet must be within 5.9 ft of its respective unit. Two separate circuit breakers are required.
Does the FIT ST Silver Double Stacked require a ventilation hood?
No. Both units are certified ventless. Each cavity has its own removable catalytic converter to handle cooking odors and grease without any external ventilation. Two separate power circuits are required, but no hood installation is needed.
What is the difference between the Silver and Black double stacked versions?
The FIT ST Silver Double Stacked (990163-DBL) and the FIT ST Black Double Stacked (990188-DBL) are mechanically identical — same dual magnetrons, impingement system, connectivity, and performance. The only difference is the exterior finish: stainless steel (Silver) vs. black (Black).
Can the two cavities run completely different menus?
Yes. Each cavity independently stores unlimited recipes and can be programmed with entirely different menus. They can also be synchronized to the same menu via the IOK platform, or each managed independently by a different operator.
What are the space requirements for the double stacked configuration?
The stacked configuration measures 33.4"H × 20.4"W × 27.4"D with a total weight of approximately 317.4 lbs. The counter footprint is the same as a single FIT ST Silver — just taller at 33.4". The surface must support the full combined weight.
| Brand | Pratica Products Inc. |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | FIT ST SILVER DOUBLE STACKED 990163-DBL |
| Brand | Pratica Products Inc. |
| Weight | 414.40 lbs |
| Dimensions (HxWxD) | 16.70 x 20.40 x 27.40 inches |
| Height | 16.70 |
| Width | 20.40 |
| Depth | 27.40 |
| Capacity | .40 cubic feet capacity |
| Control Type | digital controls |
| Type | microwave, impinged & convection |
|
