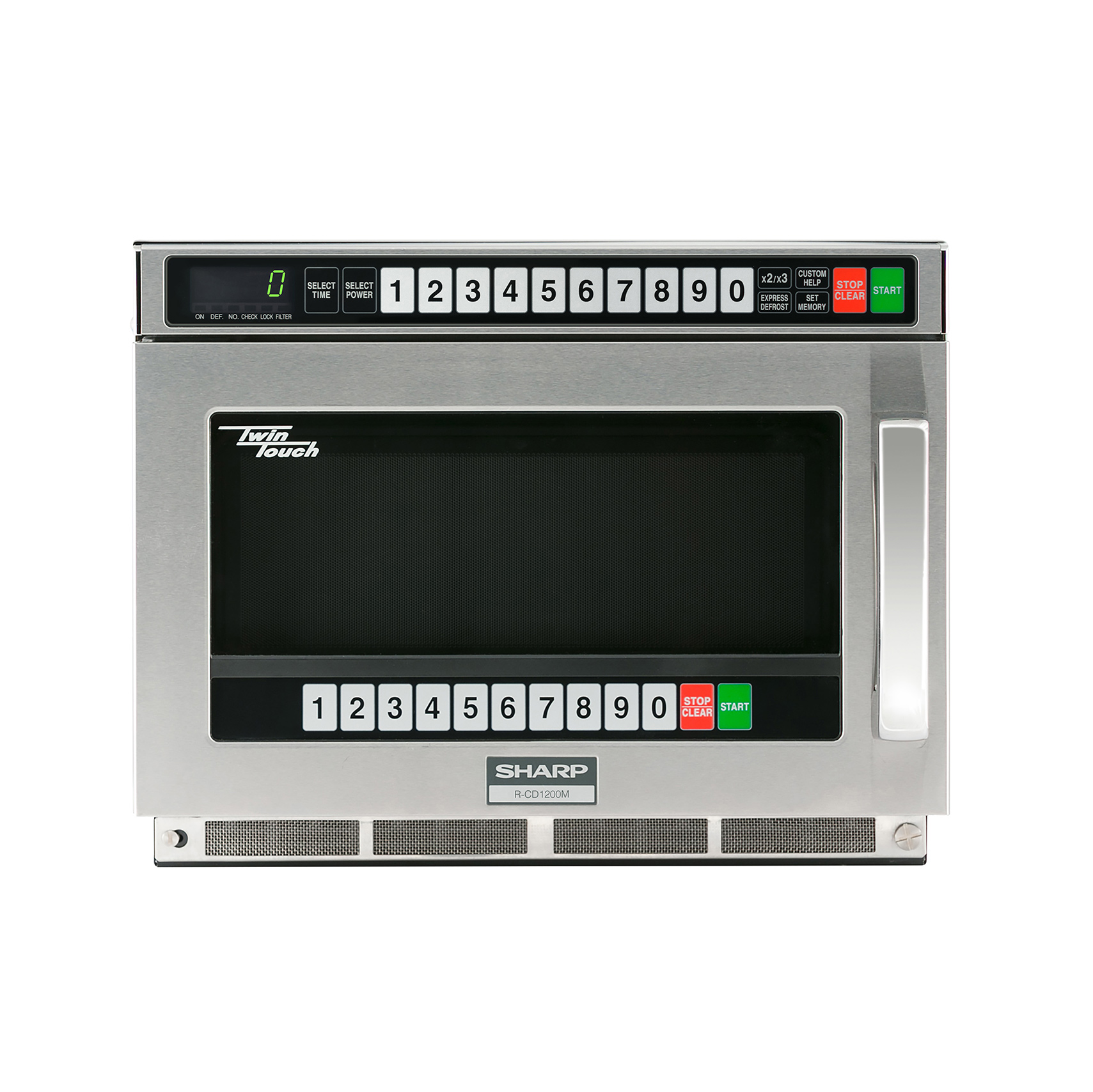

Sharp R-CD1200M TwinTouch Heavy Duty Commercial Microwave Oven 1200W 0.75 Cu Ft Dual Control Panels 100 Memories 120V
Sharp R-CD1200M — 1200W TwinTouch Microwave with Top & Bottom Control Panels
The Sharp R-CD1200M is the 120V model in Sharp's TwinTouch heavy duty commercial microwave line. Its defining feature is a pair of identical touch control panels, one at the top and one at the bottom, so staff of any height can program it whether the oven sits on a high shelf or the lower half of a stack, without reaching or using tools to press keys. Dual magnetrons with top and bottom feeding and motorized stirrer antennas deliver 1200 watts into a 0.75 cu. ft. stainless steel cavity that holds one 1/2 size pan in either direction or two 1/3 size pans. Up to 100 memories, 4-stage programming and Double/Triple Quantity pads handle high-volume menus on a 120V, 20-amp circuit.
Key Features of the R-CD1200M
TwinTouch ovens are built for kitchens that stack microwaves, where a single top-mounted panel is hard to reach and slows the line.
TwinTouch Dual Control Panels
Identical touch panels at the top and bottom of the door side let operators use whichever is at a comfortable height, on a high shelf or in a two-oven stack.
Dual Magnetrons, Top & Bottom Feed
Two magnetrons feed energy from above and below, with motorized stirrer antennas top and bottom for even heating across the 14" x 13" ceramic shelf.
100 Memories, 4-Stage Programs
Ten factory-programmed pads expand to 100 memories, each program can run up to four stages with its own power level and time, and Program Lock protects the settings.
Double & Triple Quantity Pads
The quantity pad adjusts a program for two or three servings using Sharp's adjustable multipliers rather than simply doubling the time.
Pan-Ready Cavity
The 14" x 7-1/8" x 13" stainless cavity takes one 1/2 size pan in either direction or two 1/3 size pans side by side for batch heating.
Self-Diagnostics & Counter Check
Built-in diagnostics flag faults and maintenance needs, a filter indicator reminds staff to clean the air intake filter, and Counter Check tracks how the oven is used.
Installation note: The R-CD1200M runs on single-phase 120V, 60 Hz and draws 16 amps (1.9 kW), so it needs a NEMA 5-20R receptacle on a 20-amp circuit. When stacking, use Sharp's stacking kit with two mounting plates and pair it only with another R-CD1200M, never more than two ovens high. Clean the air intake filter at least every two weeks of regular use.
Ideal Applications
Sharp built TwinTouch for high-volume operations where ovens are stacked or shelved and many people use them every shift.
R-CD1200M Specifications
| Model | Sharp R-CD1200M (RCD1200M) |
|---|---|
| Series | TwinTouch heavy duty commercial |
| Controls | Dual touch control panels (top and bottom) |
| Output Power (IEC) | 1200W |
| Magnetrons | Dual, top and bottom feed with motorized stirrer antennas |
| Power Levels | 11 (100% to 0% in 10% steps) |
| Memories | 100 (10 factory-programmed) |
| Special Features | 4-stage programming, Double/Triple Quantity, Express Defrost, Memory Check, Program Lock, Counter Check, self-diagnostics, filter indicator, lighted digital display |
| Capacity | 0.75 cu. ft.; one 1/2 size pan either direction or two 1/3 size pans |
| Cavity Dimensions (W x H x D) | 14" x 7-1/8" x 13" |
| Outside Dimensions (W x H x D) | 17-1/2" x 13-5/8" x 20-1/2" (22-9/16" deep with handle) |
| Depth With Door Open | 36-1/4" |
| Weight (Net / Shipping) | 65 lbs / 67 lbs |
| Construction | Stainless steel cabinet and cavity, ceramic shelf, see-through door |
| AC Power Required | 120V, 60 Hz, single phase, 1.9 kW, 16A |
| NEMA Plug / Receptacle | 5-20P / 5-20R (20A circuit) |
| Stacking | With R-CD1200M only, using stacking kit with two mounting plates |
| UPC | 074000617292 |
| Warranty | 3 years parts & labor, on site |
Frequently Asked Questions
Why does the Sharp R-CD1200M have two control panels?
TwinTouch ovens have identical touch panels at the top and bottom so staff of different heights can operate the oven on a high shelf or in a two-oven stack without reaching or using objects to press the keys.
What outlet does the R-CD1200M need?
It runs on single-phase 120V, 60 Hz, draws 16 amps at 1.9 kW, and uses a NEMA 5-20P plug, so it requires a 5-20R receptacle on a 20-amp circuit.
What pans fit inside the R-CD1200M?
The 0.75 cu. ft. cavity measures 14 inches wide, 7-1/8 inches high and 13 inches deep and holds one 1/2 size pan in either direction or two 1/3 size pans.
How many programs can the R-CD1200M store?
It stores up to 100 memories, with 10 factory-programmed. Each program can use up to four stages, and there are 11 power levels from 0% to 100%.
Can the R-CD1200M be stacked?
Yes, two high. Sharp's stacking kit uses two mounting plates, and the R-CD1200M may only be stacked with another R-CD1200M.
What warranty does Sharp provide on the R-CD1200M?
Sharp provides a 3-year parts and labor limited warranty, with service at the end user's place of business by a Sharp authorized servicer.
