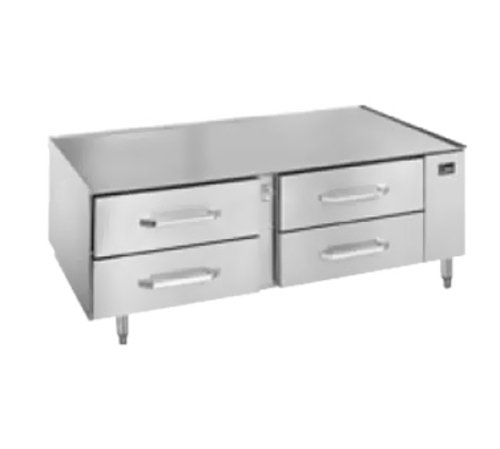

Randell 20042R Refrigerated Equipment Stand Two-Drawer Base

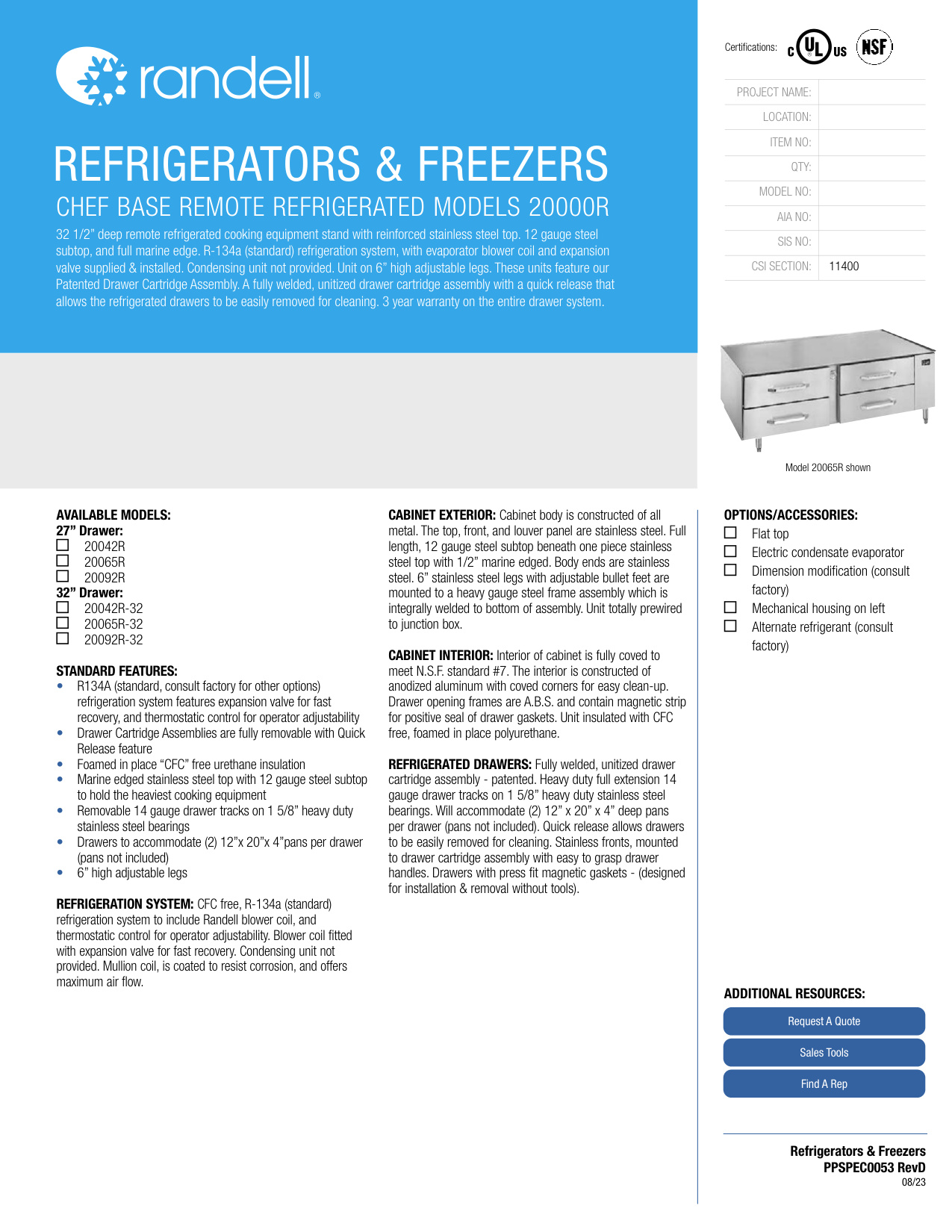

Certifications: PROJECT NAME: LOCATION: ITEM NO: QTY: REFRIGERATORS & FREEZERS MODEL NO: CHEF BASE REMOTE REFRIGERATED MODELS 20000R AIA NO: 32 1/2” deep remote refrigerated cooking equipment stand with reinforced stainless steel top. 12 gauge steel SIS NO: subtop, and full marine edge. R-134a (standard) refrigeration system, with evaporator blower coil and expansion 11400 CSI SECTION: valve supplied & installed. Condensing unit not provided. Unit on 6” high adjustable legs. These units feature our Patented Drawer Cartridge Assembly. A fully welded, unitized drawer cartridge assembly with a quick release that allows the refrigerated drawers to be easily removed for cleaning. 3 year warranty on the entire drawer system. SHORT FORM SPEC: Randell LPRES/RES series model refrigerated chef stand with electronically controlled natural R290 refrigeration system. Includes one-piece stainless steel 1/2” high single thickness marine top reinforced with 12 gauge steel sub-top. Drawers to be fully welded, cartridge assembly with quick release to allow easy removal of drawers without tools. Drawer system includes 3 year warranty on the entire assembly. Base interior constructed of anodized aluminum with coved corners, drawer opening frames shall be high impact ABS plastic and be cooled with a blower coil located behind the mullion. Drawers have stainless steel fronts with easy to grasp handles and press-fit magnetic gaskets. Unit to be shipped on heavy duty casters mounted to full length rails which allows casters to be relocated to avoid floor obstacles. Model 20065R shown AVAILABLE MODELS: CABINET EXTERIOR: Cabinet body is constructed of all OPTIONS/ACCESSORIES: 27” Drawer: metal. The top, front, and louver panel are stainless steel. Full Flat top 20042R length, 12 gauge steel subtop beneath one piece stainless Electric condensate evaporator 20065R steel top with 1/2” marine edged. Body ends are stainless Dimension modification (consult 20092R steel. 6” stainless steel legs with adjustable bullet feet are factory) 32” Drawer: mounted to a heavy gauge steel frame assembly which is Mechanical housing on left 20042R-32 integrally welded to bottom of assembly. Unit totally prewired 20065R-32 to junction box. Alternate refrigerant (consult 20092R-32 factory) CABINET INTERIOR: Interior of cabinet is fully coved to STANDARD FEATURES: meet N.S.F. standard #7. The interior is constructed of • R134A (standard, consult factory for other options) anodized aluminum with coved corners for easy clean-up. refrigeration system features expansion valve for fast Drawer opening frames are A.B.S. and contain magnetic strip recovery, and thermostatic control for operator adjustability for positive seal of drawer gaskets. Unit insulated with CFC • Drawer Cartridge Assemblies are fully removable with Quick free, foamed in place polyurethane. Release feature REFRIGERATED DRAWERS: Fully welded, unitized drawer • Foamed in place “CFC” free urethane insulation cartridge assembly - patented. Heavy duty full extension 14 • Marine edged stainless steel top with 12 gauge steel subtop gauge drawer tracks on 1 5/8” heavy duty stainless steel to hold the heaviest cooking equipment bearings. Will accommodate (2) 12” x 20” x 4” deep pans • Removable 14 gauge drawer tracks on 1 5/8” heavy duty per drawer (pans not included). Quick release allows drawers stainless steel bearings to be easily removed for cleaning. Stainless fronts, mounted • Drawers to accommodate (2) 12”x 20”x 4”pans per drawer to drawer cartridge assembly with easy to grasp drawer (pans not included) handles. Drawers with press fit magnetic gaskets - (designed • 6” high adjustable legs for installation & removal without tools). REFRIGERATION SYSTEM: CFC free, R-134a (standard) refrigeration system to include Randell blower coil, and thermostatic control for operator adjustability. Blower coil fitted with expansion valve for fast recovery. Condensing unit not provided. Mullion coil, is coated to resist corrosion, and offers maximum air flow. ADDITIONAL RESOURCES: Request A Quote Sales Tools Find A Rep Refrigerators & Freezers PPSPEC0053 RevD 08/23 20000R LEGEND FOR LEGEND FOR LEGEND FOR MODEL # 20065R MODEL # 20042R MODEL # 20092R AFF = ABOVE FIXED FLOOR AFF = ABOVE FIXED FLOOR AFF = ABOVE FIXED FLOOR JUNCTION BXO 14" AFF JUNCTION BXO 14" AFF JUNCTION BXO 14" AFF J J J 115V/60Hz/1Ph/3A 115V/60Hz/1Ph/6A 115V/60Hz/1Ph/4A CHOOSE REFRIGERANT CHOOSE REFRIGERATN CHOOSE REFRIGERANT R-22 REFRIG. R-22 REFRIG. R-22 REFRIG. R404 REFRIG. R404 REFRIG. R404 REFRIG. R134A REFRIG. R134A REFRIG. R134A REFRIG. CONDENSTAE DRAIN 1/2" CONDENSTAE DRAIN 1/2" OC OC CONDENSTAE DRAIN 1/2" OC I.D. VINYLT UBING I.D. VINYLT UBING I.D. VINYLT UBING 25" 25" 25" (2) SETS OF CARTRIDGE STYLE DARWERS, EACH DRAWER (1) SET OF CARTRIDGE STYLE DARWERS, EACH DRAWER (3) SETS OF CARTRIDGE STYLE DARWERS, EACH DRAWER TO HOLD (2) 12" X 20" X 4"DPP ANS TO HOLD (2) 12" X 20" X 4"DPP ANS TO HOLD (2) 12" X 20" X 4"DPP ANS (PANS NOT PROVIDED) (PANS NOT PROVIDED) (PANS NOT PROVIDED) THERMOMETER THERMOMETER THERMOMETER 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 27" REFRIG. 92" 42" 65" OC J 26" MECH. HSG. 6" 32.5" 888-994-7636, unifiedbrands.net © 2023 Electrolux Professional, Inc. All Rights Reserved. Information known to be correct at time of creation. Please reference our website for the most updated product information and specifications. 20000R-32 LEGEND FOR LEGEND FOR LEGEND FOR MODEL # 20065R-32 MODEL # 20042R-32 MODEL # 20092R-23 AFF = ABOVE FIXED FLOOR AFF = ABOVE FIXED FLOOR AFF = ABOVE FIXED FLOOR JUNCTION BXO 14" AFF JUNCTION BXO 14" AFF JUNCTION BXO 14" AFF J J J 115V/60Hz/1Ph/A3 115V/60Hz/1Ph/3A 115V/60Hz/1Ph/4A CHOOSE REFRIGERATN CHOOSE REFRIGERANT CHOOSE REFRIGERATN R-22 REFRIG. R-22 REFRIG. R-22 REFRIG. R404 REFRIG. R404 REFRIG. R404 REFRIG. R134A REFRIG. R134A REFRIG. R134A REFRIG. CONDENSTAE DRAIN 1/2" CONDENSTAE DRAIN 1/2" OC OC CONDENSTAE DRAIN 1/2" OC I.D. VINYLT UBING I.D. VINYLT UBING I.D. VINYLT UBING 25" 25" 25" (1) SET OF CARTRIDGE STYLE DARWERS, EACH (2) SETS OF CARTRIDGE STYLE DARWERS, EACH DRAWER DRAWER TO HOLD (2) 12" X 20" X 4"DPPA NS (3) SETS OF CARTRIDGE STYLE DARWERS, EACH DRAWER TO HOLD (2) 12" X 20" X 4"DPPA NS (PANS NOT PROVIDED) TO HOLD (2) 12" X 20" X 4"DPPA NS (PANS NOT PROVIDED) (PANS NOT PROVIDED) THERMOMETER THERMOMETER THERMOMETER 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 32" REFRIG. 107" 47" 75" OC J 26" MECH. HSG. 6" 32.5" 888-994-7636, unifiedbrands.net © 2023 Electrolux Professional, Inc. All Rights Reserved. Information known to be correct at time of creation. Please reference our website for the most updated product information and specifications.
