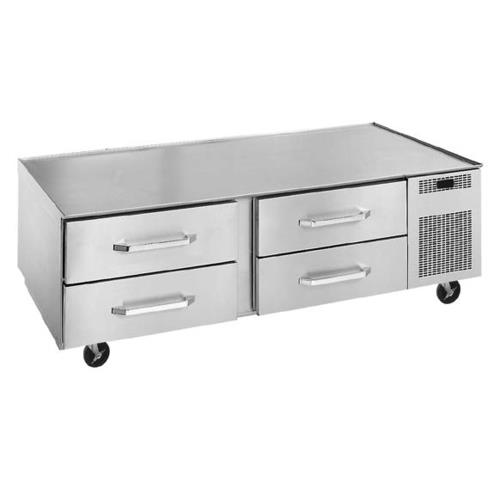

Randell LPRES1L3-105C4 Refrigerated Equipment Stand 105-Inch Length

Randell LPRES1L3-105C4 Equipment Stand, Refrigerated Base

The Randell LPRES1L3-105C4 is a Refrigerated Equipment Stand designed to support the demanding operations of commercial kitchens and food service environments. This versatile unit provides a robust, chilled base that can accommodate various cooking equipment on its stainless steel marine edge top. Ideal for chefs and kitchen operators who require reliable refrigeration at their fingertips, this equipment stand integrates seamlessly into high-volume kitchens, ensuring ingredients and prepared items are stored at optimal temperatures.

Constructed with durability in mind, the Randell LPRES1L3-105C4 features a one-piece stainless steel top with a 12 gauge sub-top for enhanced support, capable of holding up to 225 lbs per foot of cooking equipment. The cabinet body is made from stainless steel, with an anodized aluminum interior that includes coved corners to meet NSF standards. The unit's fully welded drawer cartridge assembly allows for easy removal and cleaning, with drawers featuring stainless steel fronts, magnetic gaskets, and easy-to-grasp handles. The refrigeration system is self-contained, using an energy-efficient R290 compressor mounted on the left side, with electronic controls to maintain precise temperature regulation.

Operationally, the LPRES1L3-105C4 offers a capacity of six drawers, each capable of holding two 12" x 20" x 4" deep pans, providing ample refrigerated storage space. The unit operates on a 115v/60/1-ph power supply, drawing 7 amps, and uses a NEMA 5-15P plug. The refrigeration system is designed for front breathing, allowing it to be placed against walls or mounted on curbs without special ventilation requirements. This model's heavy-duty casters facilitate easy mobility and positioning, making it adaptable to various kitchen layouts.

Specifications

• Exterior Dimensions: 105.00 x 23.50 x 32.50 inches
• Weight: 665.00 lbs
• Refrigerant: R290 Hydrocarbon
• Voltage: 115v/60/1-ph
• Amperage: 7 amps
• Plug Type: NEMA 5-15P
• Drawer Capacity: (6) 27" drawers
• Pan Capacity: (12) 12" x 20" x 4" deep pans
• Construction: Stainless steel exterior, aluminum interior
• Insulation: CFC-free foamed in place polyurethane

Applications

• In full-service restaurants, the Randell LPRES1L3-105C4 keeps ingredients at safe temperatures directly under cooking equipment, streamlining prep work.
• Quick-service kitchens benefit from the unit's compact footprint and refrigerated storage, ensuring fast access to chilled components during peak hours.
• Hotel banquet operations use the refrigerated stand to store prepared dishes and ingredients, maintaining quality and freshness for large events.
• In hospital and institutional kitchens, the equipment stand aids in organizing and cooling perishable items, supporting efficient meal preparation.
• School cafeterias utilize the refrigerated base to store bulk ingredients and pre-portioned meals, optimizing space and maintaining safety standards.

Certifications

Warranty

The Randell LPRES1L3-105C4 comes with a 1-year parts and labor warranty, with an optional 5-year warranty available for the compressor.
