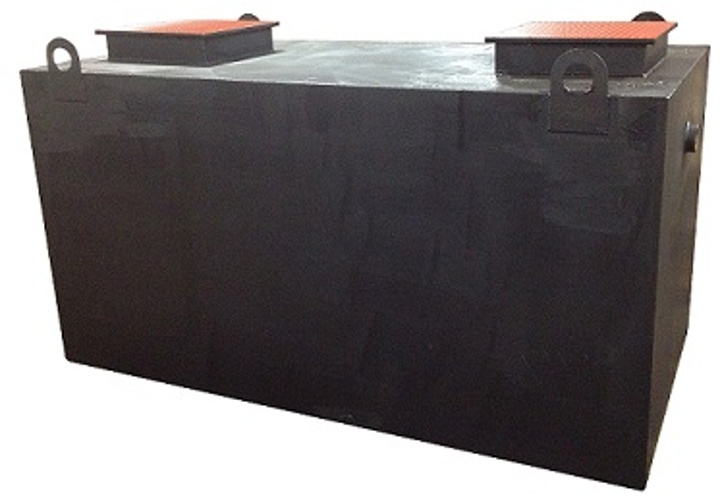

Rockford RGI-1250 Gravity Grease Interceptor – 1,250 Gallon, 6,300 lb, 800 GPM, H20 Rated
Rockford RGI-1250 — Gravity Grease Interceptor, 1,250 Gallon / 6,300 lb / 800 GPM
The Rockford Separators RGI-1250 is a high-volume, two-compartment, all-welded steel gravity grease interceptor built for large commercial food service operations requiring capacity between the RGI-1000 and RGI-1500. With a 1,250-gallon liquid holding volume, 6,300 lb greasy sludge capacity, and a cover rated for H20 heavy truck traffic, the RGI-1250 handles up to 800 GPM intermittent peak flow. Two independent 6" manways allow compartment-by-compartment service and inspection. All-welded steel with bituminous exterior coating. Built to IAPMO/ANSI Z1001-2014. Custom-built to order in Rockford, IL — non-returnable.
Free Freight — Lower 48 States: The RGI-1250 ships with free freight to any address in the contiguous United States. Lift gate service is required for delivery — please ensure a lift gate is requested at time of order.
Key Features of the Rockford RGI-1250
Custom-Built to Order — Non-Returnable: The RGI-1250 is fabricated to order. Confirm capacity, manway height, pipe configuration, and local plumbing code requirements with your engineer or plumbing inspector before placing your order. Returns are not accepted on custom units.
RGI-1250 Specifications
| Model | RGI-1250 |
|---|---|
| Series | RGI — Gravity Grease Interceptor |
| Liquid Holding Capacity | 1,250 Gallons |
| Greasy Sludge Capacity | 6,300 lb |
| Flow Rate (Intermittent) | 800 GPM |
| Inlet / Outlet Connection | 4" Threaded |
| Vent Connection | 3" (Dual) |
| Manways | Two 6" Tall (Standard — Custom Height Available) |
| Width (Front to Back) | 60" |
| Length (Side to Side) | 102" |
| Height (Floor to Top) | 60" |
| Top to Center of Inlet | 14" |
| Top to Center of Outlet | 16" |
| Bottom to Center of Inlet | 52" |
| Bottom to Center of Outlet | 50" |
| Approx. Ship Weight | 2,500 lb |
| Body Construction | All-Welded Steel, Bituminous Coating (Exterior) |
| Cover | 3/8" Nonskid Diamond Treadplate, Stainless Flat-Head Screws |
| Gasket | Heavy-Duty Leak-Proof |
| Load Rating | H20 — Heavy Truck Traffic |
| Lifting | 4 Lifting Lugs Supplied |
| Construction Standard | IAPMO/ANSI Z1001-2014 |
| Shipping | Free Freight — Contiguous 48 States (Lift Gate Required) |
| Installation | Flush-with-Grade or Above-Ground |
| Order Notes | Custom-Built to Order — Non-Returnable |
| Manufacturer | Rockford Separators, Rockford, IL |
Frequently Asked Questions
What is the greasy sludge capacity of the RGI-1250?
The RGI-1250 holds 6,300 lb of greasy sludge across its 1,250-gallon two-compartment liquid volume — designed for extended service intervals in very high-volume commercial food service operations.
How does the two-compartment design benefit FOG separation?
The first compartment captures the bulk of grease and solids as the high-velocity kitchen discharge slows down. The second compartment provides additional gravity separation before the clarified effluent exits to the sewer — more effective than a single-chamber unit of equal volume.
Can the RGI-1250 handle heavy truck traffic?
Yes. The 3/8" nonskid diamond treadplate cover is H20 load rated — rated for commercial and highway truck traffic. The unit can be installed flush with grade in parking lots, loading areas, and service drives where vehicles cross the cover.
Is the RGI-1250 returnable?
No. The RGI-1250 is custom-built to order and non-returnable. Confirm capacity, manway height, pipe sizes, and local plumbing code requirements with your engineer or plumbing inspector before ordering.
Can the manway height be customized?
Yes. The standard RGI-1250 ships with 6" tall manways. If the unit will be buried deeper or installed under a paved overlay, specify the required manway height at time of order.
What construction standard does the RGI-1250 meet?
The RGI-1250 is built to IAPMO/ANSI Z1001-2014 — the nationally recognized construction standard for fabricated gravity grease interceptors, referenced by commercial plumbing codes across the United States.
