Gravity Grease Interceptor — RGI Series

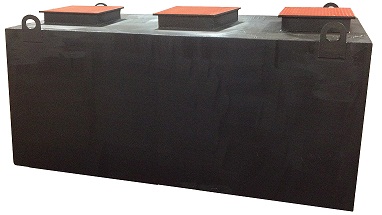

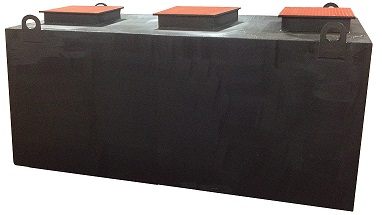

Rockford RGI-2000 — Gravity Grease Interceptor, 2,000 Gallon / 10,080 lb / Three 6" Manways

The Rockford Separators RGI-2000 is the largest standard model in the RGI Series — a three-compartment, all-welded steel gravity grease interceptor engineered for the most demanding commercial and institutional food service applications. With a 2,000-gallon liquid holding volume and 10,080 lb greasy sludge capacity, the RGI-2000 delivers maximum FOG retention between service pumpouts. Three independent 6" manways provide compartment-by-compartment access — each chamber can be individually inspected and pumped, minimizing service time and disruption. The 3/8" nonskid treadplate cover is rated for H20 heavy truck traffic. All-welded steel with bituminous exterior coating. Built to IAPMO/ANSI Z1001-2014. Custom-built to order in Rockford, IL — non-returnable.

🚚

Free Freight — Lower 48 States: The RGI-2000 ships with free freight to any address in the contiguous United States. Lift gate service is required for delivery — please ensure a lift gate is requested at time of order.

2,000 gal
Liquid Holding Capacity
10,080 lb
Greasy Sludge Capacity
H20
Heavy Truck Traffic Rated
3
6" Manways

Key Features of the Rockford RGI-2000

2,000-Gallon Three-Compartment TankThree-stage gravity separation across a 2,000-gallon liquid volume maximizes FOG retention and dwell time. The three-chamber design provides the most thorough separation efficiency of any standard RGI model — ideal for large-scale food service campuses, commissaries, and multi-outlet facility groups.
Three Independent 6" ManwaysEach of the three compartments has its own 6" manway for independent access during inspection and pumpout — service crews can monitor sludge levels per chamber, pump individual compartments, and perform maintenance without disturbing the rest of the unit.
10,080 lb Greasy Sludge CapacityThe largest standard greasy sludge retention of any 4" RGI model — 10,080 lb of retained FOG across the three-compartment volume, providing very long service intervals between pumpouts for the highest food waste generators.
H20 Heavy Truck Traffic Cover3/8" nonskid diamond treadplate cover is H20 load rated — suitable for flush-with-grade installation in parking lots, loading docks, and service drives where commercial vehicles cross the lid.
Bituminous Exterior CoatingHeavy-duty bituminous coating on the exterior of the all-welded steel body protects against soil moisture and environmental corrosion over the unit's long service life in buried or grade-level installations.
IAPMO/ANSI Z1001-2014 StandardBuilt to the IAPMO/ANSI Z1001-2014 construction standard for fabricated gravity grease interceptors — the nationally recognized benchmark referenced in commercial plumbing codes for large-format interceptor specification.
⚠️

Custom-Built to Order — Non-Returnable: The RGI-2000 is fabricated to order. Confirm capacity, manway height, pipe configuration, and local plumbing code requirements with your engineer or plumbing inspector before placing your order. Returns are not accepted on custom units.

RGI-2000 Specifications

ModelRGI-2000
SeriesRGI — Gravity Grease Interceptor
Liquid Holding Capacity2,000 Gallons
Greasy Sludge Capacity10,080 lb
Inlet / Outlet Connection4" Threaded
Vent Connection3" (Dual)
ManwaysThree 6" Tall (Standard — Custom Height Available)
Width (Front to Back)72"
Length (Side to Side)144"
Height (Floor to Top)60"
Top to Center of Inlet14"
Top to Center of Outlet16"
Bottom to Center of Inlet52"
Bottom to Center of Outlet50"
Approx. Ship Weight3,100 lb
Body ConstructionAll-Welded Steel, Bituminous Coating (Exterior)
Cover3/8" Nonskid Diamond Treadplate, Stainless Flat-Head Screws
GasketHeavy-Duty Leak-Proof
Load RatingH20 — Heavy Truck Traffic
Lifting4 Lifting Lugs Supplied
Construction StandardIAPMO/ANSI Z1001-2014
ShippingFree Freight — Contiguous 48 States (Lift Gate Required)
InstallationFlush-with-Grade or Above-Ground
Order NotesCustom-Built to Order — Non-Returnable
ManufacturerRockford Separators, Rockford, IL

Frequently Asked Questions

Why does the RGI-2000 have three manways?

The RGI-2000 is a three-compartment interceptor. Each compartment has its own 6" manway for independent inspection and service access — maintenance crews can monitor sludge levels in each chamber separately and pump compartments individually without opening the entire unit. The three-compartment design also provides staged, three-step FOG separation across the full 2,000-gallon volume.

What is the greasy sludge capacity of the RGI-2000?

The RGI-2000 holds 10,080 lb of greasy sludge across its 2,000-gallon three-compartment liquid volume — the largest standard greasy sludge retention capacity in the 4" connection RGI lineup, designed for maximum service intervals in the highest-volume commercial food service operations.

Can the RGI-2000 handle heavy truck traffic?

Yes. The 3/8" nonskid diamond treadplate cover is H20 load rated — rated for commercial and highway truck traffic. The unit can be installed flush with grade in parking lots, loading areas, and service drives where vehicles cross the cover.

Is the RGI-2000 returnable?

No. The RGI-2000 is custom-built to order and non-returnable. Confirm capacity, manway height, pipe sizes, and local plumbing code requirements with your engineer or plumbing inspector before ordering.

Can the manway height be customized?

Yes. The standard RGI-2000 ships with 6" tall manways. If the unit will be buried deeper or installed under a paved overlay, specify the required manway height at time of order. All three manways can be specified at the same custom height.

What construction standard does the RGI-2000 meet?

The RGI-2000 is built to IAPMO/ANSI Z1001-2014 — the nationally recognized construction standard for fabricated gravity grease interceptors, referenced by commercial plumbing codes across the United States.
