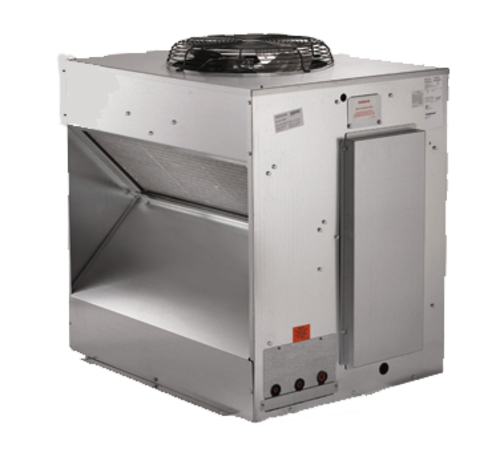

Scotsman ECC0800-3 Remote Condenser Unit

The Scotsman ECC0800-3 is a remote condenser unit designed for use with Prodigy® Eclipse® ice makers. It features a one-piece design that simplifies installation and servicing. This unit is engineered to dissipate heat away from the ice machine, optimizing ice production and reducing the load on air conditioning systems. It operates quietly, making it suitable for dining and working environments. The unit is capable of functioning in outdoor temperatures ranging from -20°F to 120°F.

Specifications

Model: ECC0800-3
Weight: 310.00 lbs
Dimensions: 39.00 x 40.00 x 32.00 in
Electrical: 208-230/60/3-ph
Amperage: 10.6 amps

850 lb/24 hours Ice Production

-20°F to 120°F Operating Temperature Range

Applications

Supporting ice production in restaurant kitchens
Enhancing ice availability in hotel beverage stations
Facilitating ice supply in commercial catering operations

Certifications

cULus Listed

This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.

From The Manufacturer

Remote Condensing unit for Prodigy® Eclipse® Ice Maker, 850 lb/24 hours production, 208-230/60/3-ph, 10.6 amps, cULus
